HEATING SYSTEM TROUBLESHOOTING CAT. U, NO. 93-04
Article Text (p. 7)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, August 27, 2001 06:36AM
NOTE: Do not perform the above checks with the engine running.
Item 3 - Link and Wire Adjustment
1. Remove the kick panel on the passenger side of the vehicle.
2. Remove the glove box.
3. Place the transmission in park or set manual transmission in
neutral and set the parking brake.
4. Start the engine and allow to idle.
5. Set the climate controls to the following settings:
Temperature ........... Max. hot
Recirculation-fresh ... fresh
6. Using Figs. 3 and 4 for reference, ensure the linkages are
adjusted properly.

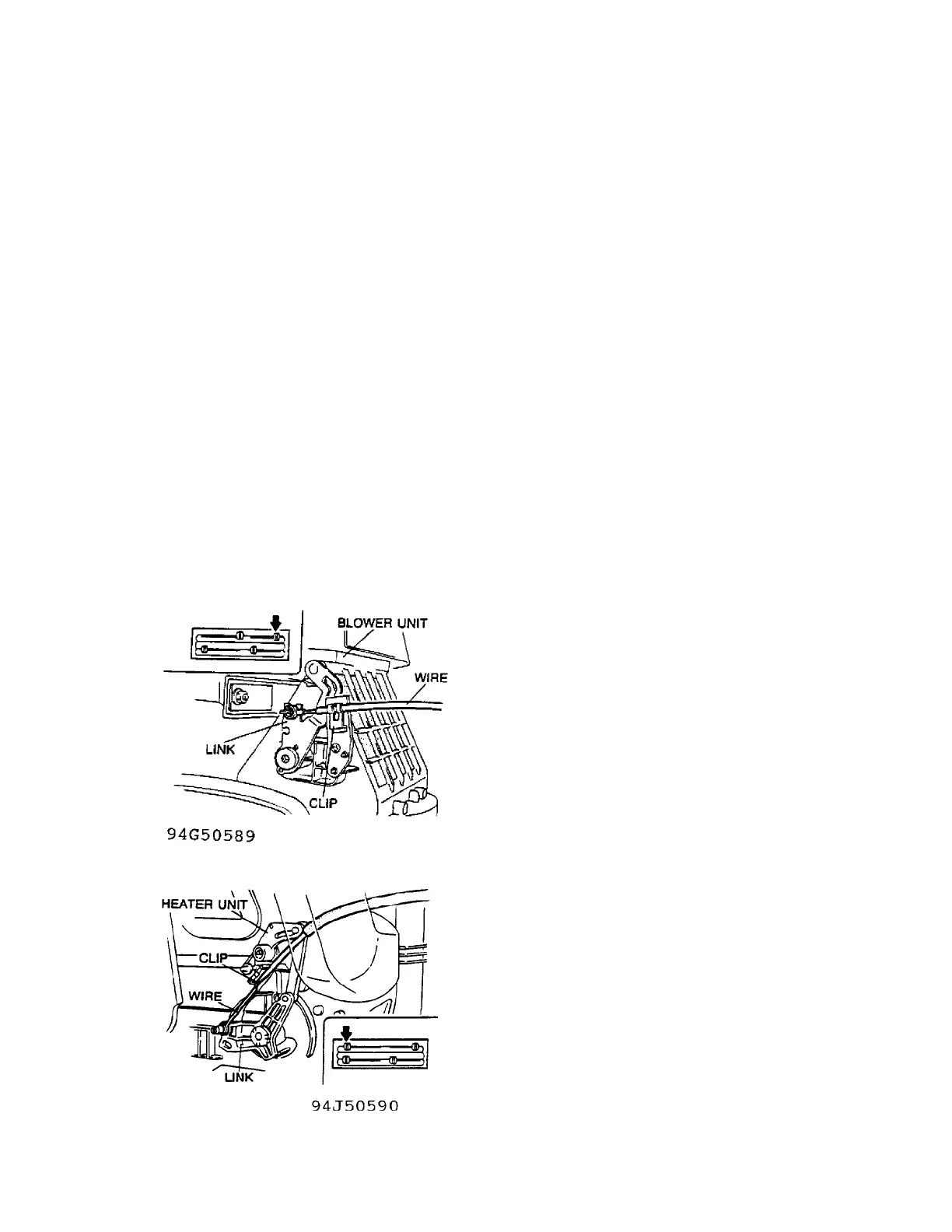

Fig. 3: Blower Unit Linkage Adjustment
Fig. 4: Heater Unit Linkage Adjustment
Item 4 - Coolant By-passing the Thermostat/Thermostat Stuck
