MANUAL TRANSMISSION SHIM ADJUSTMENTS CAT. J, NO. 001/90
Article Text (p. 5)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 08, 2001 09:44AM

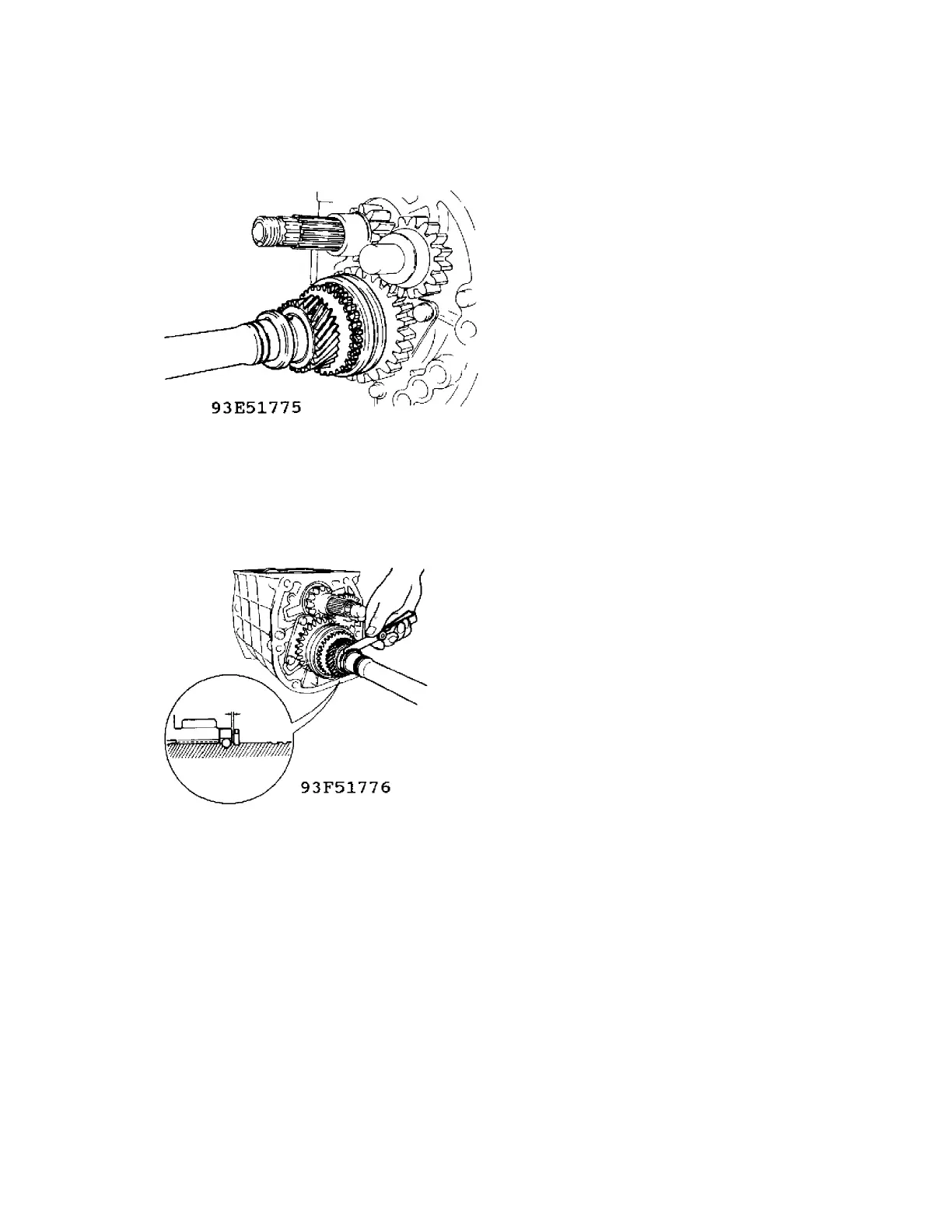

Fig. 6: Retaining Ring Installation (R-Type)
Note: If the "C" washers are not pushed fully forward in the
mainshaft groove the measurement will be incorrect.
4. While pushing the "C" washers forward, measure the clearance
between the "C" washers and thrust waster. (See Fig. 7).
Fig. 7: Measuring Clearance Between "C" Washers & Thrust Washer
(R-Type)
Standard Clearance: Refer to the appropriate service information for
the vehicle being repaired.
MAINSHAFT REAR BEARING
1. Drive on the mainshaft rear bearing using a suitable pipe, fully
seating it against the front "C" washers. See Fig. 8.
2. Install the original "C" washers and hold them with the retaining
ring.
