STARTER - HITACHI/MITSUBISHI
Article Text (p. 3)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, August 26, 2001 03:31PM

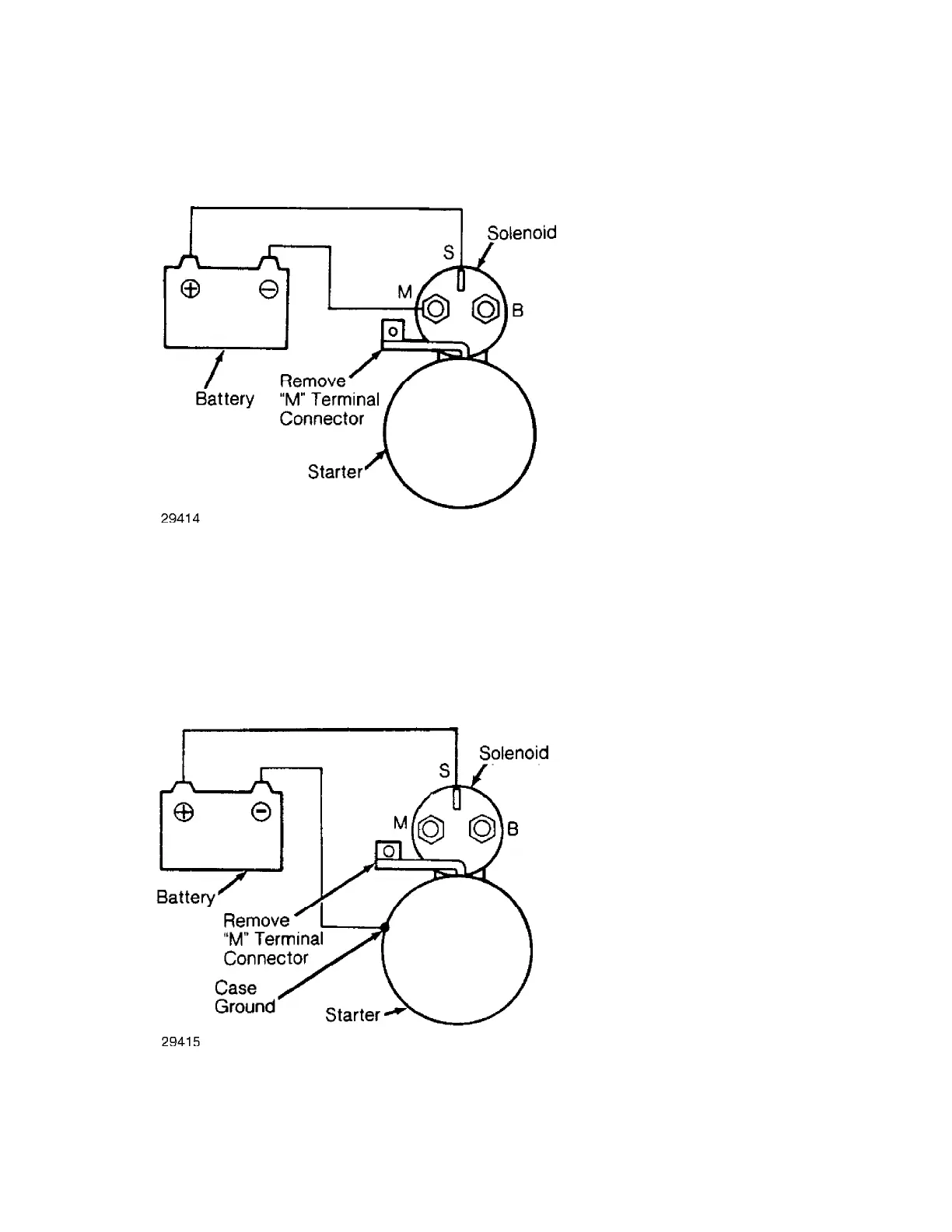

Fig. 1: Connections for Conducting Solenoid Pull-In Test
Remove solenoid-to-starter lead before testing.
2) If pinion moves outward (or plunger is pulled-in),
pull-in coil is good. If not, replace magnetic switch.
Hold-In Coil Test
1) Connect a jumper wire between the "M" (MT) terminal and
solenoid case. Apply 8 volts to "S" terminal to pull in the plunger.
See Fig. 2. Disconnect lead to "M" (MT) terminal.
Fig. 2: Connections for Conducting Solenoid Hold-In Test
Make tests in less than 10 seconds to avoid solenoid damage.
2) If pinion remains out (plunger is pulled-in), hold-in
coil is good. If not, replace magnetic switch.
Return Test
