Mazda 1983 RX7 - Temperature Selector; Climate Control System Layout

HEATING SYSTEM TROUBLESHOOTING CAT. U, NO. 93-04
Article Text (p. 10)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, August 27, 2001 06:36AM

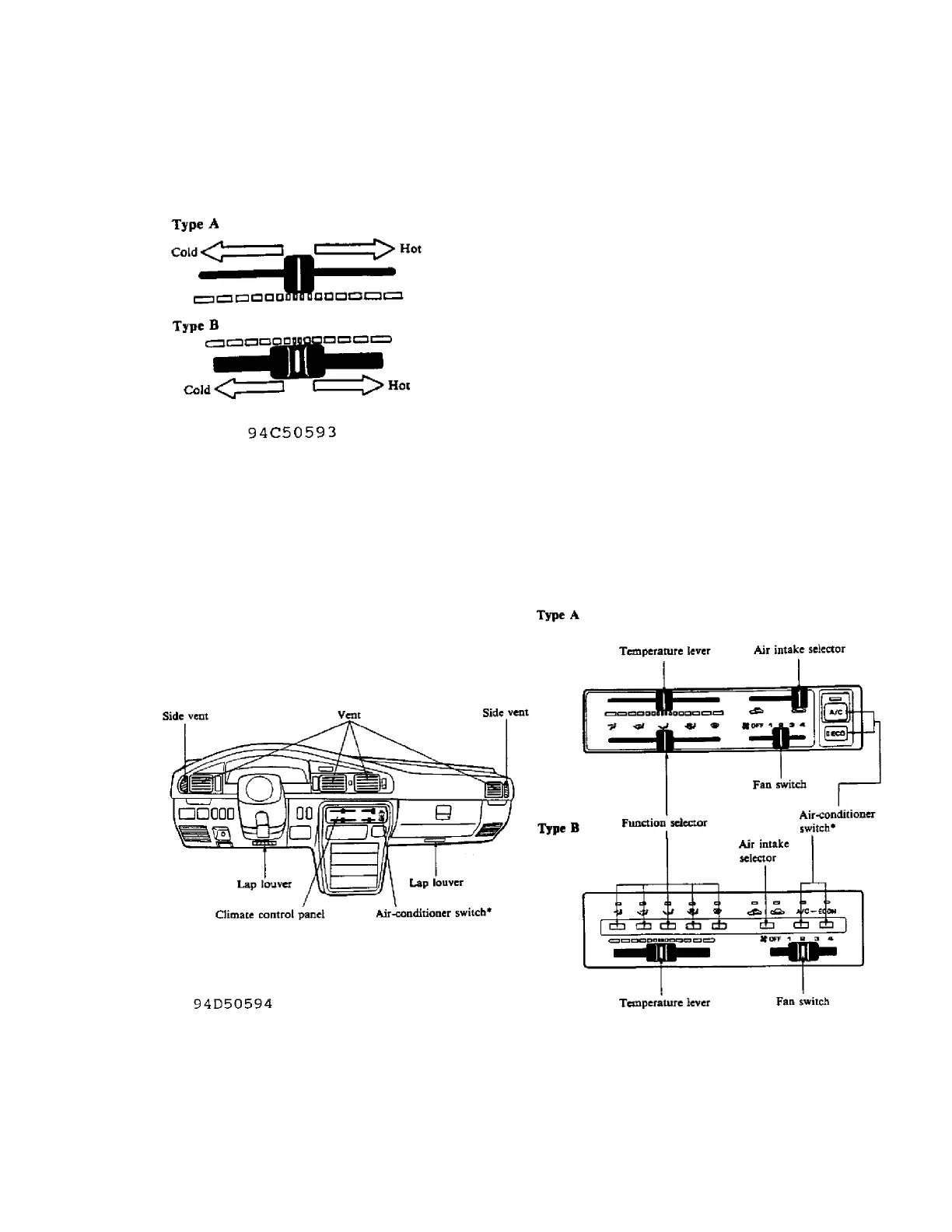

Fig. 7: Temperature Selector (Type A and B)
Climate Control System
Shown in Fig. 8 is a typical climate control system. Detailed
descriptions of each function are found under the heading "Driving
Your Mazda" in the appropriate Owners Manual.
Fig. 8: Climate Control System Layout
END OF ARTICLE
