MAINTENANCE INFORMATION
Article Text (p. 17)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, August 26, 2001 06:13PM
System, AAS System (Coupe)
22 - 20 Amp
Audio System
23 - 60 Amp
BTN, Light Switch, Heater, A/C
24 - 30 Amp
Headlights
25 - 30 Amp
Headlight Retractor
26 - 30 Amp
EGI & Emission System
27 - 100 Amp
Starter & Charge System
28 - 60 Amp
Anti-Lock Brake System
29 - 30 Amp
Back-Up Battery (Air Bag)
FUSE PANEL & FUSE BLOCK IDENTIFICATION (1991)

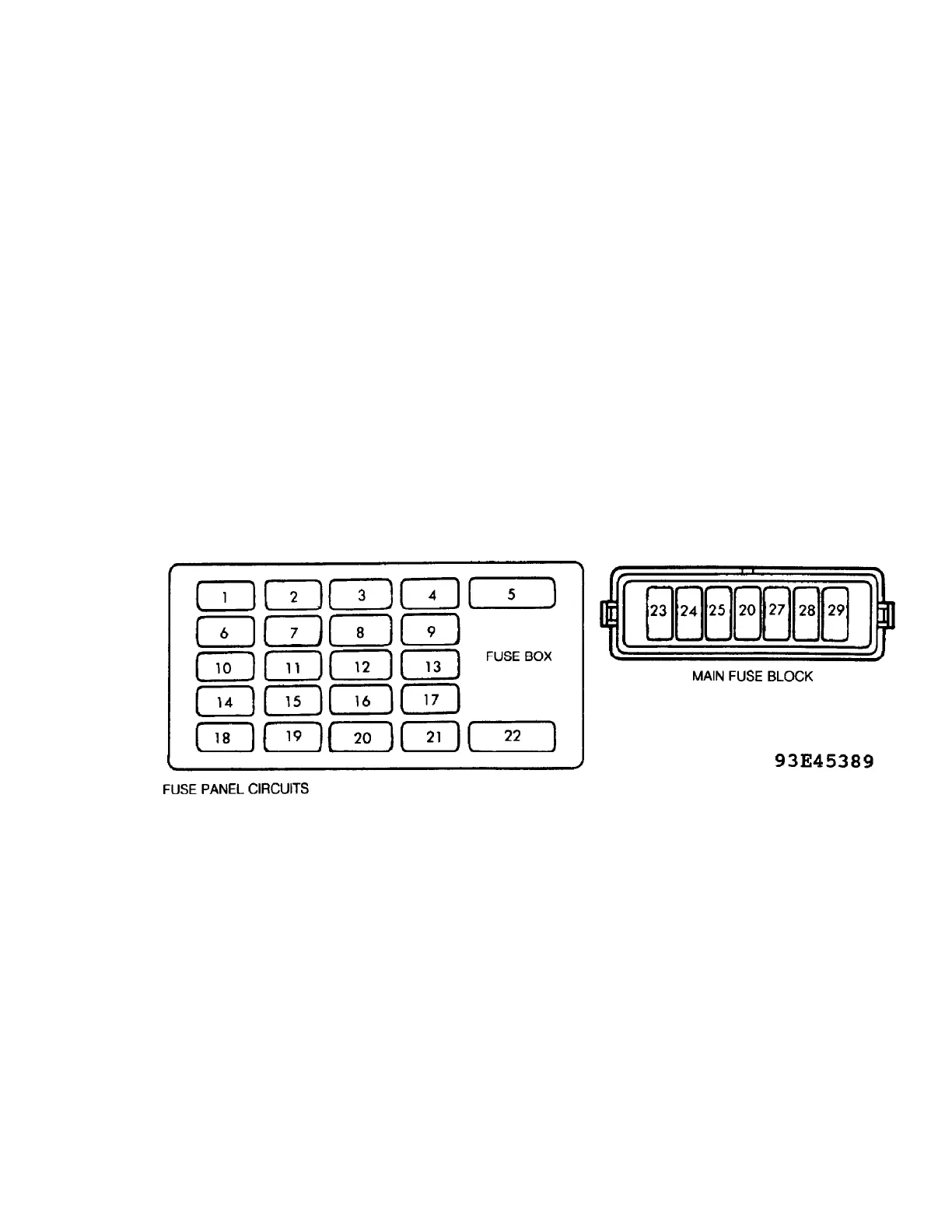

Fig. 9: Fuse Panel & Fuse Block Identification (1991)
Courtesy of Mazda Motor of America, Inc.
Fuse & Circuit Breaker Identification
1 - 20 Amp
Audio System
2 - 15 Amp
Sun Roof, Anti-Lock Brake System
2 - 15 Amp (Convertible)
Air Bag, Diagnostic Module
3 - 10 Amp
Rear Window Defogger, Starter, Charge System, Shift Lock
System, ECAT, Power Antenna, Horn, Stoplight, Power Steering
4 - 20 Amp
Stoplight, Cruise Control System
5 - 30 Amp
Heater & A/C
6 - 10 Amp
Clock, Remote Control Mirror, Heater & A/C
