A/C LITE DIM/NOT ON - WIRE HARNESS CONNECTOR CAT. 16, NO. 008/85
Article Text
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Monday, August 27, 2001 06:35AM
ARTICLE BEGINNING
TECHNICAL SERVICE BULLETIN
AIR CONDITIONER INDICATOR LIGHT
Models RX-7
Bulletin No. 008/85
Category 16
Date 7/16/85
Symptom No A/C Light
DESCRIPTION
Some air conditioner kits manufactured by Lone Star Manufacturing
Company may contain incorrectly assembled harness connectors. If the
indicator light on the air conditioner switch does not illuminate. or
illuminates dimly after installation, the problem may be due to
incorrectly assembled G-03 or G-16 connectors. See Fig. 1.

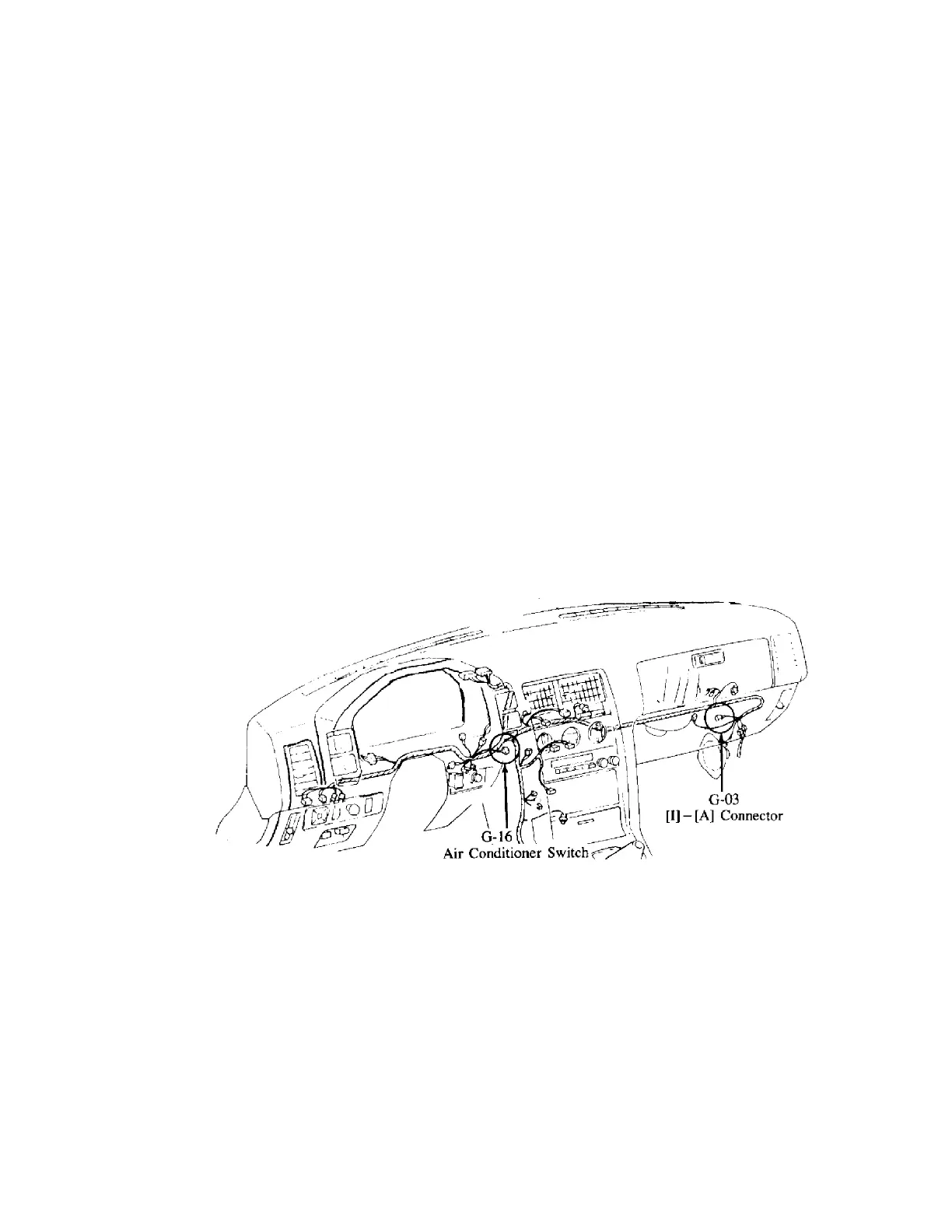

Fig. 1: A/C Indicator Light Harness Routing
REPAIR PROCEDURE
1. Check that the G-03 accessory connector (A) is assembled
correctly as viewed from the harness side of the connector.
If not, remove the incorrect terminals and reassemble according
to the connector diagram.
2. Check that the G-16 accessory connector (A) is assembled
correctly as viewed from the harness side of the connector.
If not, remove the incorrect terminals and reassemble according
to the connector diagram. See Fig. 2.
