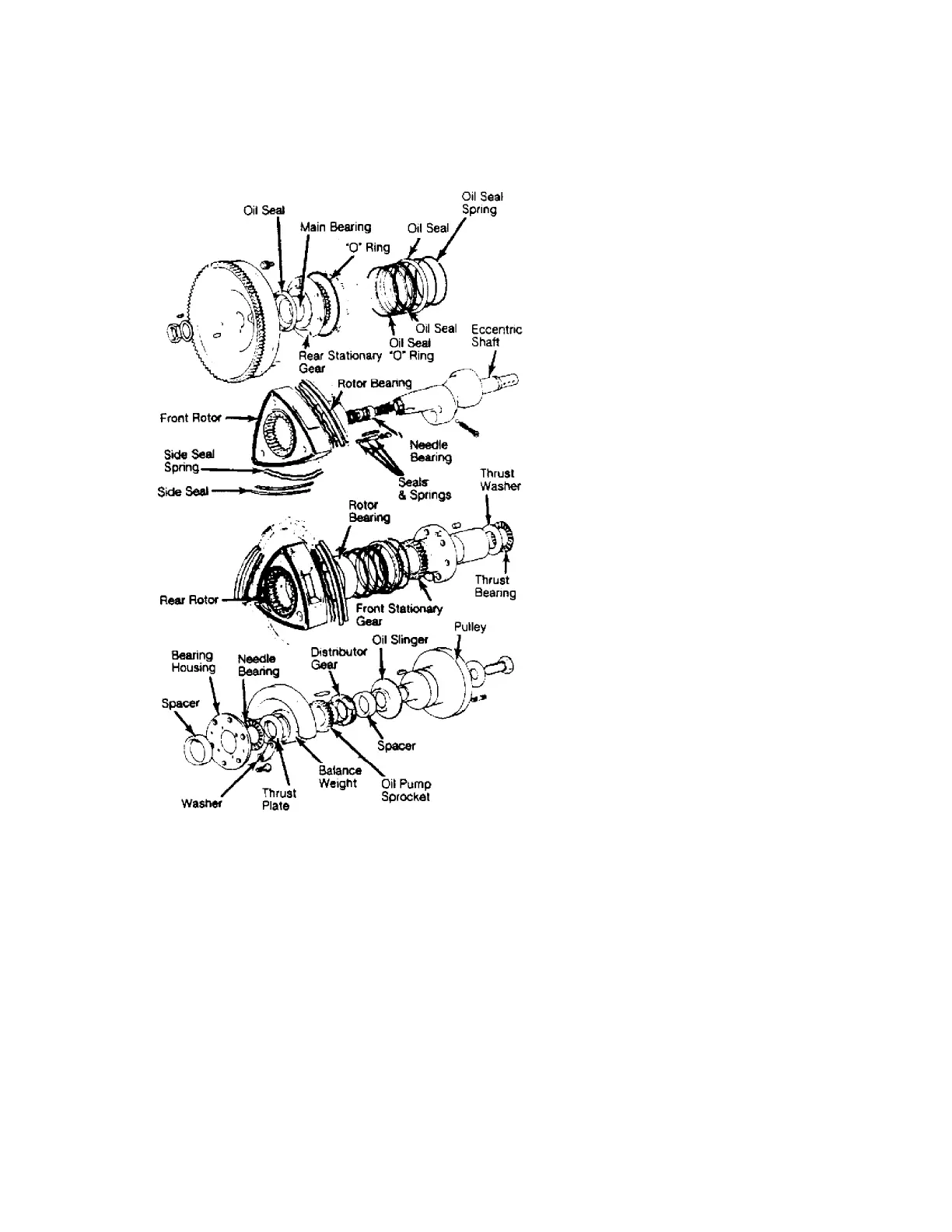

Fig. 1: Exploded View of Rotors & Eccentric Shaft Assembly
3) Remove air cleaner assembly. Disconnect the following
tubes and hoses: Oil hoses at cooler, radiator hoses, automatic
transmission cooler lines (if equipped), heater hoses, fuel supply and
return lines, vacuum and evaporative hoses, and air pipe at rear
of intake manifold.
4) Remove cooling fan and drive assembly, radiator, and
radiator shroud assembly. Disconnect connector and "B" terminal wire
from alternator. Disconnect connector from throttle sensor.
5) Without disconnecting refrigerant lines, remove compressor
and air conditioning condenser (if equipped) and tie out of the way.
6) Disconnect choke heater connector. Disconnect accelerator,
choke and hot start assist cables. Disconnect any remaining wires,
tubes or linkages between engine and chassis at top of engine. Remove
upper engine-to-transmission bolts.
7) Raise and support vehicle. Remove starter. Remove lower
engine-to-transmission bolts. Remove exhaust pipe front cover. Remove
