Mazda 1983 RX7 - Pick-Up Coil Operation Check; Igniter Check; Ohmmeter Hookup for Pick-Up Coil Resistance Check; Test Lamp Hookup for Checking Ignitor Operation

IGNITION SYSTEM
Article Text (p. 4)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, August 26, 2001 03:31PM
Fig. 4: Ohmmeter Hookup for Pick-Up Coil Resistance Check
Replace pick-up coil and bearing plate assembly if reading is not
600-700 ohms.
2) Connect ohmmeter leads to leading terminals and then
to trailing terminals. Resistance should be 600-700 ohms at 68 ø F
(20 ø C) for each set of pick-up coils. If not, replace pick-up coil
and bearing assembly.
PICK-UP COIL OPERATION CHECK
1) With distributor connector still disconnected, touch
ammeter leads to leading terminals and then to trailing terminals.
2) Place a screwdriver against core of pick-up coil being
tested. Indicator of meter should move each time screwdriver is taken
quickly away from core. If not, replace pick-up coil and bearing
assembly.
IGNITER CHECK
1) Remove ignitor from distributor base. Make a circuit as
shown in Fig. 5 using wire and a test bulb. Use a 12 volt bulb of
less than 10 watts.

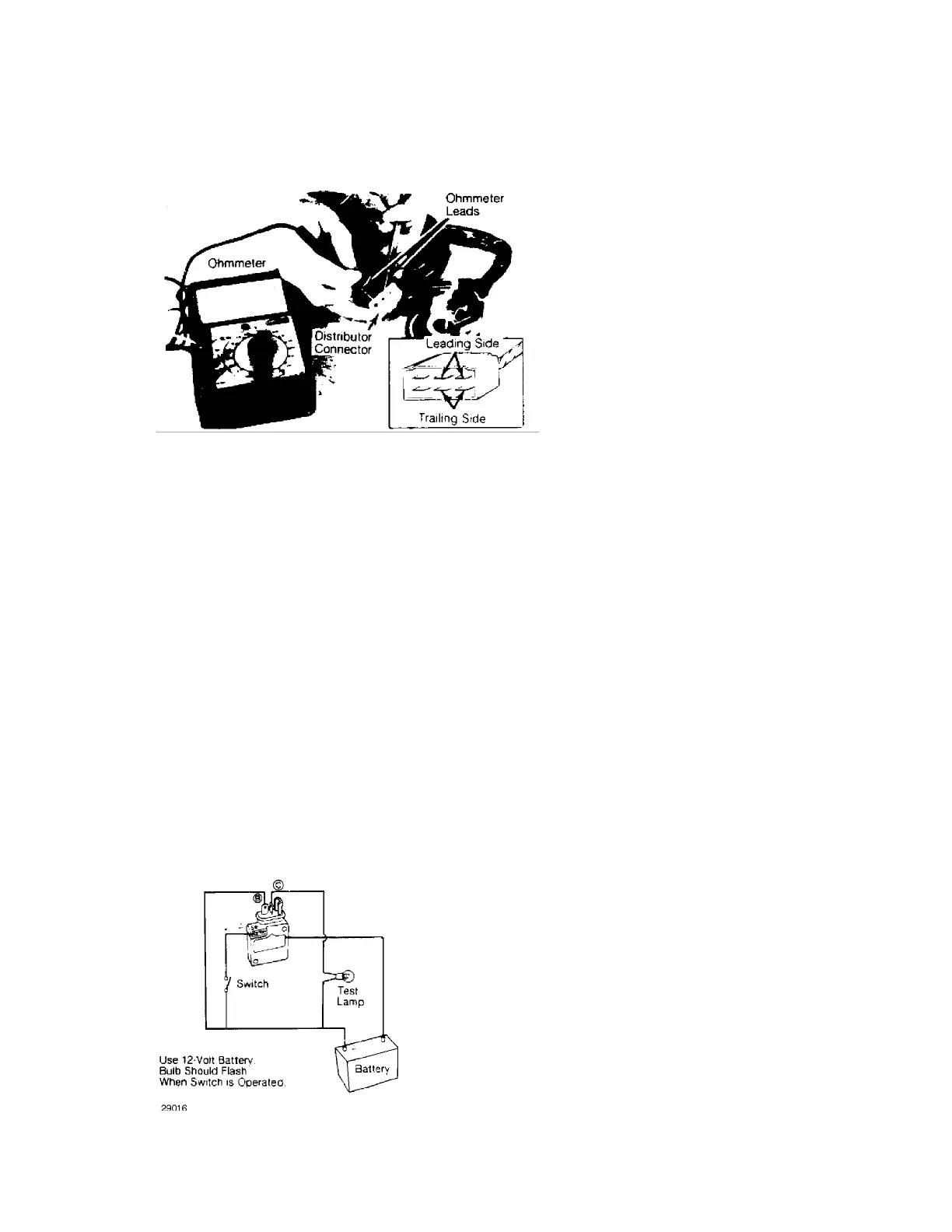

Fig. 5: Test Lamp Hookup for Checking Ignitor Operation
Bulbs should flash when switch is operated.
