TECHNICAL SERVICE BULLETIN
PINION HEIGHT ADJUSTMENT
Models All Rear Drive Models
Bulletin No. 014/83
Category 9
Date 12/23/83
DESCRIPTION
If the differential pinion height adjustment is necessary for rear
wheel drive vehicles, the number on the end surface of the drive
pinion should be used to obtain the adjustment value.
There are two types of markings:
1. Handwritten marking with electric pen. This number should be
used for the adjustment value. See Fig. 1.

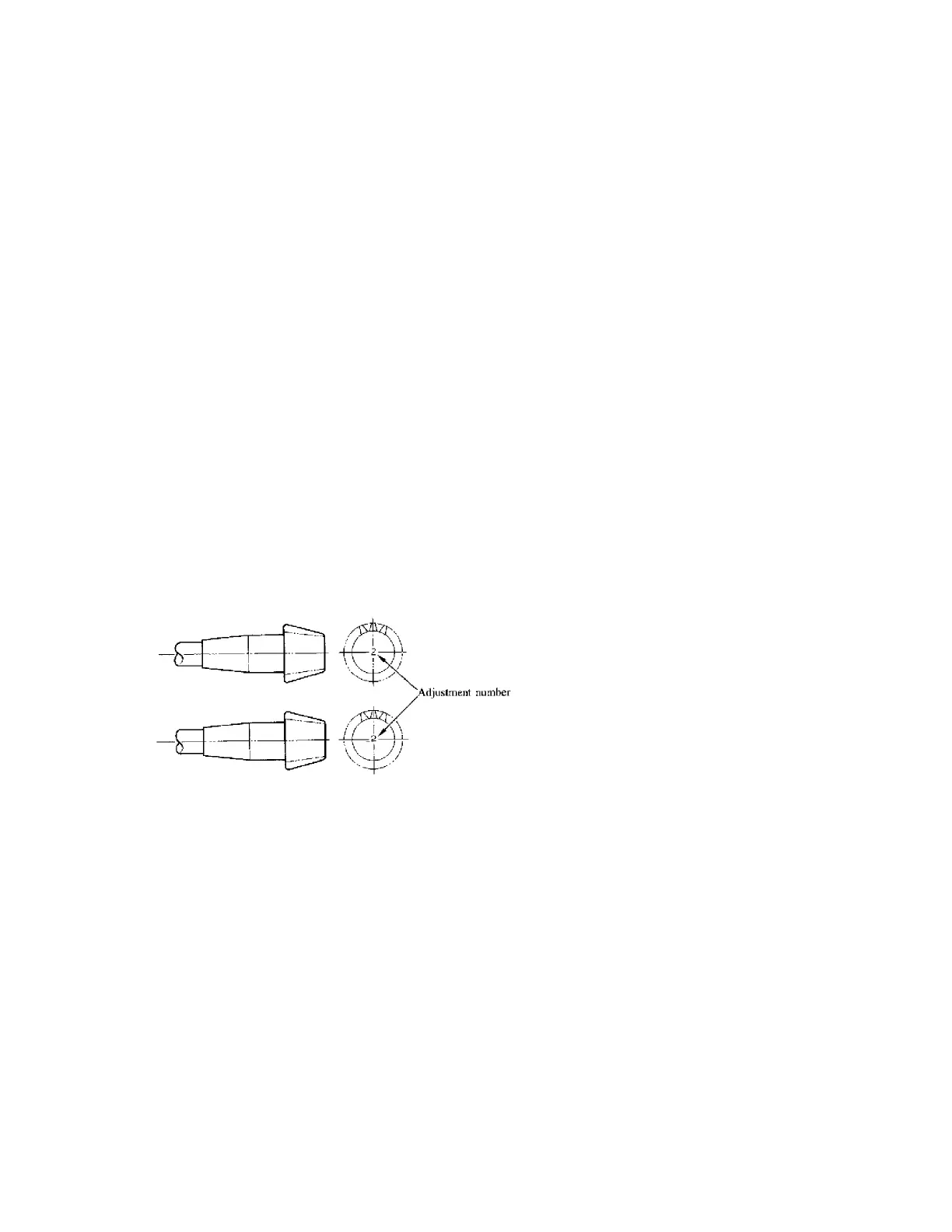

Fig. 1: Location of Adjustment Numbers
2. No handwritten marking. If there is no handwritten marking on
the end surface of the drive pinion, the adjustment value is
zero (0).
NOTE: 1. There are some cases of numbers stamped on the end surface
of the drive pinion, however, these numbers do not indicate
the adjustment value.
2. It is essential to check tooth contact after assembling the
differential even though the pinion height adjustment has
been made. Please refer to the Service Information for the
proper tooth contact.
END OF ARTICLE
