MANUAL TRANSMISSION SHIM ADJUSTMENTS CAT. J, NO. 001/90
Article Text (p. 2)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 08, 2001 09:44AM

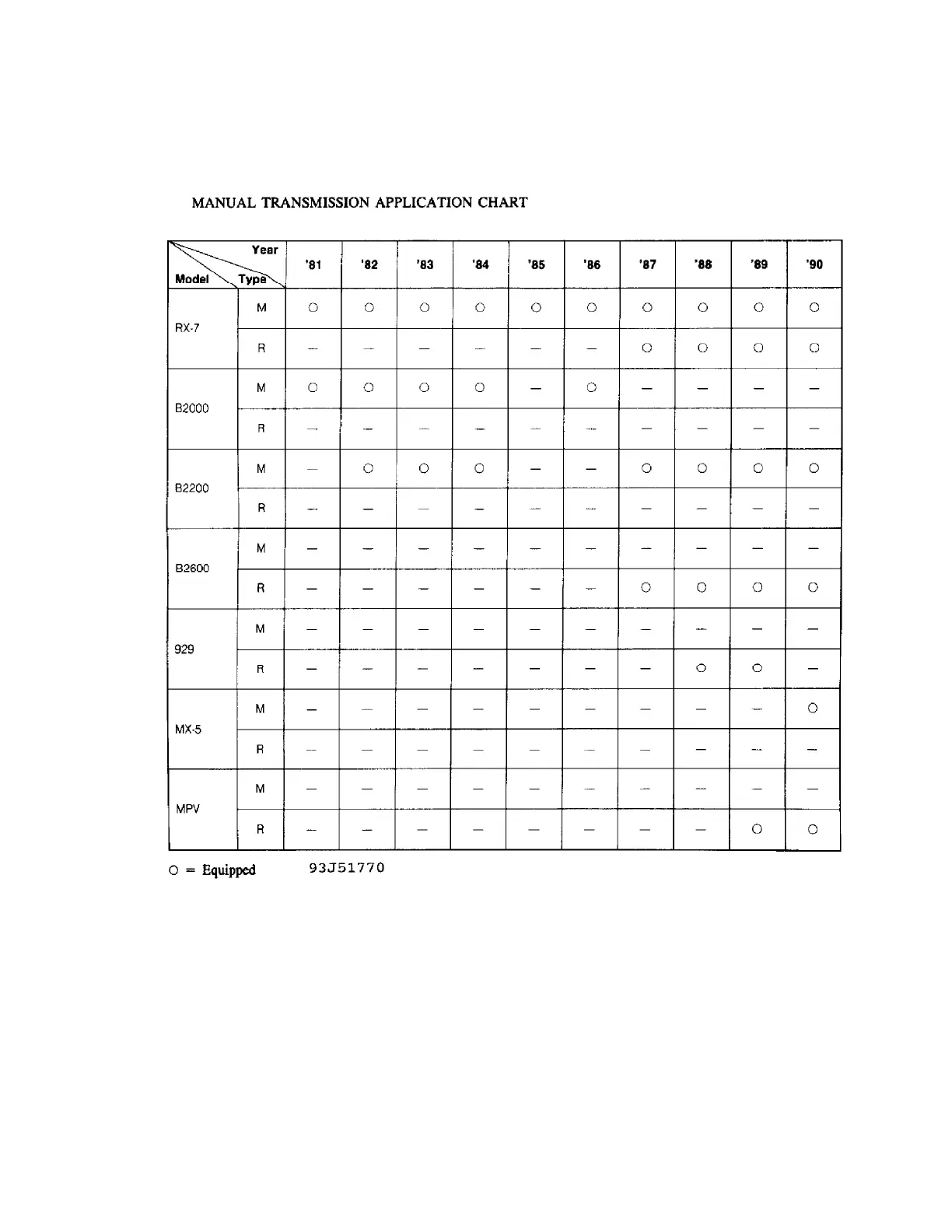

Fig. 1: Manual Transmission Application Chart
1. Install the synchronizer ring and 5th gear.
2. Insert the steel ball and thrust washer.
3. Install only the two 3.0mm (0.118 in) thick "C", washers in the
front mainshaft groove and hold them with the retaining ring. See
Figure 2.
