STEERING COLUMN SWITCHES
Article Text (p. 2)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, August 26, 2001 08:20PM
column shrouding. Remove combination switch. Disconnect electrical
connector.
2) Remove screw attaching switch contact housing to steering
lock body and slide out contact housing. See Fig. 2.
Installation
To install, reverse removal procedure.
STEERING LOCK
Removal
Remove steering wheel, column shrouding and combination
switch. File slot in bolt attaching steering lock body to column
shaft (in order to remove bolt with screwdriver) and remove bolt.
Remove steering lock.
Installation
To install, reverse removal procedure and tighten new shear
bolts until heads break off.

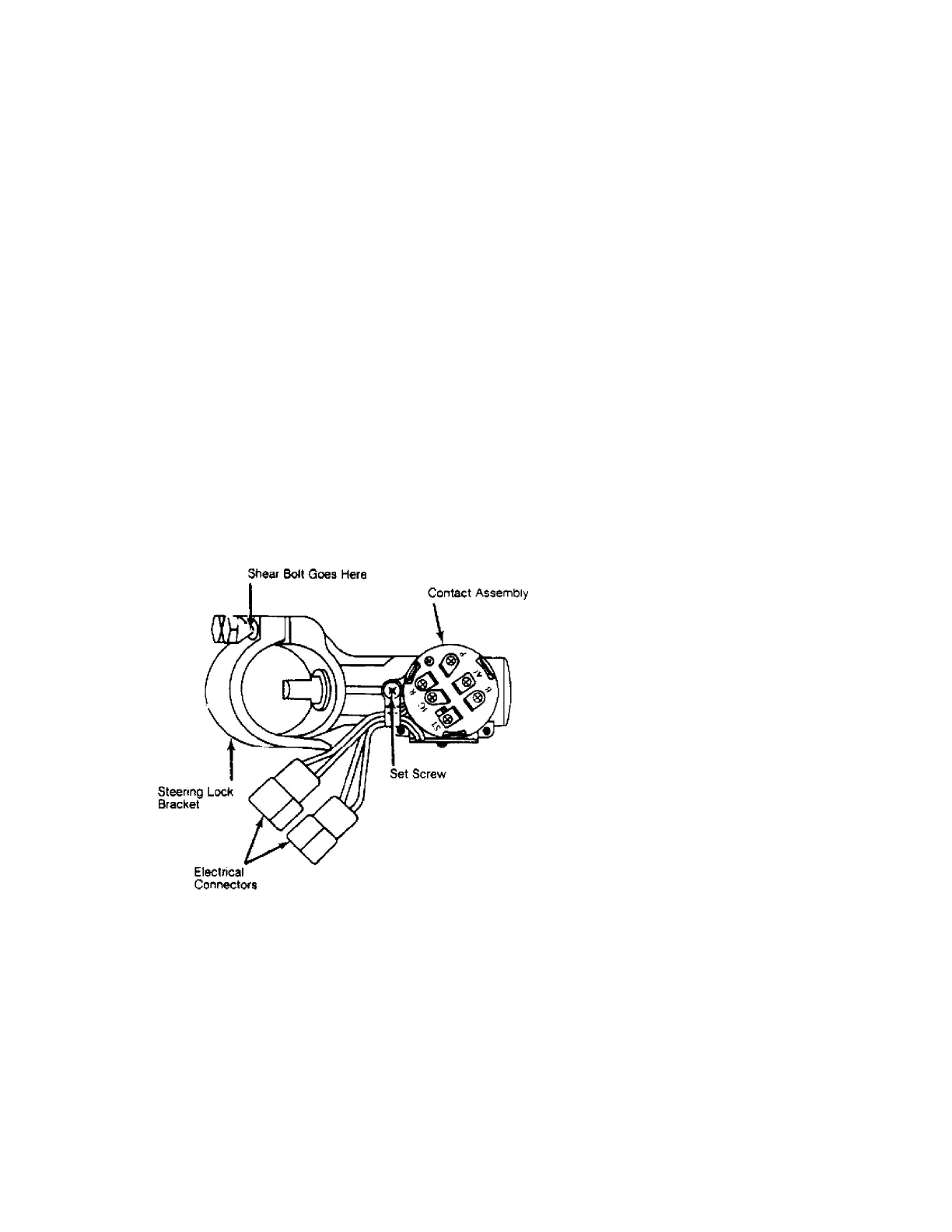

Fig. 2: Exploded View of Ignition Switch (Exc. Pickups)
END OF ARTICLE
