WIRING DIAGRAM SYMBOLS
Article Text (p. 4)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 08, 2001 10:05AM

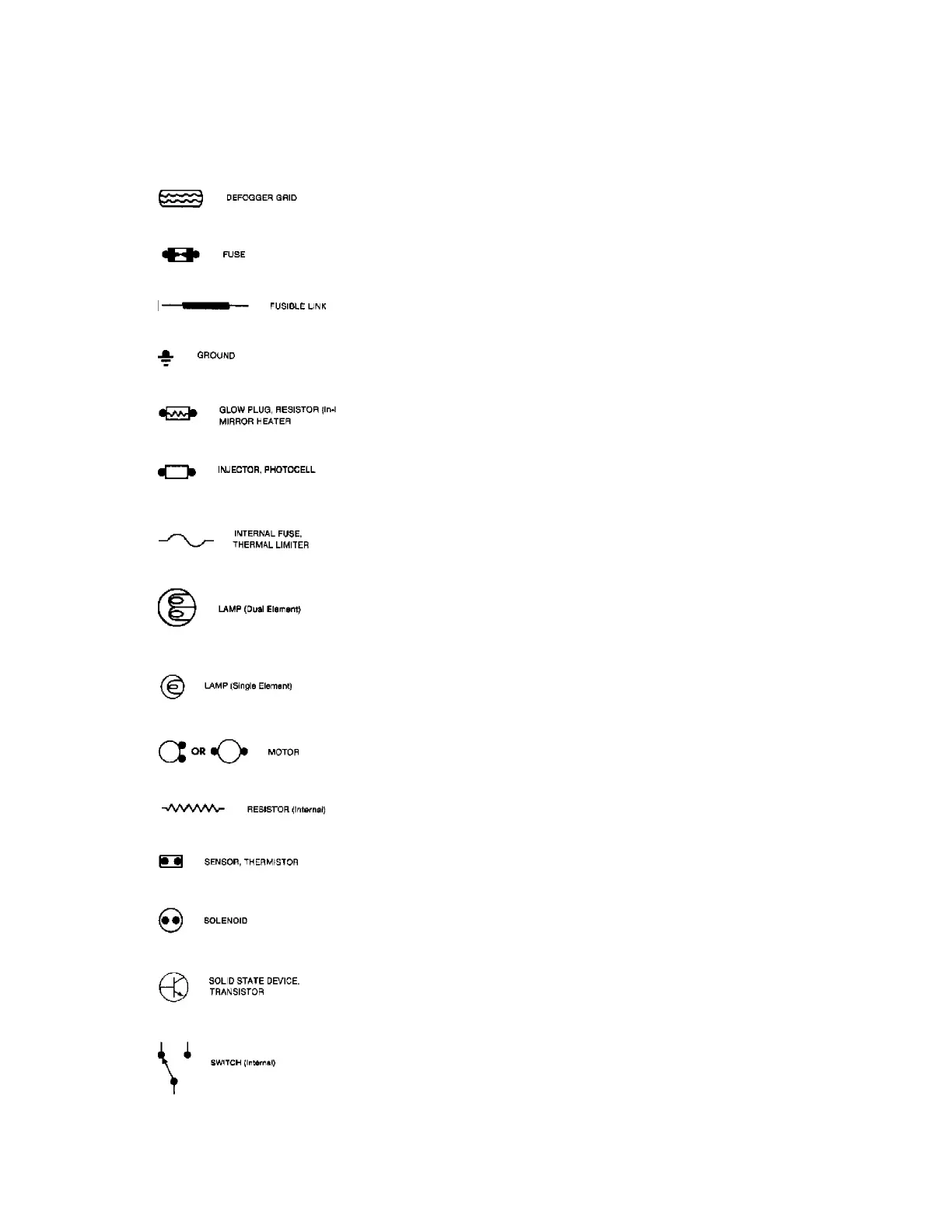

Fig. 9: Defogger Grid
Fig. 10: Fuse
Fig. 11: Fusible Link
Fig. 12: Ground
Fig. 13: Glow Plug Resistor (In-Line) or Mirror Heater
Fig. 14: Injector (Diesel) or Photocell (Gasoline)
Fig. 15: Internal Fuse, Thermal Limiter
Fig. 16: Lamp (Dual Element)
Fig. 17: Lamp (Single Element)
Fig. 18: Motor
Fig. 19: Resistor (Internal)
Fig. 20: Sensor, Thermistor
Fig. 21: Solenoid
Fig. 22: Solid State Device, Transistor
Fig. 23: Switch (Internal)
