CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 95 TOC ]
Page 208
Revision 7
95-00-20
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
ALT
CAUTION AND WARNING
INDICATORS
ATTITUDE GYRO
ALTIMETER
ENGINE OIL
TEMPERATURE
GAUGE
ENGINE OIL
PRESSURE
INDICATOR
TORQUE METER
FUEL QUANTITY
GAUGE
TOT GAUGE
AMMETER
CLOCK
FRESH AIR VENT
N1 TACHOMETER
EDGE LIGHTED
SWITCH PANEL
AIRSPEED
INDICATOR
VNE
PLACARDS
N2/NR
TACHOMETER
DIRECTIONAL
GYRO
FUEL VALVE
KEY SWITCH
G95-0041

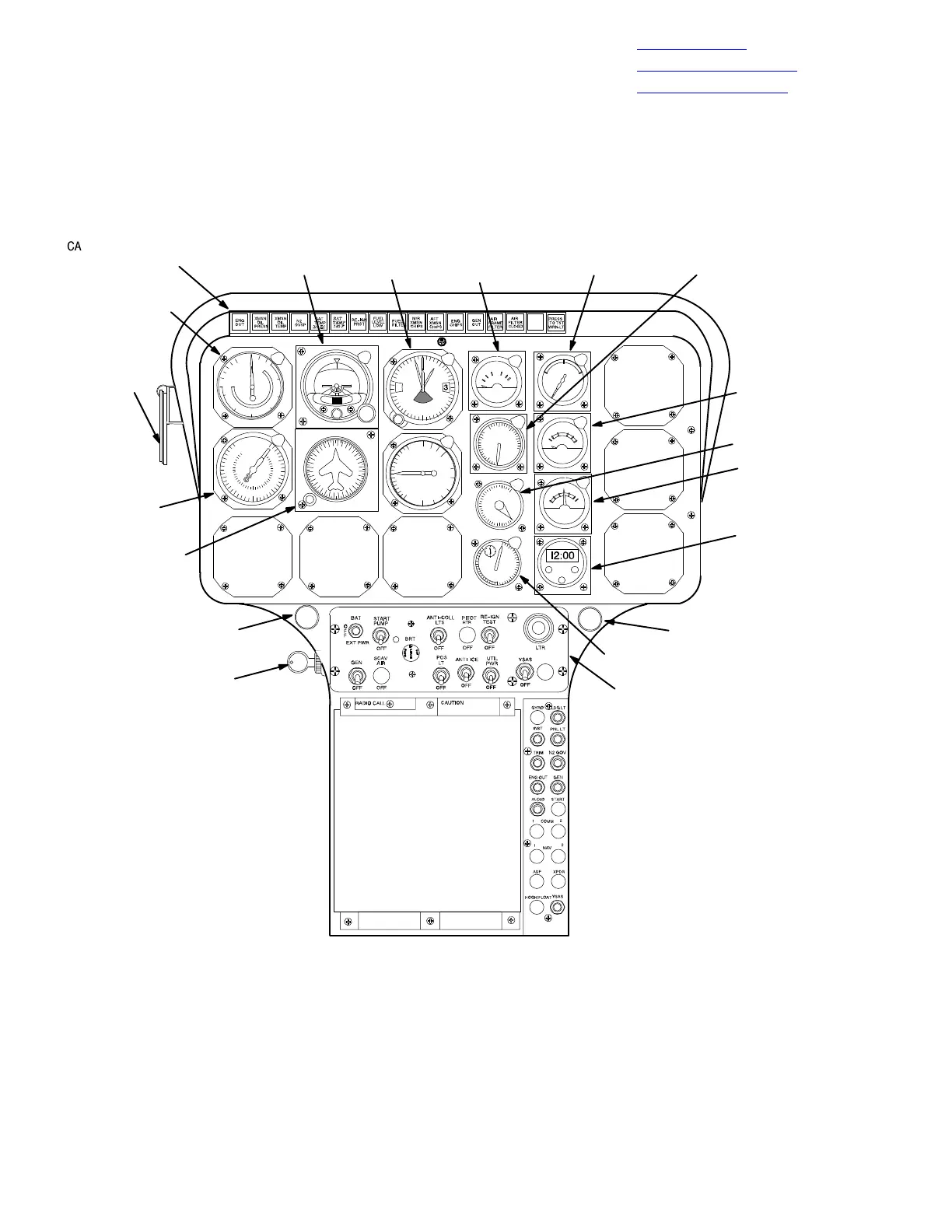

Figure 205. L/H Command T−Panel − Component Locations (500N)
