DRAIN VALVE
GROMMET
STATION 127.00
DRAIN VALVE
ALTIMETER
AIRSPEED
INDICATOR
COVER PANEL
NYLON CROSSOVER TUBE
(NOTE 1)
DRAIN VALVE
STATIC PRESSURE
TUBE
CANOPY FRAME
INSTRUMENT PANEL
(TYPICAL)
PITOT PRESSURE
NYLON TUBE
NYLON STRAP
TORQUE GAGE
PRESSURE LINE
LINE ATTACHMENT
(TYPICAL)
INST PANEL LOWER
SUPPORT STRUCTURE
GROMMET
DRAIN HOLE
PITOT TUBE ASSEMBLY
G95-1001A
NOTES:
1. MINIMUM BEND RADIUS OF 1.00 IN. (2.54 CM)
REQUIRED FOR ALL TUBES.
2. TUBE BONDED TO FAIRING WITH ADHESIVE.
TUBE END MUST BE FLUSH WITH OUTSIDE
SURFACE.
SINGLE STATIC
PRESSURE PORT
(NOTE 2)
STATIC PRESSURE TUBE

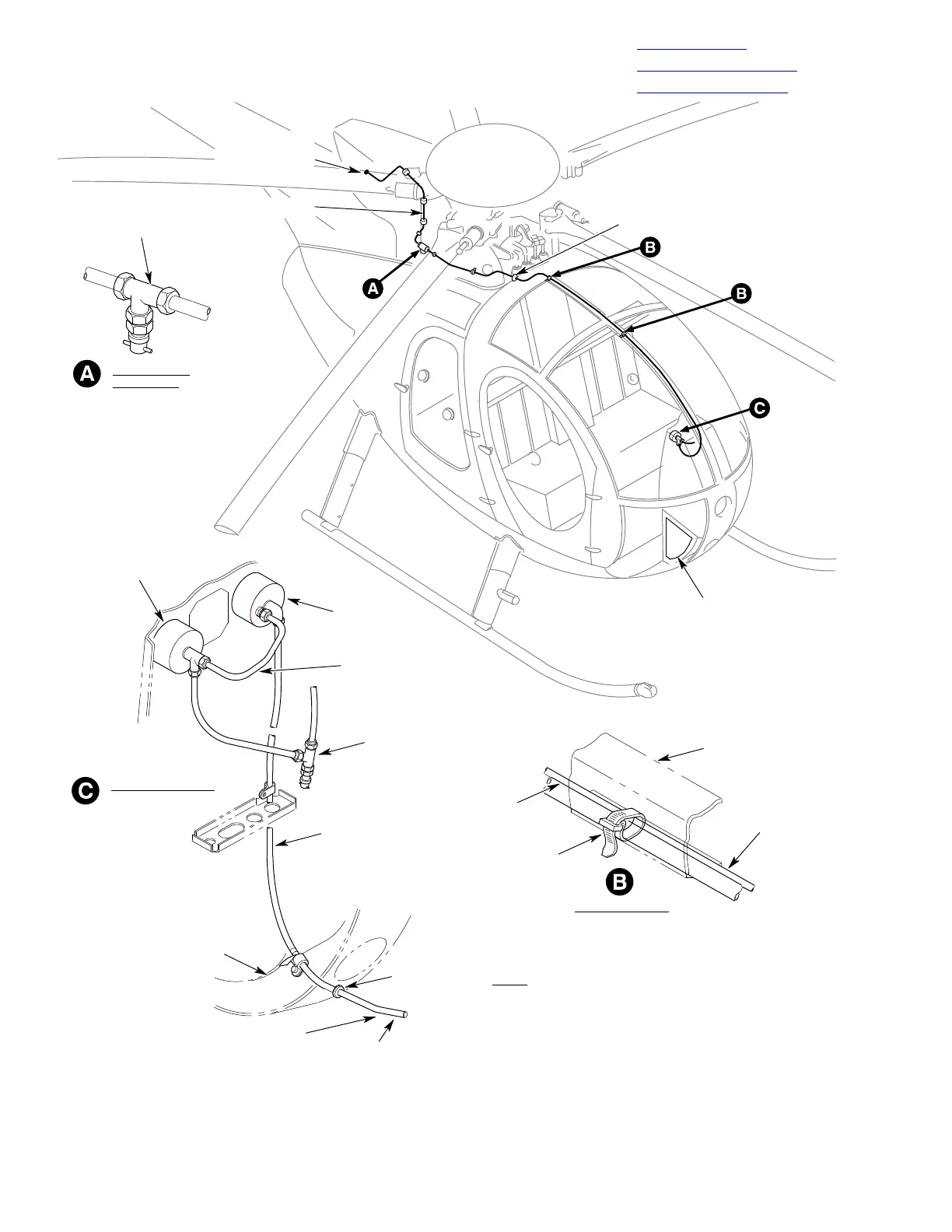

Figure 201. Pitot−Static System (369D)
