95-10-00
Page 205
Revision 7
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
STATION 127.00
DRAIN VALVE
ALTIMETER
COVER PANEL
AIRSPEED
INDICATOR
NYLON CROSSOVER TUBE
(NOTE 1)
INSTRUMENT PANEL
(TYPICAL)
STATIC PRESSURE
TUBE
DRAIN VALVE
GROMMET
INST PANEL LOWER
SUPPORT STRUCTURE
DRAIN HOLE (HEATED
TUBE HAS TWO DRAINS)
PITOT TUBE ASSEMBLY
NOTES:
1. MINIMUM BEND RADIUS OF 1.00 IN. (2.54 CM)
REQUIRED FOR ALL TUBES.
2. TUBE BONDED TO FAIRING WITH ADHESIVE.
TUBE END MUST BE FLUSH WITH OUTSIDE
SURFACE.
G95-1002A
CANOPY FRAME
NYLON STRAP
LINE ATTACHMENT
(TYPICAL)
TORQUE GAG
PRESSURE LI
DRAIN VALVE
STATIC PRESSURE TUBE
GROMMET

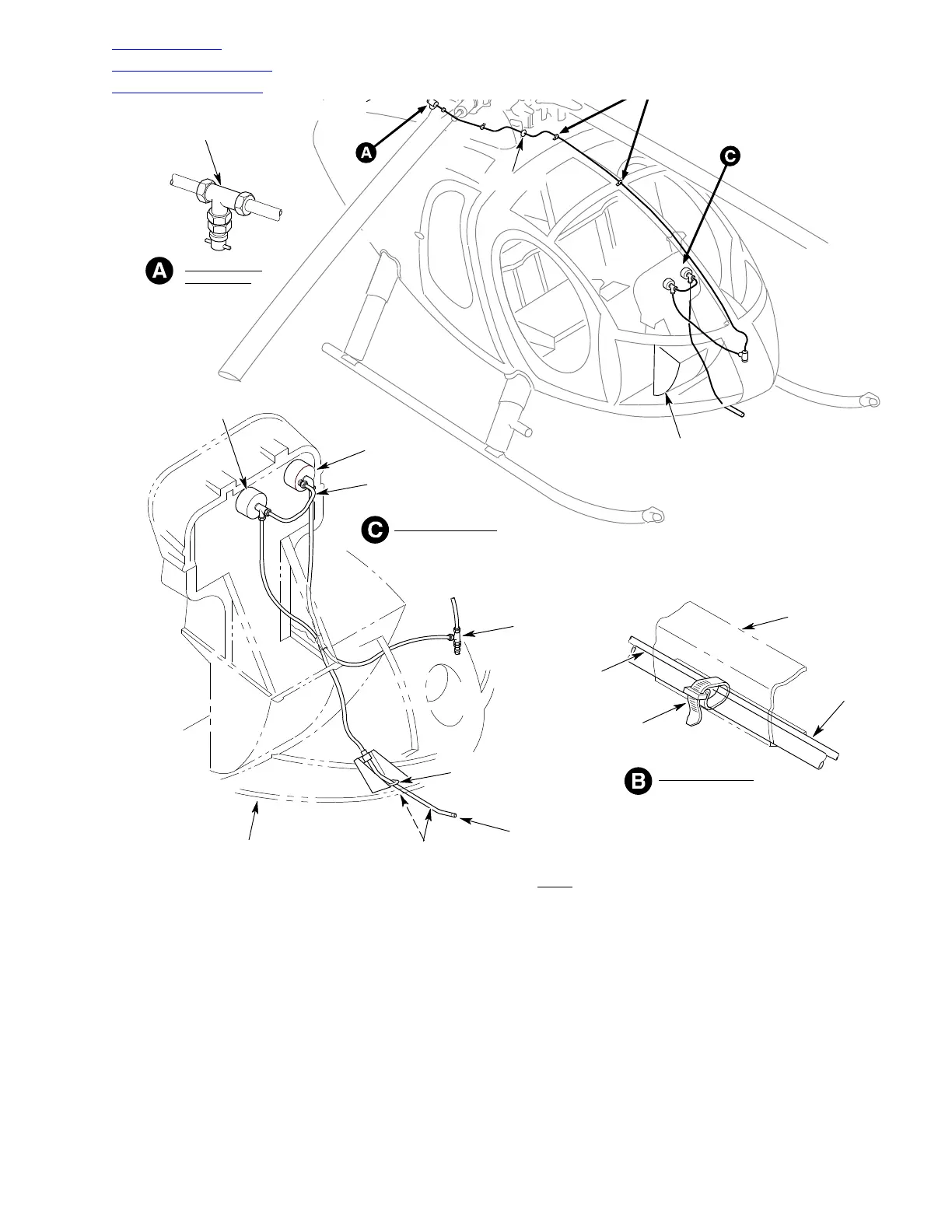

Figure 202. Pitot−Static System (369E/FF)
