CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 95 TOC ]
Page 206
Revision 10
95-10-00
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G95-1026B
ROTATED
AIRSPEED INDICATOR
ALTIMETER
TUBE
SCREW
CLAMP
WASHER
NUT
CLAMP
SCREW
SPACER
CLAMP
WASHER
TUBE
TUBE
SCREW
CLAMP
SUPPORT
WASHER
NUT
DECAL
AIR DAM
RIVETS
STATIC PRESSURE PORT
(NOTE 2)
INSTRUMENT PANEL
(TYPICAL)
NUT
ROTATE
D
NOTES:
1. MINIMUM BEND RADIUS OF 1.00 IN. (2.54 CM) REQUIRED FOR
ALL TUBES.
2. TUBE BONDED TO FAIRING WITH ADHESIVE. TUBE END MUST
BE FLUSH WITH OUTSIDE SURFACE.
ALTIMETER
AIRSPEED
INDICATOR
NYLON CROSSOVER TUBE
(NOTE 1)
GROMMET
INST PANEL LOWER
SUPPORT STRUCTURE
DRAIN HOLE (HEATED
TUBE HAS TWO DRAINS)
PITOT TUBE
ASSEMBLY

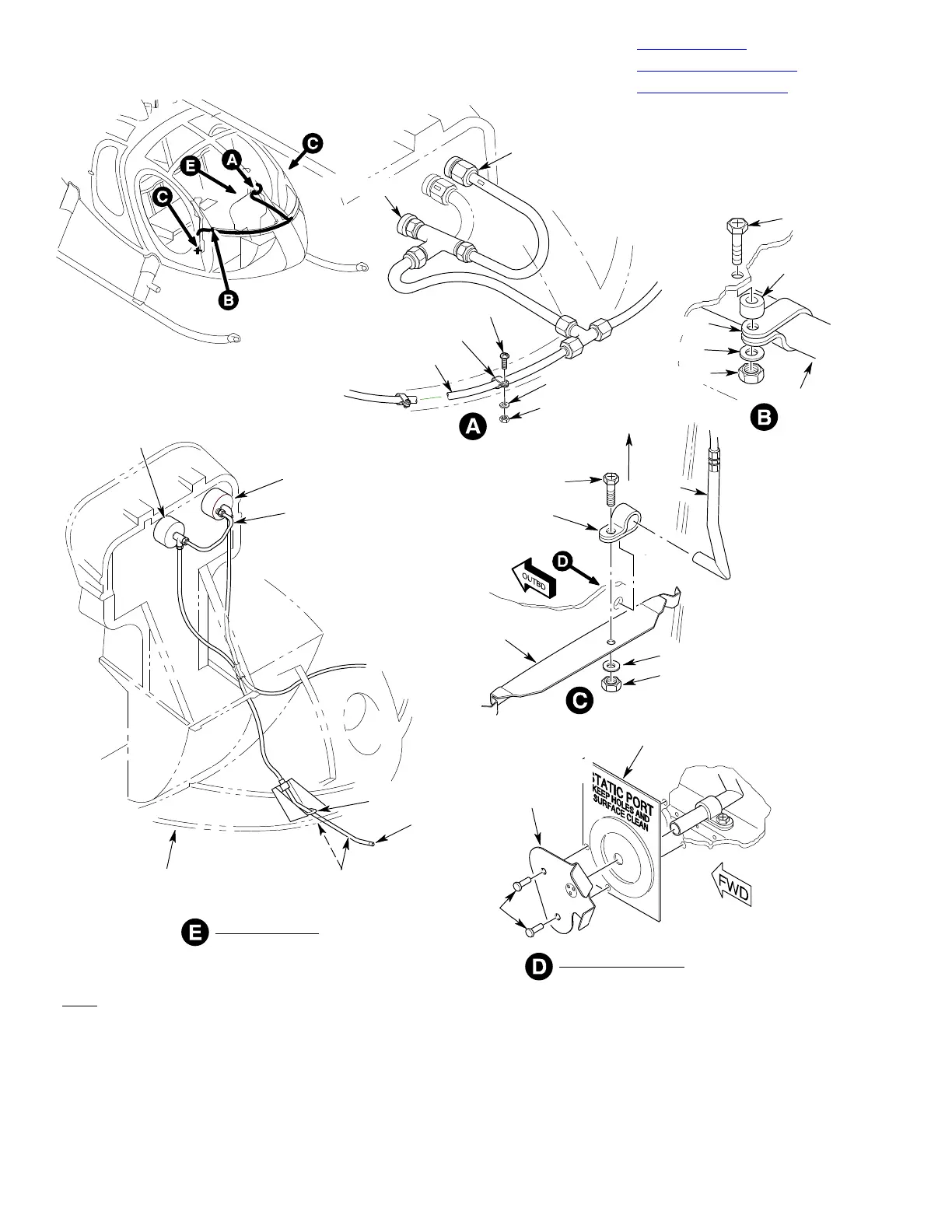

Figure 203. Pitot−Static System (500/600N)
