LEFT-HAND COMMAND ”T”
PANEL
SLIMLINE
DIRECTIONAL GYRO INDICATOR
ELECTRICAL
PLUG P506
UPPER
SUPPORT
ASSEMBLY
(NOTE 1)
STRAP
(NOTE 2)
2TC13-3 CB105 GYROS
CIRCUIT BREAKER
NUT
WASHER
DIRECTIONAL GYRO
INDICATOR
INSTRUMENT
PANEL FACE
GYRO SUPPORT
MOUNT
POST LIGHT
WASHER
SCREW
CLAMP
(NOTE 1)
G95-2001-1
NOTES:
1. USED ONLY ON
SLIMLINE PANEL.
2. STRAP IS NOT USED
WHEN ATTITUDE GYRO
IS INSTALLED.
INST.
MOUNT

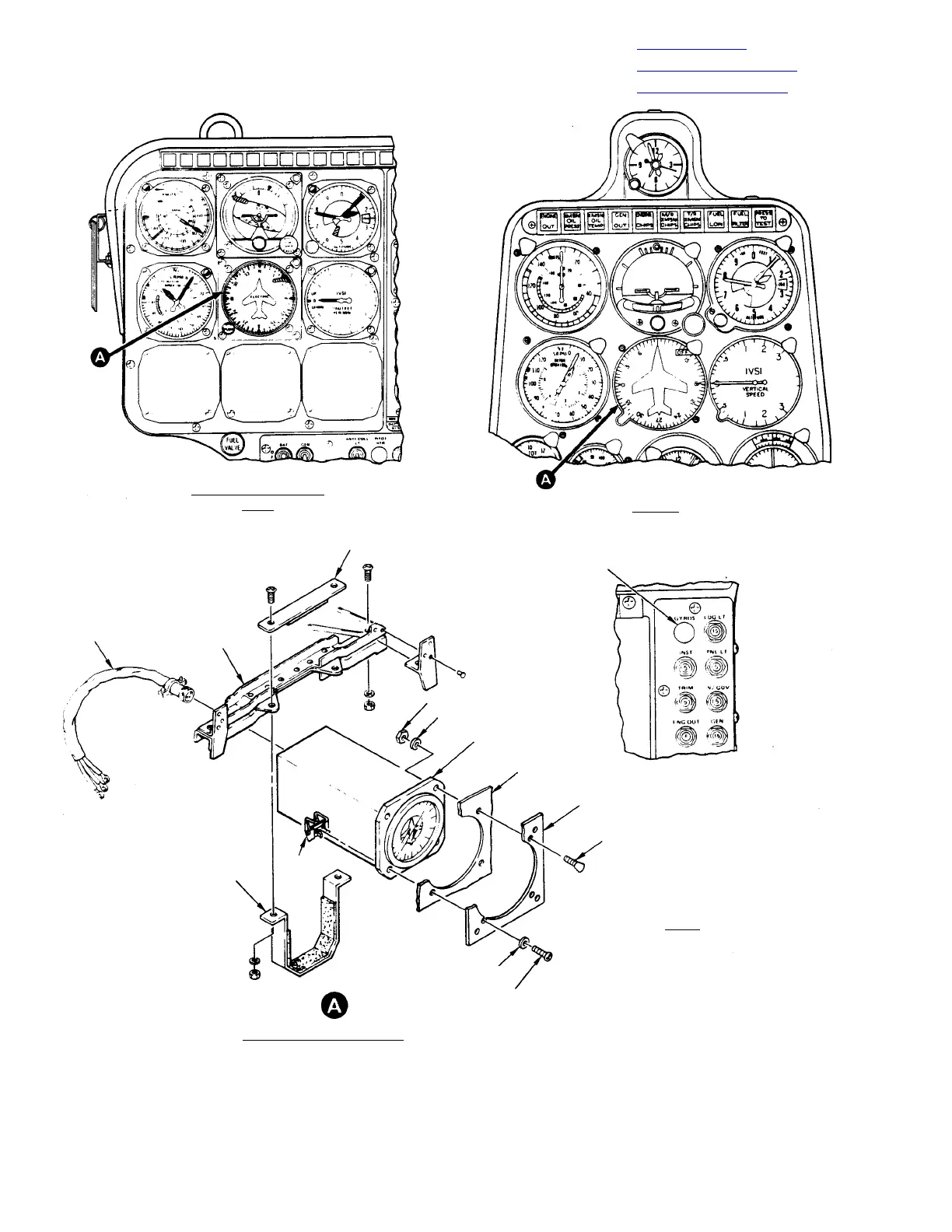

Figure 201. Directional Gyro Indicators Wiring Diagrams and Installation (Sheet 1 of 3)
