INST. MOUNTING
INST. PANEL
WASHER
SCREW
NUT
SCREW
POST LIGHT
CUTOUT HOLE PATTERN
FOR REAR MOUNT
MS24509-3 SW CB
CB135
DIR GYRO
DIR GYRO P138
+28 VDC
PWR
GROUND
C
A
B
D
F5101C22
F5102A22N
TB100-2
J
H
G
E70-E
F5101B22
M39029/22-192
SOCKET 3 PLCS
J615P
H
F5101A22
3A
-701 INSTALLATION
-9 WIRE HARNESS ASSY
HORIZ. CONSOLE
NOTES:
1. THIS WIRING DIAGRAM SHOULD BE USED WITH ELECTRICAL
SYSTEM WIRING DIAGRAM FOR COMPLETE CIRCUIT
IDENTIFICATION.
2. DASHED LINE (- - - -) ITEMS ARE PART OF HELICOPTER
BASIC ELECTRICAL SYSTEM.
3. TERMINAL NUMBERS ARE FOR REFERENCE ONLY AND MAY
NOT BE ON COMPONENTS.
4. ELECTRICAL NOISE FILTER IS USED INSTEAD OF TB103
IF KING KR85 ADF EQUIPMENT IS INSTALLED.
5. CASE ELECTRICALLY BONDED TO STRUCTURE.
6. WHEN 369H90039 INDICATORS ARE INSTALLED, ONLY
ONE CIRCUIT BREAKER REQ'D.
G95-2001-2A

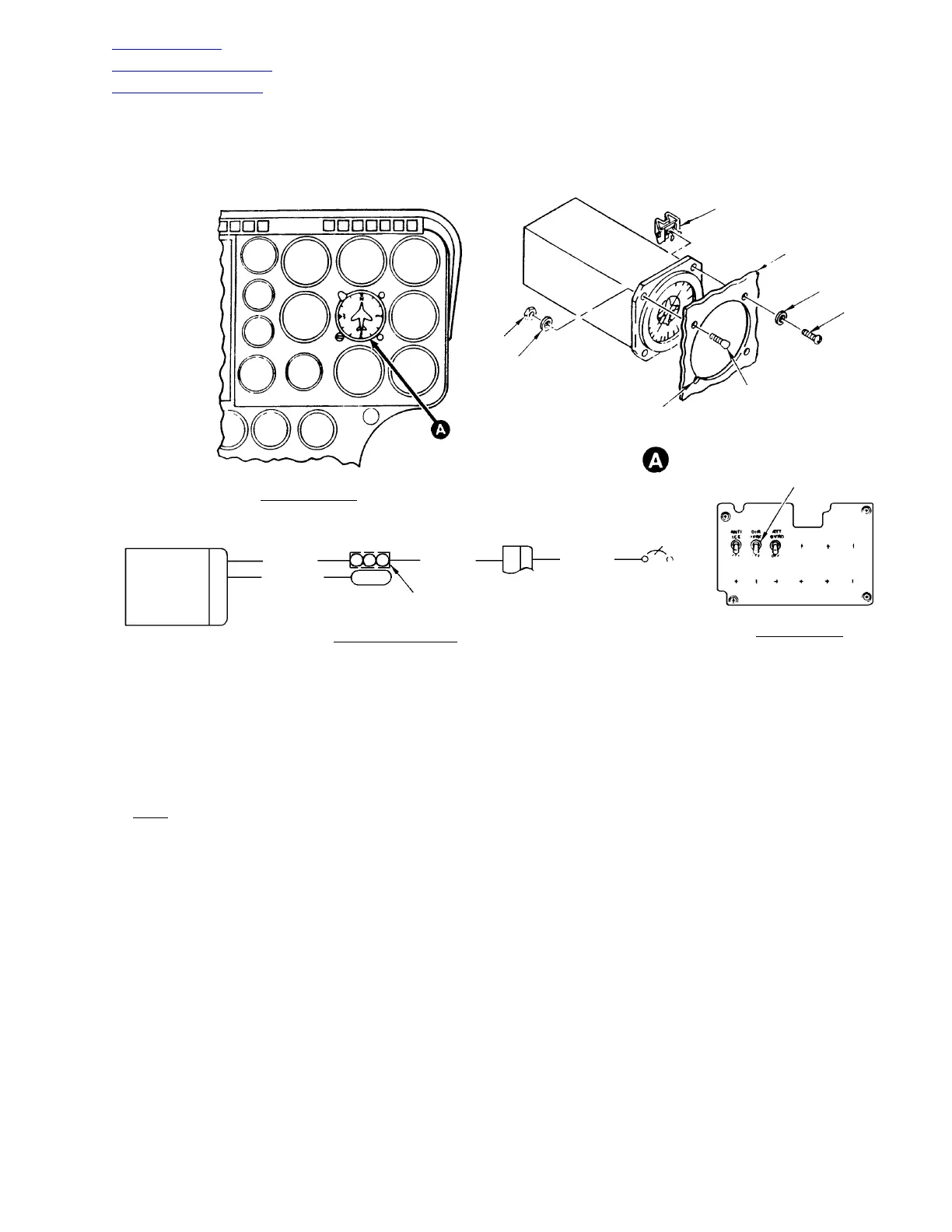

Figure 201. Directional Gyro Indicators Wiring Diagrams and Installation (Sheet 2 of 3)
