N2/NR TACHOMETER
N2/NR TACHOMETER
EXISTING WIRE
NEW WIRE
KEY TO WIRING MODS:
DELETED WIRE

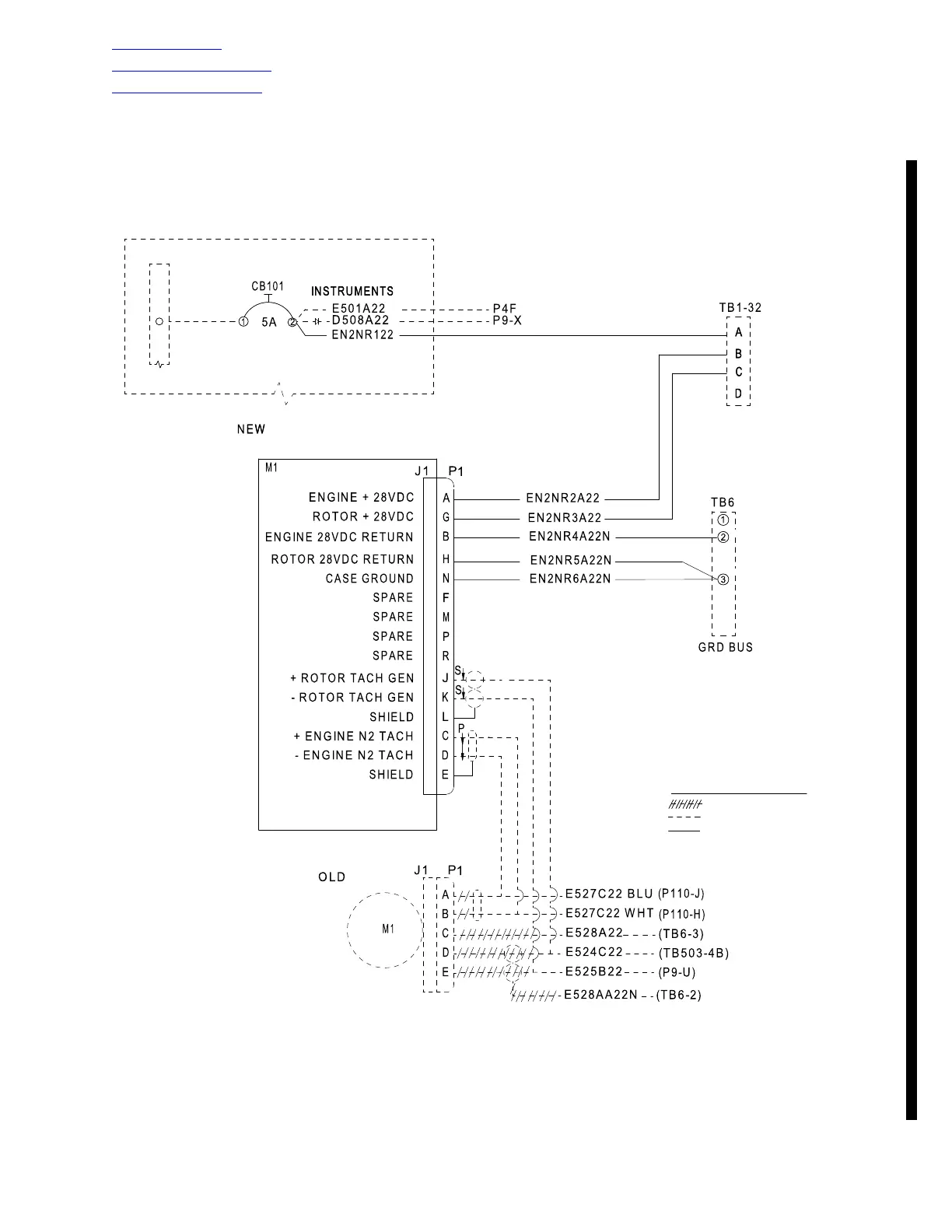

Figure 402. Wiring Diagram − Tachometer Indicating System (P/N 369D24518−17) (Sheet 1 of 2)
