T850-3
EXISTING WIRE
NEW WIRE
KEY TO WIRING MODS:
DELETED WIRE
N2/NR TACHOMETER
N2/NR TACHOMETER

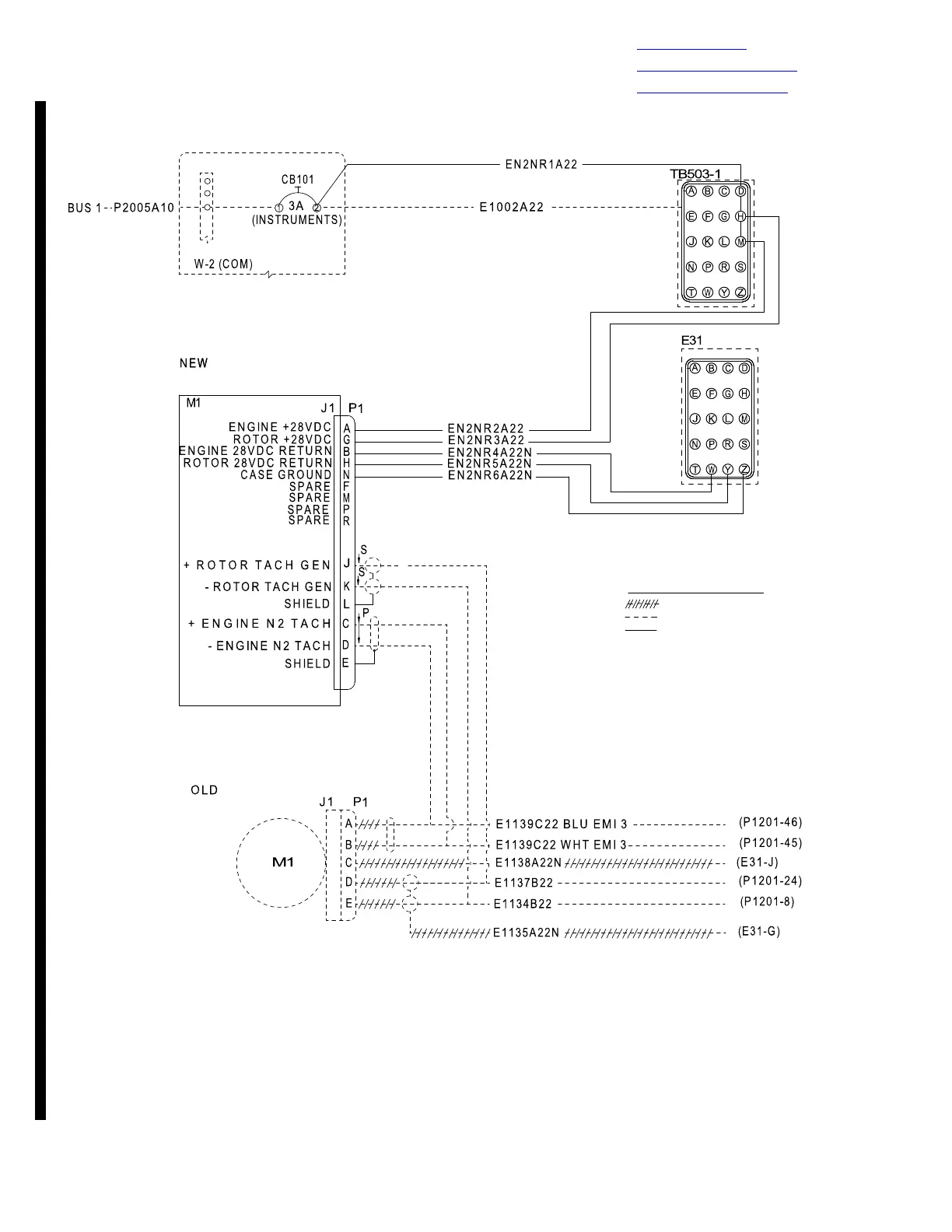

Figure 402. Wiring Diagram − Tachometer Indicating System (P/N 369D24518−19) (Sheet 2 of 2)
