95-30-00
Page 903
Revision 7
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
95-3012-1
LE
C G
H
D
M39029/22-191
SOCKET
M39029/22-192
SOCKET
M39029/87-480
CONTACT PIN
M39029/87-479
CONTACT PIN
D
TB503-1
P1201J
9
L1145B22
J5P
369D24513-1 TOT IND.
TB503-3
E1141B2
0
CHROMEL
ALUMEL
K
N
TOT1A22
TOT2A22N
TOT3A22N
TOT4A22
28V POWER IN
28V GROUND
28V LIGHTING GROUND
28V LIGHTING POWER
CHROME
ALUMEL
CASE GROUND
B
C
E
A
F
G
K
H
J
Wiring Data List − 369E Helicopters S/N 384 & Subs − 500N Helicopters S/N 001 & Subs
* Wire #
From Termination To Termination Material
TOT1A22 P5−B M39029/32−259 TB503−1−G M39029/22−191 22 GA
TOT2A22N P5−C ♦ M39029/32−259 E31−H M39029/22−191 22 GA
TOT3A22N P5−D M39029/32−259 E35−D M39029/22−191 22 GA
TOT4A22 P5−E M39029/32−259 TB503−3−D M39029/22−192 22 GA
JUMPER P5−K M39029/32−259 P5−C ♦ M39029/22−259 22 GA
JUMPER TB503−1−C M39029/22−191 TB503−1−E M39029/22−191 22 GA
E1141B20 P5−F (WHT)
(chromel)
M39029/32−245 P1202−K (WHT)
(chromel)
M39029/87−480 20 GA
E1141B20 P5−G (GRN)
(alumel)
M39029/32−244 P1202−N (GRN)
(alumel)
M39029/87−479 20 GA
NOTES:
* Wires provided in this kit are excessive in length. Wires are to be added and secured to existing harness.
Cut wires to proper length after routing and terminate with hardware provided.
♦ Crimp both wires in same contact.

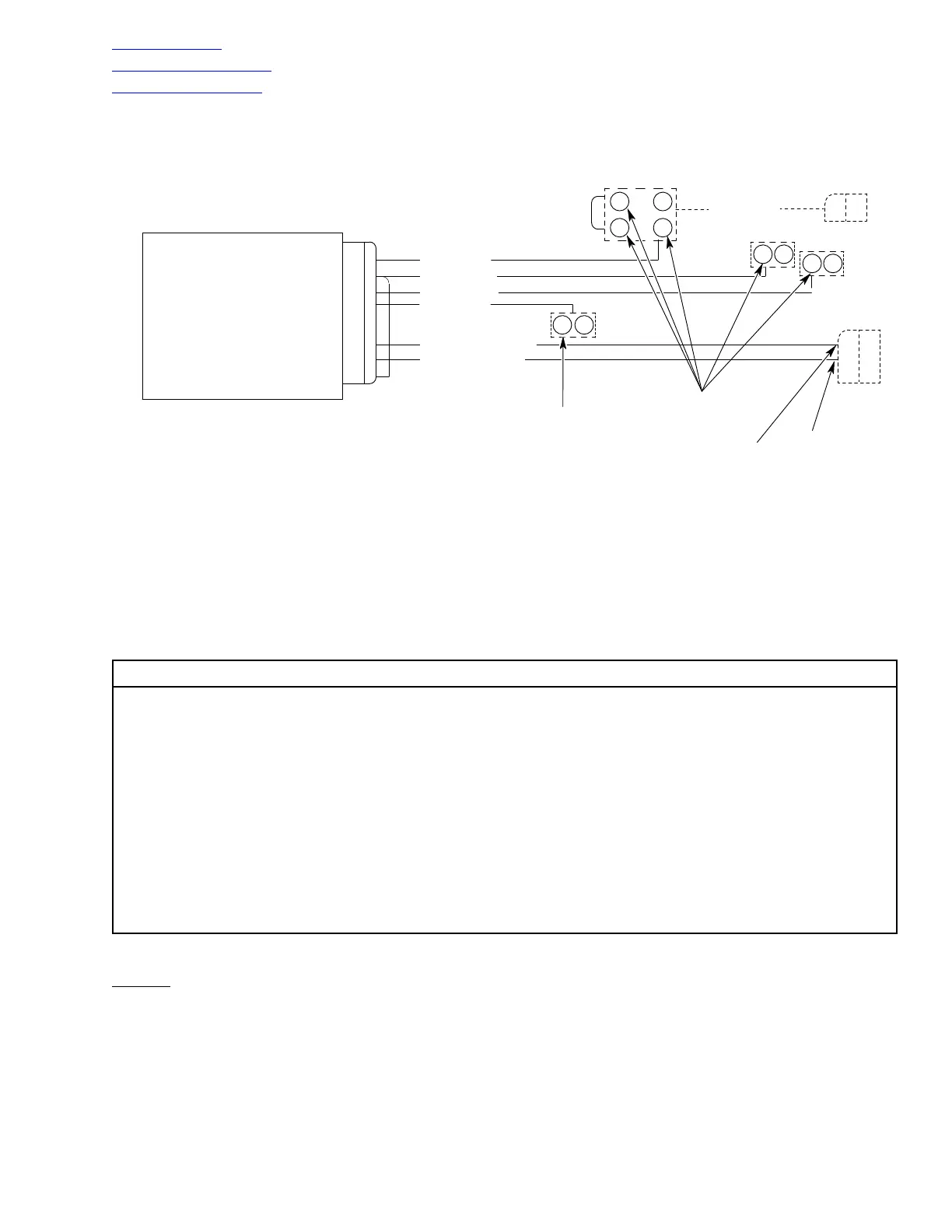

Figure 901. Analog Digital TOT Wiring Installation (Sheet 1 of 3)
