95-30-00
Page 905
Revision 7
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
95−3012−3
MS25036-103 LUG
MS25036-103 LUG
369D24513-1 TOT IND.
J5P
28V POWER IN
28V GROUND
28V LIGHTING GROUND
28V LIGHTING POWER
CHROMEL
ALUMEL
CASE GROUND
TOT1A22
TOT2A22N
TOT3A22N
TOT4A22
E10A16
CHROMEL
ALUMEL
TB105-4
TC300
GND
IGN SEND IGN SEND LOAD BA
T
B
C
D
E
A
H
J
F
G
K
Wiring Data List − 369D Helicopters S/N 001 & Subs
* Wire #
From Termination To Termination Material
TOT1A22 P5−B M39029/32−259 3 PACK−IGN MS25036−103 22 GA
TOT2A22N P5−C ♦ M39029/32−259 3 PACK−GND D MS25036−103 22 GA
TOT3A22N P5−D M39029/32−259 3 PACK−GND D MS25036−103 22 GA
TOT4A22 P5−E M39029/32−259 TB105−4 MS25036−103 22 GA
JUMPER P5−K M39029/32−259 P5−C ♦ (ground) M39029/32−259 22 GA
E10A16 [ P5−F (chromel) M39029/32−245 TC300 (chromel) (existing wire) 16 GA
E10A16 H P5−G (alumel) M39029/32−244 TC300 (alumel) (existing wire) 16 GA
NOTES:
* Wires provided in this kit are excessive in length. Wires are to be added and secured to existing harness.
Cut wires to proper length after routing and terminate with hardware provided.
[ Remove existing terminal end, crimp M39029/32−245 socket to wire and insert in P5−F.
H Remove existing terminal end, crimp M39029/32−244 socket to wire and insert in P5−G.
D After routing wires, cut and insert both wires into MS25036−103 terminal lug.
♦ Crimp both wires in same contact.

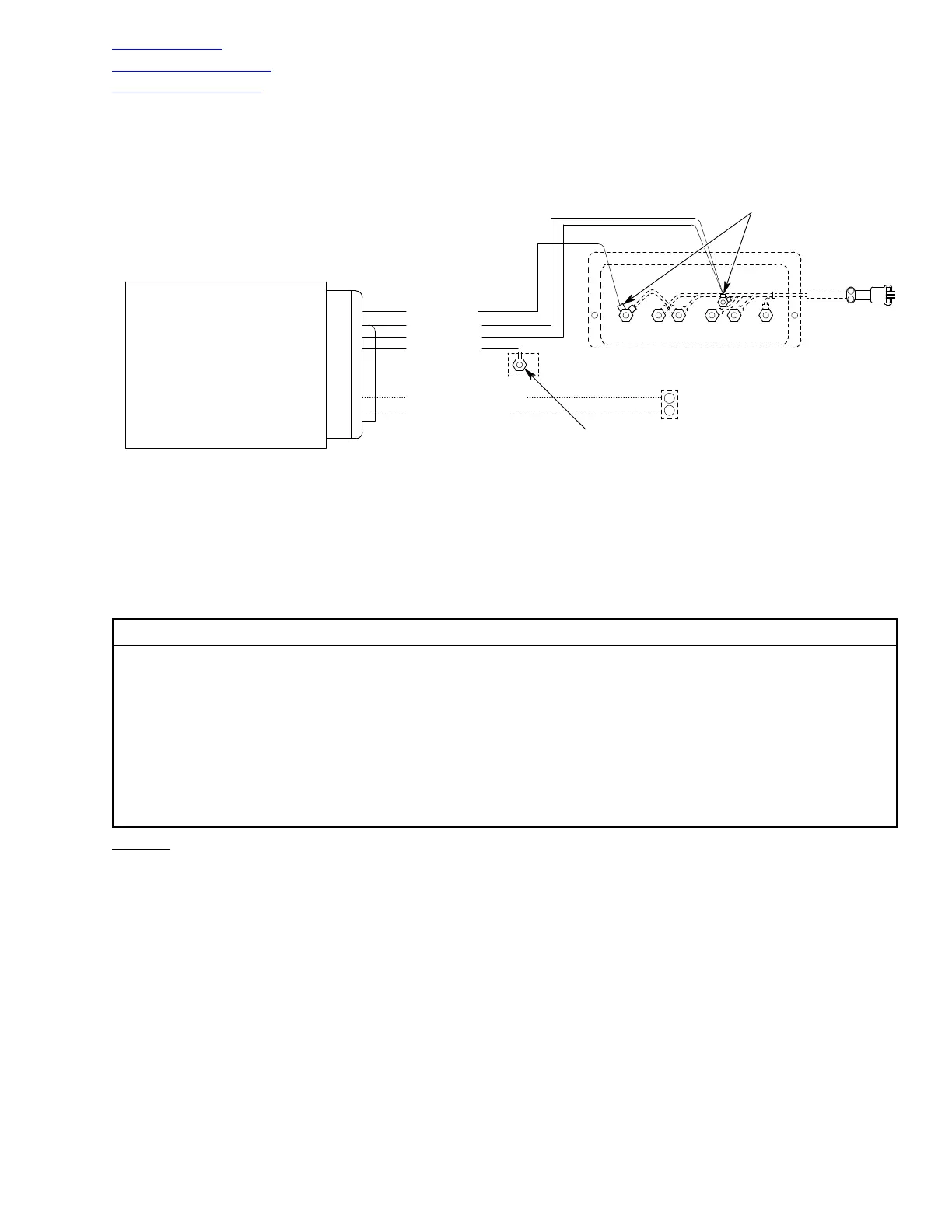

Figure 901. Analog Digital TOT Wiring Installation (Sheet 3 of 3)
