MD Helicopters 369D - Page 418

CSP-HMI-3 MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 96 TOC ]
Page 202
Revision 13
96-03-00
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G96-0030-1B
W1087A22
P19-J
M5
HOUR
METER
-
+
J1001F22 (S203-1)
P1201J
P1202J (MS27466T25F24S)
C
F
G
H
J
N
K
M1015B16 (K201-A)
P1067A16 (CB301-1)
P1068B16 (P1203-J)
L1012B16 (K101-A)
P1156B16 (SP20-A)
E1141A16 ALUMEL (GRN) TC300
E1141A16 CHROMEL (WHT) TC300

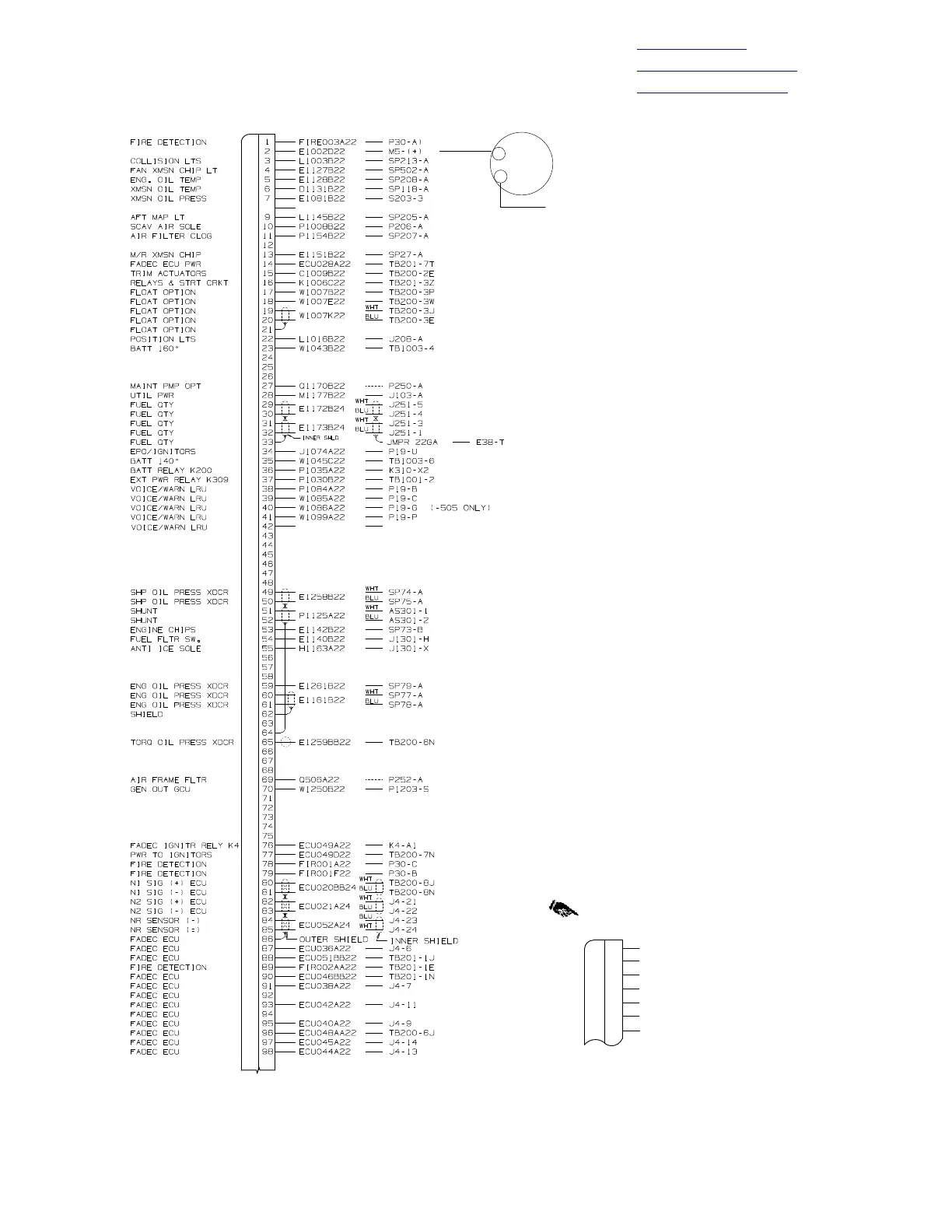

Figure 201. Fuselage Wiring Diagram − 600N (Sheet 1 of 14)
