96-03-00
Page 203
Revision 9
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G96-0030-2A
1 +5V IN
2 RETURN
3 SIGNAL OUT
4 CASE GND
P23
TORQUE XDUCER
WHT
BLU

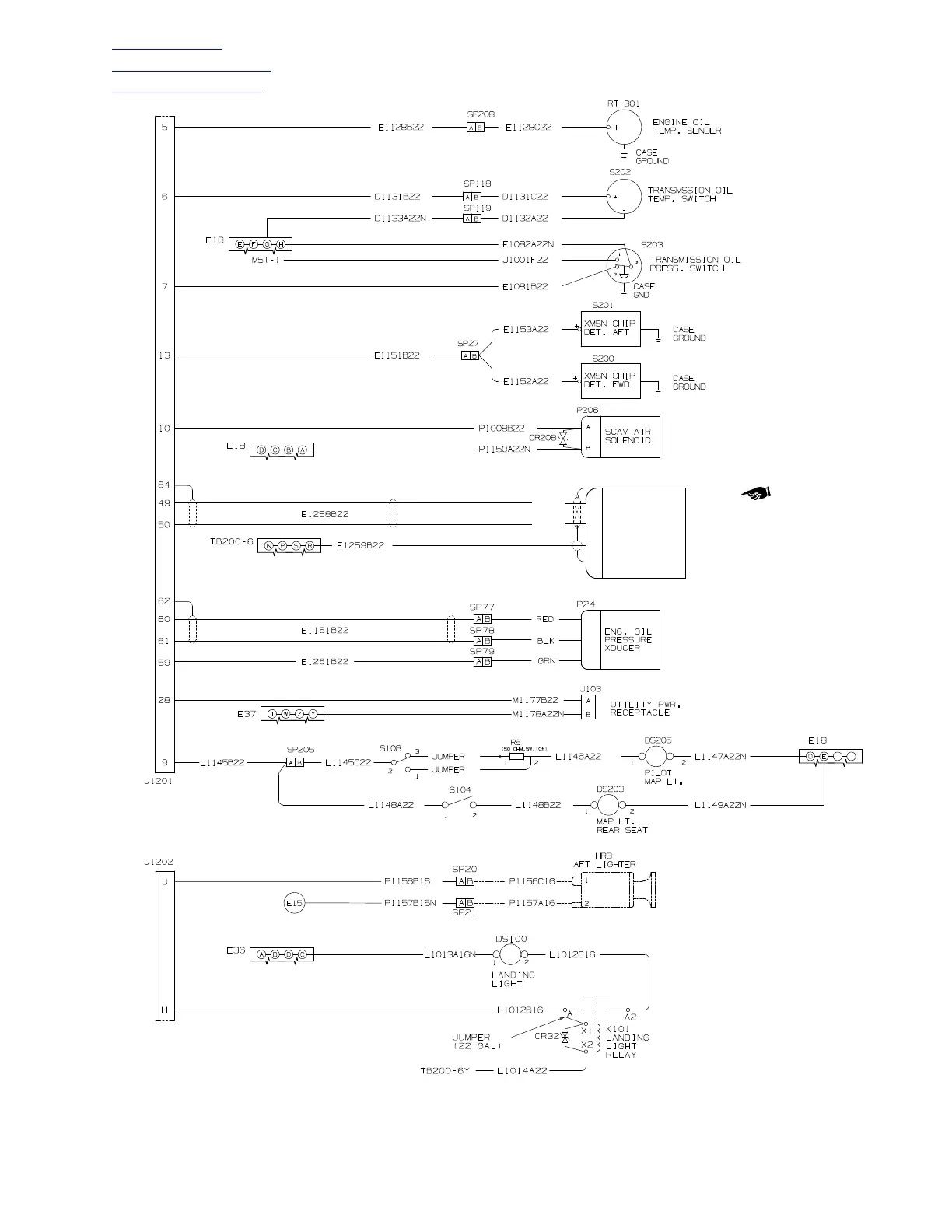

Figure 201. Fuselage Wiring Diagram − 600N (Sheet 2 of 14)
