96-10-00
Page 207
TR16-001
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G96-1002-1A
REVERSE
CURRENT
RELAY
OLEO SUPPORT
FITTING
ENGINE HARNESS
RECEPTACLE (REF)
GROUNDING
STUD
STA
124
START
RELAY
HELICOPTERS 369D 3-723
NOTE:
ASTERISK ( * ) INDICATES EXPOSED
ELECTRICAL STUDS, TERMINALS AND
ASSOCIATED CONNECTING HARDWARE
TO BE COATED WITH LACQUER (CM306)
AFTER ASSEMBLY.

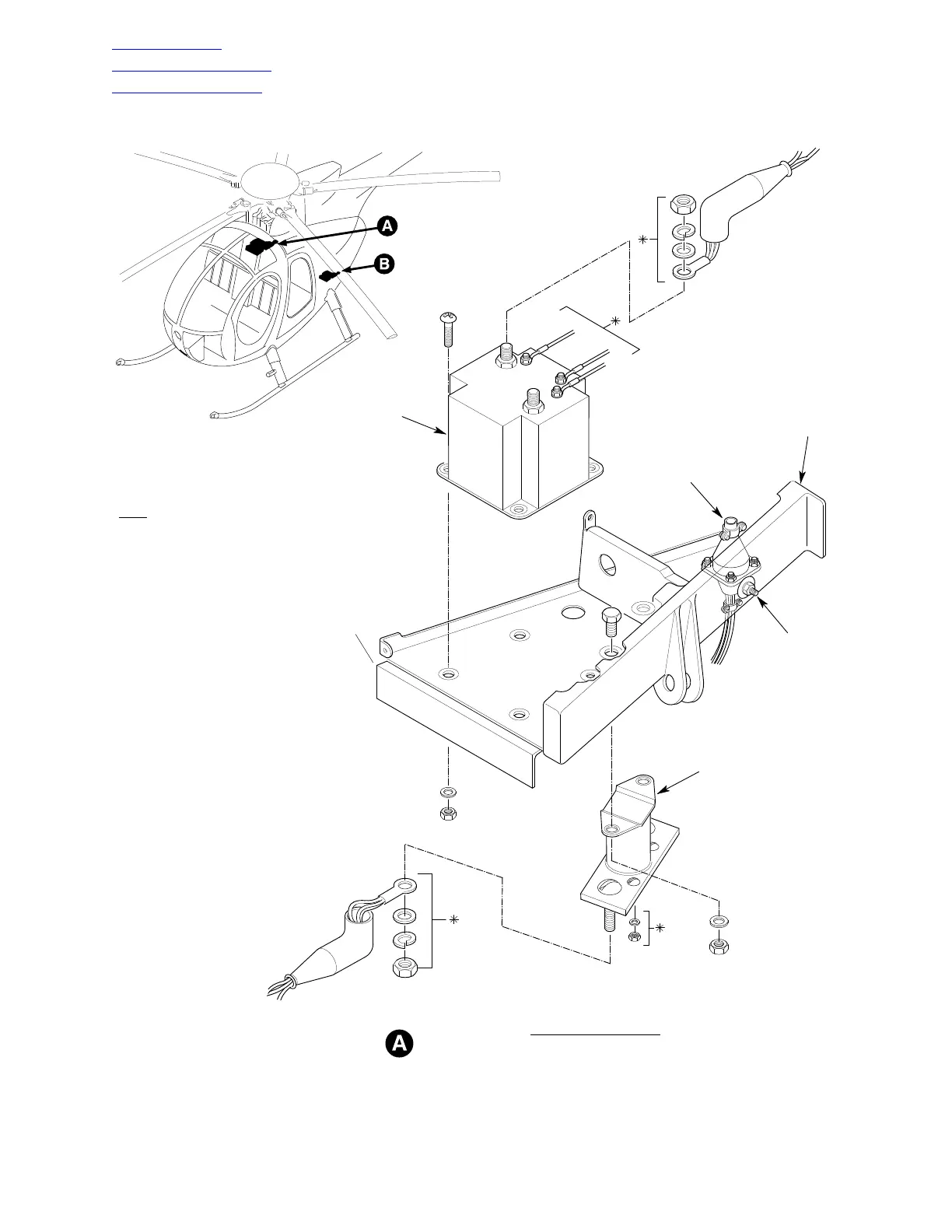

Figure 203. Engine Compartment Relays − Replacement (Sheet 1 of 2)
