AFT LINE CONNECTOR
K312 (EFFECTIVE ON
HELICOPTERS
369E 384-SUBS AND
369FF 076-SUBS).
K312
CB301
CB302
CB301
CB302
REVERSE
CURRENT
RELAY
J1301 (APPLIES TO
369E 384-SUBS AND
369FF 076-SUBS) J303
ENGINE HARNESS
RECEPTACLE (REF)
BRACKET
GROUNDING
STUD
BRACKET
(369A4255-11)
LOCATION
APPLIES TO
HELICOPTERS
369D 1150-SUBS;
369E; 369FF
STA
124
START RELAY
K301
GROUNDING
STUD
OLEO SUPPORT
FITTING
ENGINE HARNESS
RECEPTACLE
BRACKET
(369A4255-5)
LOCATION APPLIES
TO HELICOPTERS
369D 724-1149

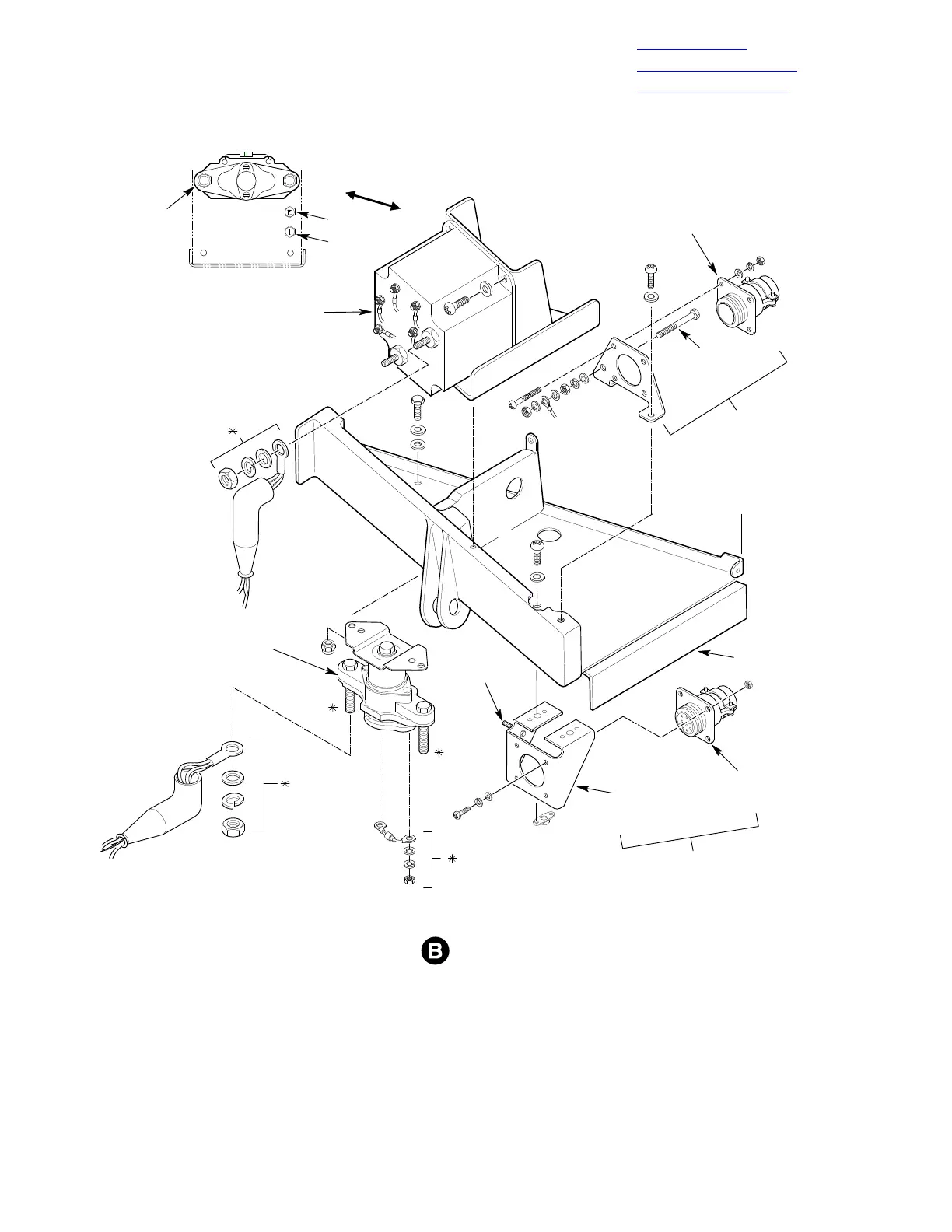

Figure 203. Engine Compartment Relays − Replacement (Sheet 2 of 2)
