CSP-HMI-3MD Helicopters, Inc.
MAINTENANCE MANUAL
[ Main Menu ]
[ HMI−3 Book TOC ]
[ Chapter 97 TOC ]
97-02-00
Page 907
Revision 12
The information disclosed herein is proprietary to MD Helicopters, Inc.
Neither this document nor any part hereof may be reproduced or transferred to
other documents or used or disclosed to others for manufacturing or any other
purpose except as specifically authorized in writing by MD Helicopters, Inc.
Copyright © 1999−2016 by MD Helicopters, Inc.
G97-0208-1
L
ACFT
C
PART OF 369D294373
HARNESS ASSY
TRACE WL 45.36 AT
CANT STA 78.50
369A4687 MIKE FILTER
AND TB600
369A4465-601
CABLE ASSY
-21 & 369A4412 TIE TO
EXISTING CABLES
WITH MS3367-1-9
STRAPS AS REQD
MS25281-5 CLAMP (2 REQD)
ATTACH TO MAP CASE BRKT'S.
REPLACE EXISTING SCREW WITH
NAS1096-3-9 SCREWS (2 REQD)
LOOKING AFT
BSC ONLY
ROUTE UNDER CIRCUIT
BREAKER PANEL. TIE TO
EXISTING WIRING WITH
MS3367-1-9 STRAPS AS REQD
CUT AWAY CORNER OF C/B COVER
TO ALLOW PASSAGE OF -5
HARNESS. PROTECT WITH
MS21200-IN GROMMET AS REQD

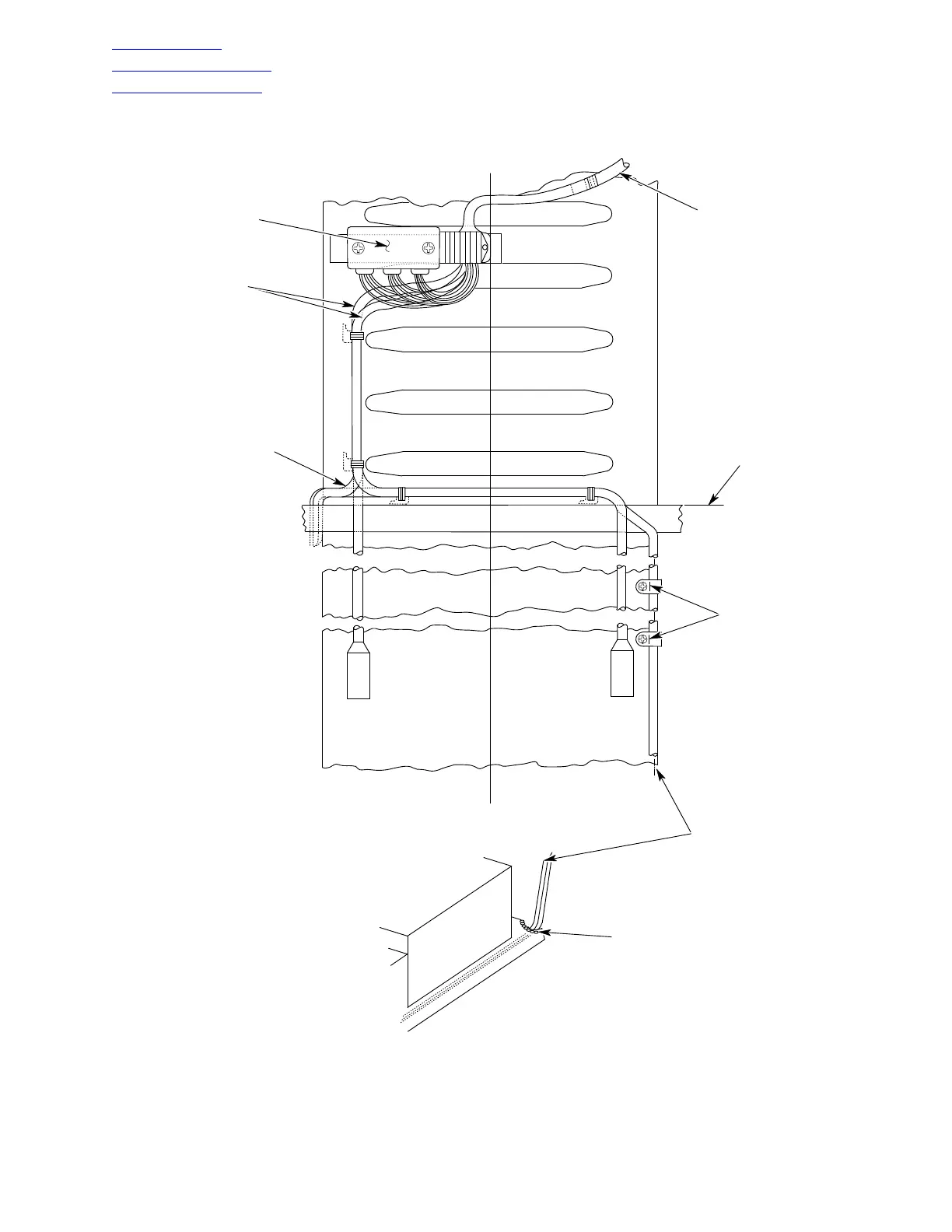

Figure 905. −21 Wiring Harness Routing (Sheet 1 of 2)
