NOTES:
5. JUMPER USED WHEN RCA VHF COMM RADIO IS INSTALLED.
4. ADAPTER NOT USED IN PILOT OR COPILOT’S POSITION.
ADAPTER IS USED ONLY IS PASSENGER IS IN COPILOT’S SEAT.
3. BASIC AND −11 SWITCHES ARE FUNCTIONALLY THE SAME, EX−
CEPT −11 HAS IMPROVED CONNECTOR. CORRESPONDING LETTER
AND NUMBER PIN IDENTIFIERS ARE MATCHED TO WIRE COLORS.
2. SWITCH (−11). WITH IMPROVED CONNECTOR, USED FOR ICS
FOR COPILOT. EFFECTIVE ON 369D, SERIAL NOS. 003−960.
1. SWITCH (BASIC) USED FOR ICS RADIO FOR COPILOT
EFFECTIVE ON 369D MODELS, SERIAL NOS. 003−960.
7. FOR FRONT SEAT PASSENGER, USE ADAPTER.
USE OF ICS ADAPTER IS FOR INTERCOMM ONLY.
6. WIRE STOWED.
8. SOLID LINE ( ) INDICATES WIRING FOR ICS;
DASHED LINE ( ) INDICATES BASIC SHIP WIRING;
AND PHANTOM LINE ( ) REPRESENT
OPTIONAL EQUIPMENT WIRING.
9. WIRING DIAGRAM EFFECTIVE ON 369D MODEL.
SERIAL NOS. 003−1149.
10. 369H92492−21 SWITCH, DEPICTED BELOW, IS
EFFECTIVE ON 369D MODELS, SERIAL NOS. 961−1149.
YELLOW AND BLUE WIRES ARE REMOVED.
G97-0602-1
RV539A22 BLU OR GRN
369H92492 BASIC (NOTE 1, 3)
1234 5678
1
2
4
3
CO-PILOT
(LEFT)
LO
HI
LO
HI
E14
GRN
YEL
BLU
WHT
BLK
RED
LO
HI
HI
LO
PILOT
(RIGHT)
BRN
J544
GRN
RED
WHT
BLK
(NOTE 4)
369H92492 - 11 (NOTE 2, 3)
1234 5678
1
2
4
3
CENTER
FRONT
HI
GRN
YEL
BLU
WHT
BLK
RED
J545
J513
LO
HI
LO
RIGHT
369H92492-11 (NOTE 2, 3)
REAR
LO
HI
LO
HI
12345678
1
2
4
3
GRN
YEL
BLU
WHT
BLK
RED
J546
LEFT
369H92492-11 (NOTE 2, 3)
REAR
1234 5678
LO
1
2
4
3
HI
LO
HI
GRN
YEL
BLU
WHT
BLK
RED
J547
4
2
1
3
J547
369H92492-21 (NOTE 10)
1234 5678
1
2
4
3
GRN
WHT
BLK
RED
D
A
E
C
F
B
1
2
4
3
5
7
6
(NOTE 6)
RV516E22
RV506D22
RV514E22
RV510A22
RV539A22/RED
E14
RV531A22N
GRN
RED
WHT
BLK
RV532A22N
RV507C22
RV506C22
RV514F22
RV540A22
RV510B22
RV540A22/RED
(NOTE 6)
RV526C22
RV514G22
RV525C22
RV510H22
RV538A22/BLU OR GRN
RV538A22/RED
(NOTE 6)
(NOTE 6)
E15
RV526C22
RV514H22
RV528C22
RV510J22
RV537A22/BLU OR GRN
RV537A22/RED
RV527C22
XMIT
ICS
XMIT
ICS
RV534A22N
2ND POS
2ND POS
1ST POS
1ST POS
2
1
3
1
2
3
A
B
C
D
E
F
TB7-7
COPILOT ICS KEY
PILOT ICS KEY
TB7-1
C
D
A
B
F
E
COPILOT MIC HI
PILOT MIC HI
CENTER FRONT
MIC HI
TB7-10
AUDIO COMMON
E14
CENTER FRONT KEY
C
D
A
B
F
E
C
D
A
B
F
E
TB7-8
RV530A22N
RIGHT REAR ICS KEY
C
A
B
TB7-9
E15RV536A22N
C
A
B
D
TB7-11
RIGHT REAR MIC HI
LEFT REAR ICS KEY
P130 J130
P109 J109
1
2
4
3
D
A
E
C
F
B
D
A
E
C
F
B
P
W
T
P
W
T
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

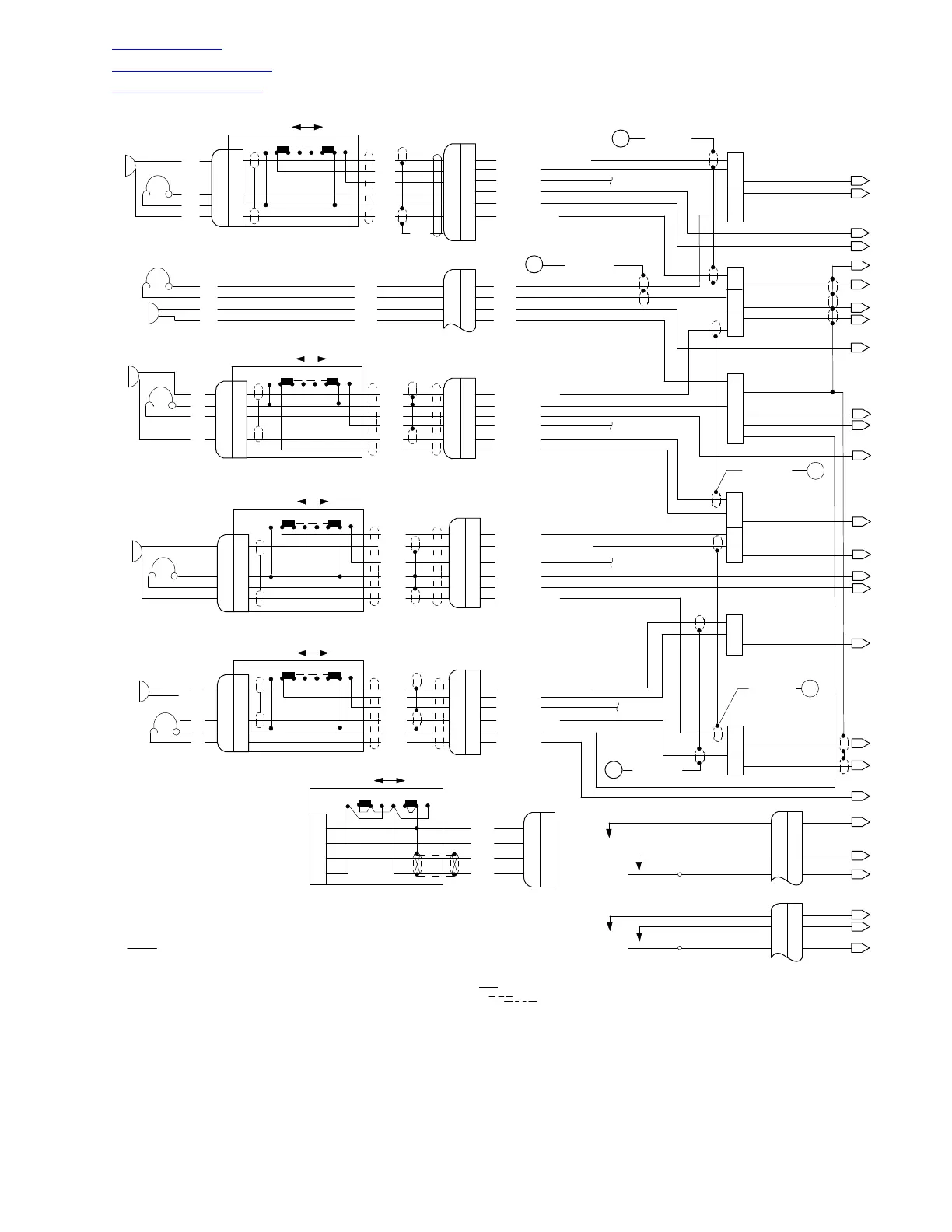

Figure 101. Wiring Diagram − Integrated Interphone Communication System (369D Only)
(Sheet 1 of 3)
