TA3H, TA3SH & TA3.5SH Page 7 - 3
7. Standard Operating Procedures

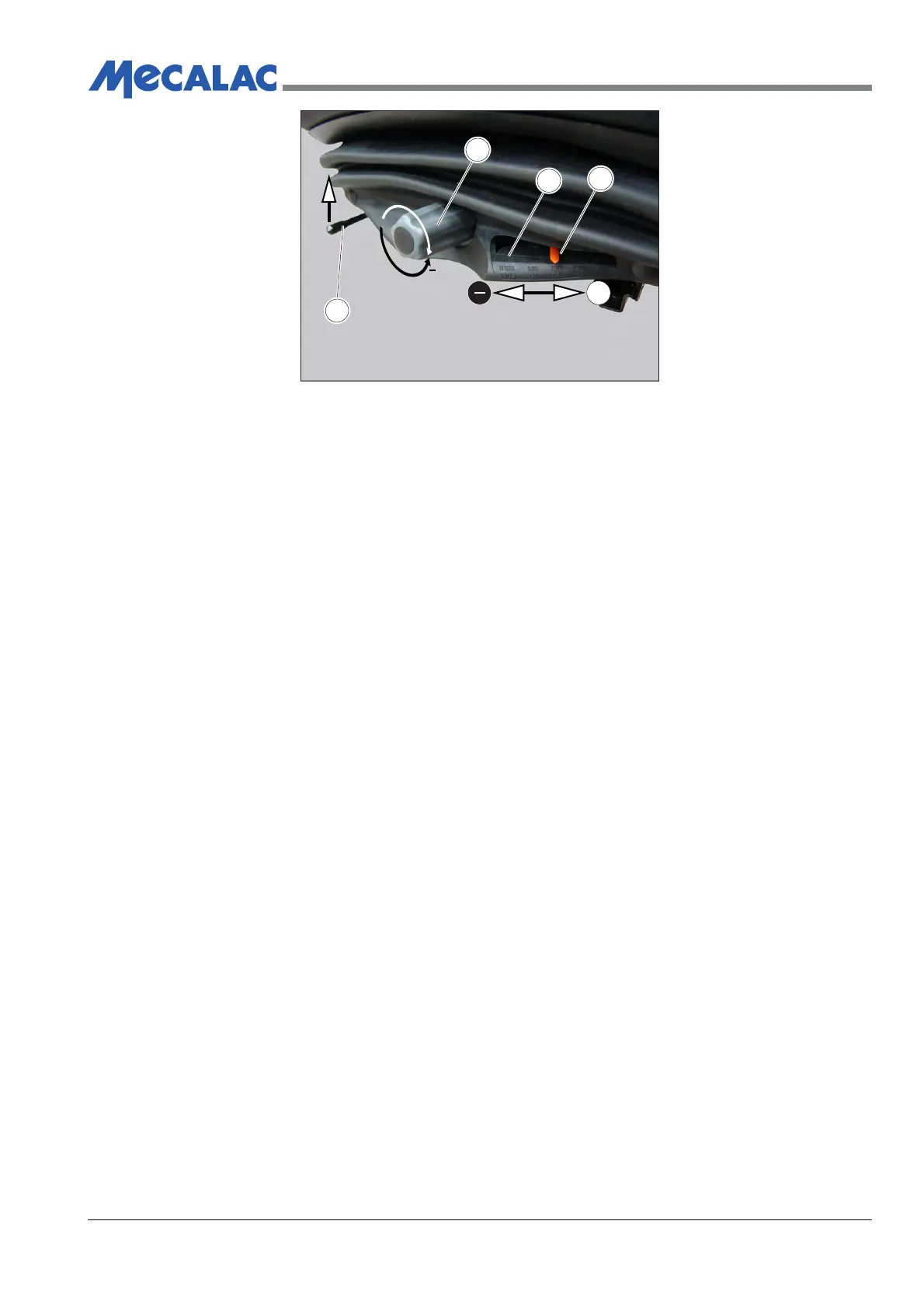

Figure 7.3. - Seat Adjustment
1. Fore and aft adjustment
2. Weight adjustment knob
3. Scale
4. Pointer
(1) Seat Adjustment
Refer to Figure 7.3. Lifting the lever (1) allows the seat to move forwards or backwards to suit the
leg length of the operator. When the lever is released the seat is locked in position.
(2) Weight Adjustment
The weight adjustment knob (2) is used to adjust the seat characteristics to suit the weight of the
operator.
Turning knob clockwise adjusts the seat for the larger person and anticlockwise for the smaller
person.
When the knob is turned, the pointer (4) moves to allow the operator to select the correct weight
from the scale (3).
If the seat weight adjustment is not set, the Operator may experience discomfort or personal
injury.
The engine will not start unless the seat is adjusted correctly for the operators weight and the
operator is seated.
(3) Backrest Angle Adjustment
Refer to Figure 7.4. Lifting the lever (1) allows the back of the seat to be pushed forwards or
backwards to suit the preference of the operator. When the lever is released the seat is locked
in the selected position.
