• Networking - Congure the IP settings of the HELIOS Processor (see IP Addressing for more details on how these
controls are used.

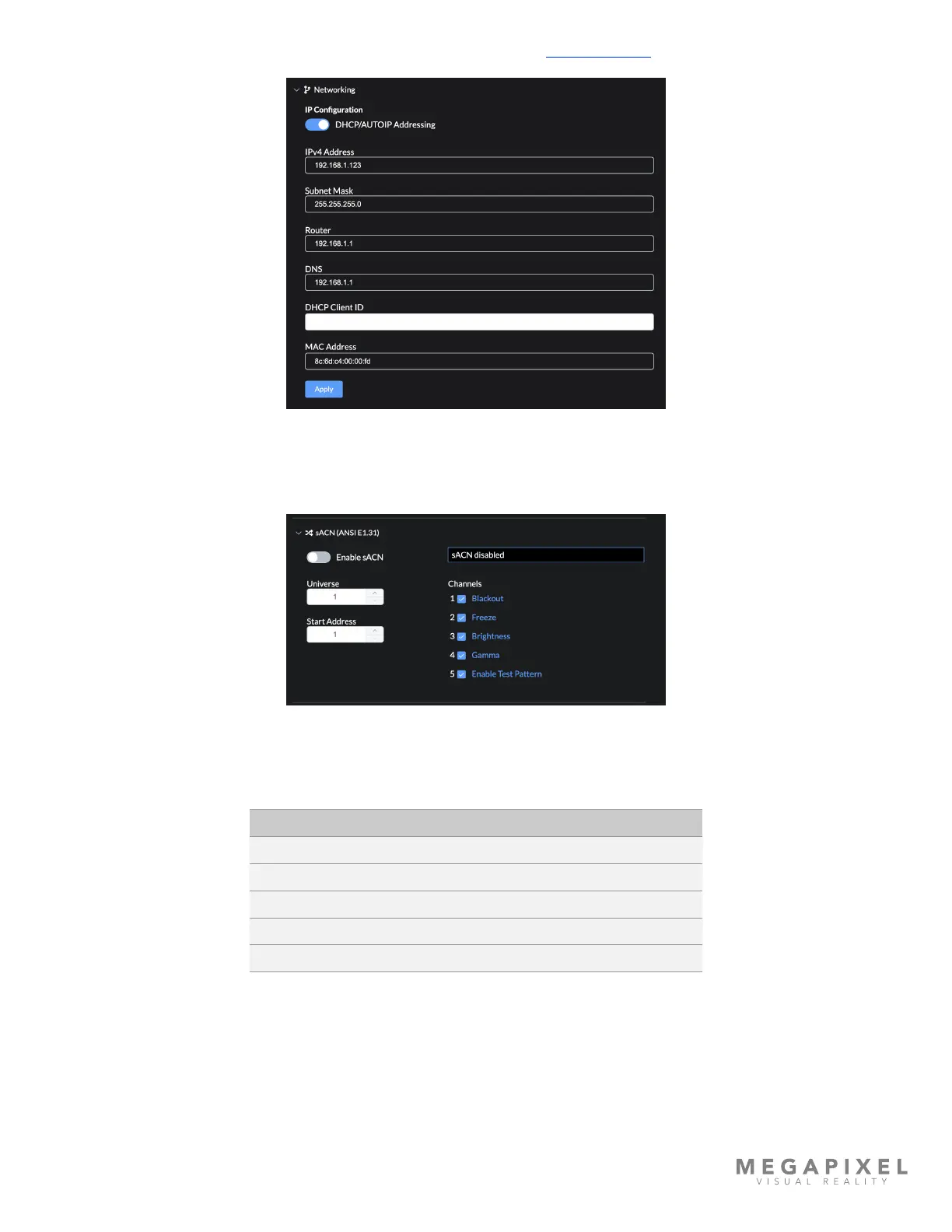

Figure 88: Networking
• sACN (ANSI E1.31) - Use the sACN or E1.31 protocols to control the HELIOS Processor. When sACN is active, GUI
controls are locked out.
Figure 89: sACN
The table below shows how HELIOS will behave when it receives the listed values.
Channel Function Value
1 Blackout 0 = Normal operation | 1 - 255 = Blackout
2 Freeze 0 = Normal operation | 1 - 255 = Freeze
3 Brightness Slider position % mapped to sACN
4 Gamma Slider position % mapped to sACN
5 Test Pattern 0 = Normal operation | 1 - 255 = Show test pattern
