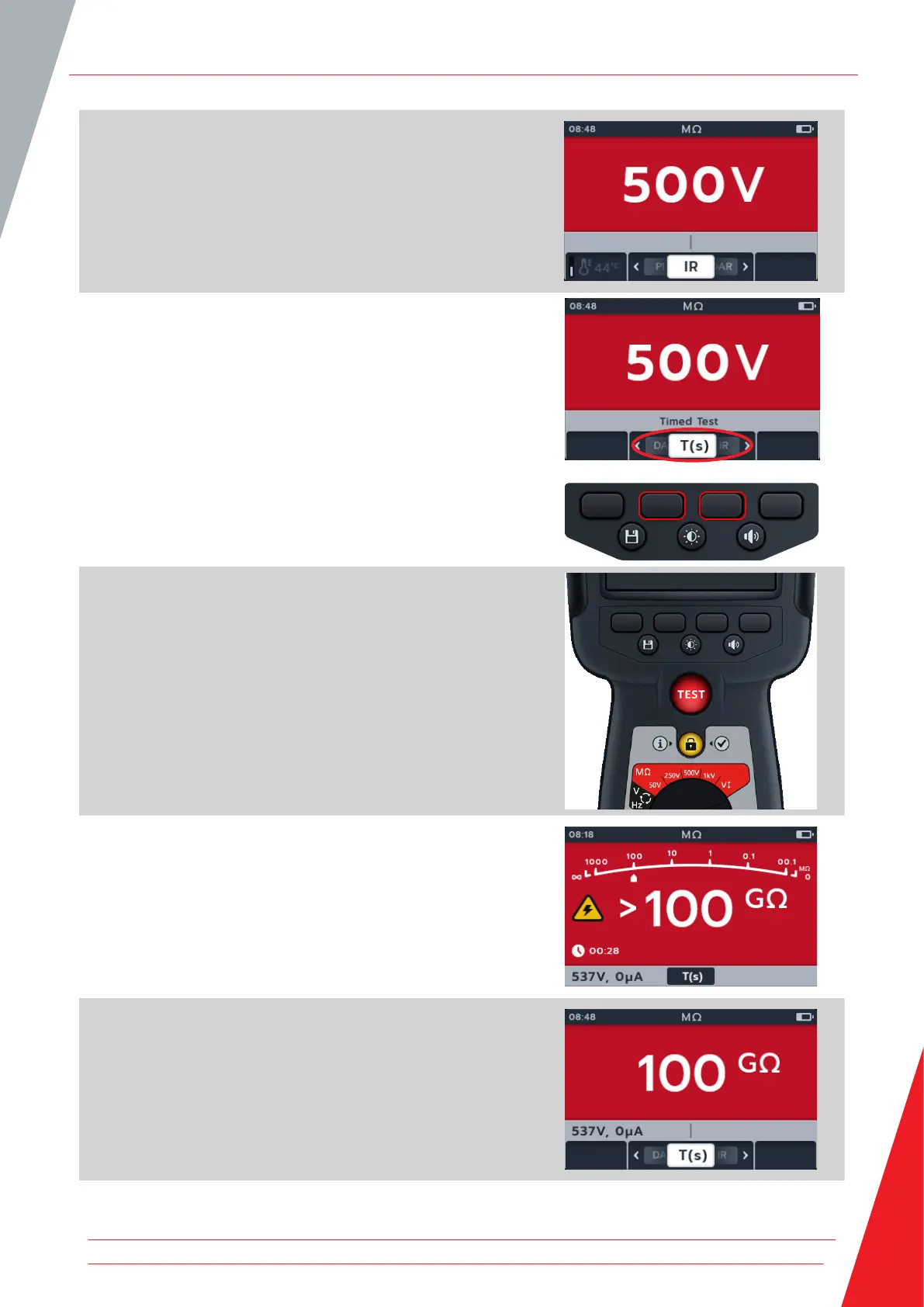

4. The display will show the selected voltage, in this case 500 V.
5. Press soft keys 2 and 3 to move the carousel left or right
through sub-modes to T(s) (Timed Test).
NOTE: The full title text of the sub-mode will appear in the
secondary field for a few seconds.
6. To start the test press the TEST button.
The clock will appear in the bottom left corner of the primary
field. The Timed test is user configurable and can run for
1,2,3,4,5,6,7,8,9, or 10 minutes Refer to 14.1.6 Timed Insulation
on page 73
A warning triangle will flash on screen.
NOTE: The test can be stopped at any time by pressing the TEST
button.
7. During the tests,
The primary field displays the test results.
The secondary field displays actual voltage output and the
current measured.
8. When the test has completed,
The primary field displays the test results.
The secondary field displays actual voltage output and the
current measured.
Insulation Resistance Tests
www.megger.com 23
