9. Inductance (L); Capacitance (C); Resistance (R) (LCR)
NOTE: Results of measurements can be adversely affected by impedances of additional operating circuits connected
in parallel or by transient current.

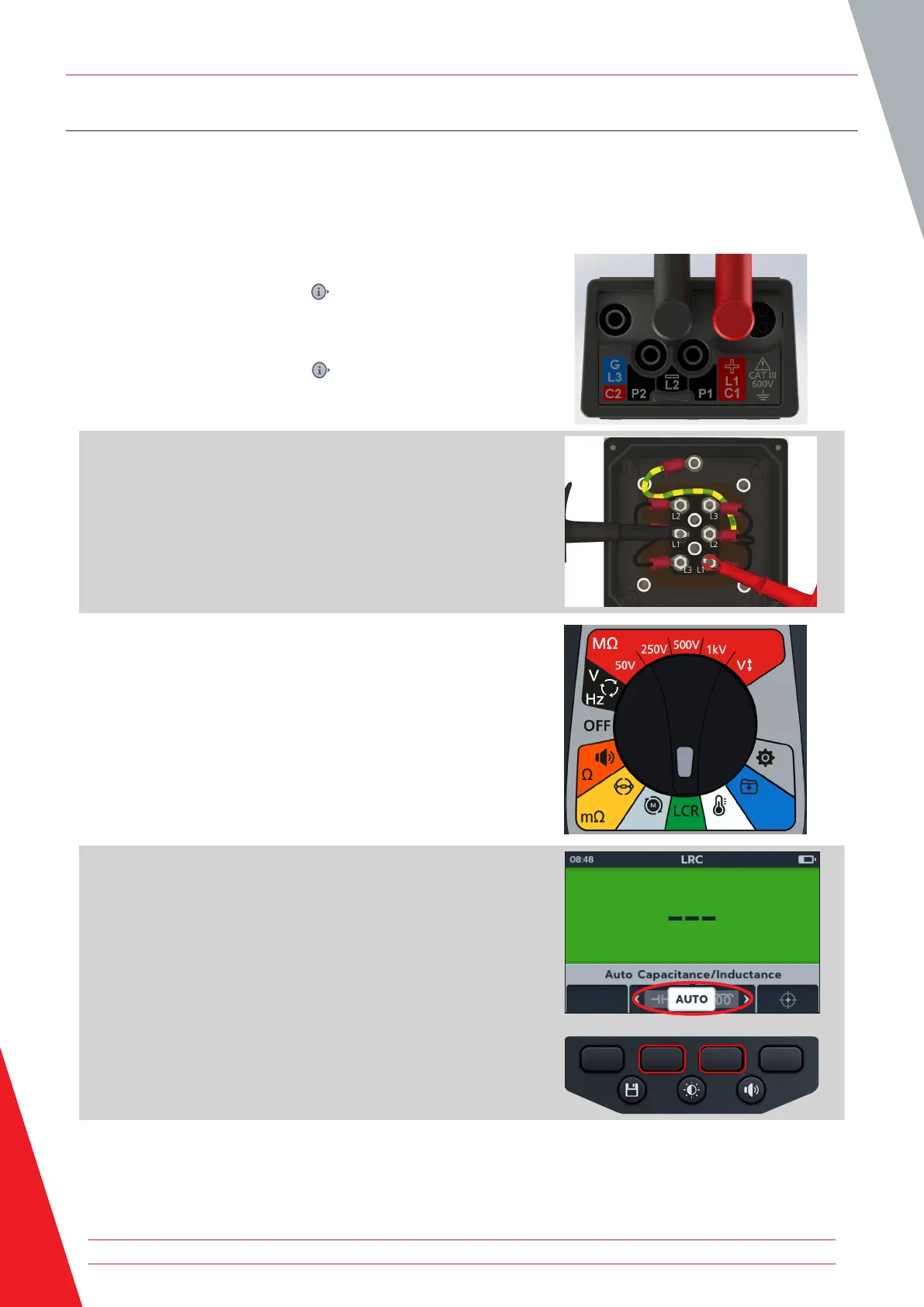

9.1 Auto
1. Connect the test leads to the MTR105.
1.1. Press the Information ( ) button to view the lead set
up diagram.
NOTE: When the diagram is displayed a test cannot be
performed. Press Information ( ) button to return to the test
screen.
2. Connect the test leads to the unit under test.
NOTE: The connection is for illustrative purposes only showing
connection across phase 1.
3. Turn rotary switch to select the LCR position.
4. Press soft keys 2 and 3 to move the carousel left or right
through sub-modes to auto capacitance / inductance test.
NOTE: The full title text of the sub-mode will appear in the
secondary field for a few seconds.
Inductance (L); Capacitance (C); Resistance (R) (LCR)
48 www.megger.com
