Battery not chargeable
The battery settings are not correct to allow battery charging.
1. Check the correct battery type is in the instrument, Refer to
15.4 Battery and Fuse Replacement on page 78
2. Check the battery settings are NiHM, Refer to 14.2.2 Battery
Technology on page 73

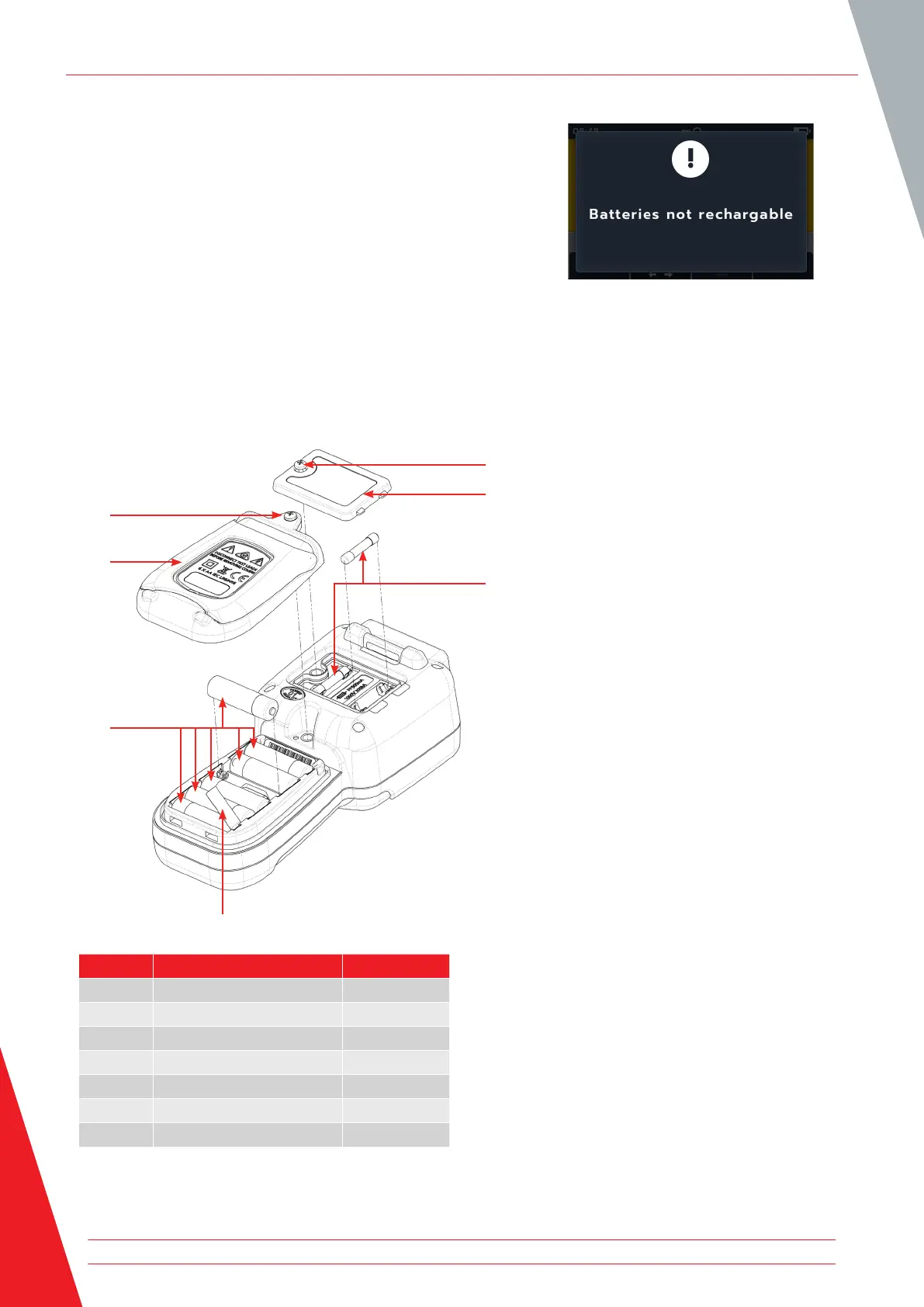

15.4 Battery and Fuse Replacement
Warning: Remove all test leads before removing either the fuse or battery covers.
Caution: Battery cells should not be left in the instrument if remaining unused for an extended period.
1
2
4
3
5
6
7
No. Description Quantity
1 Screw, Captive 1
2 Cover, Battery 1
3 Battery isolation tab 1
4 Battery 6
5 Screw, Captive 1
6 Cover, Fuses 1
7 Fuses 2
Maintenance
