If a voltage between 0 V and 3 V is detected, the buzzer will sound and background flash /or background flash
depending on what buzzer mode is activated.
If a voltage above 3 V is detected, the buzzer will NOT sound and the background will not flash, the display will
show “OL”.
NOTE: The user is responsible for connecting test probes across the diode under test. There is no information
displayed in the secondary field at this point. The only information to display is the diode drop voltage if the

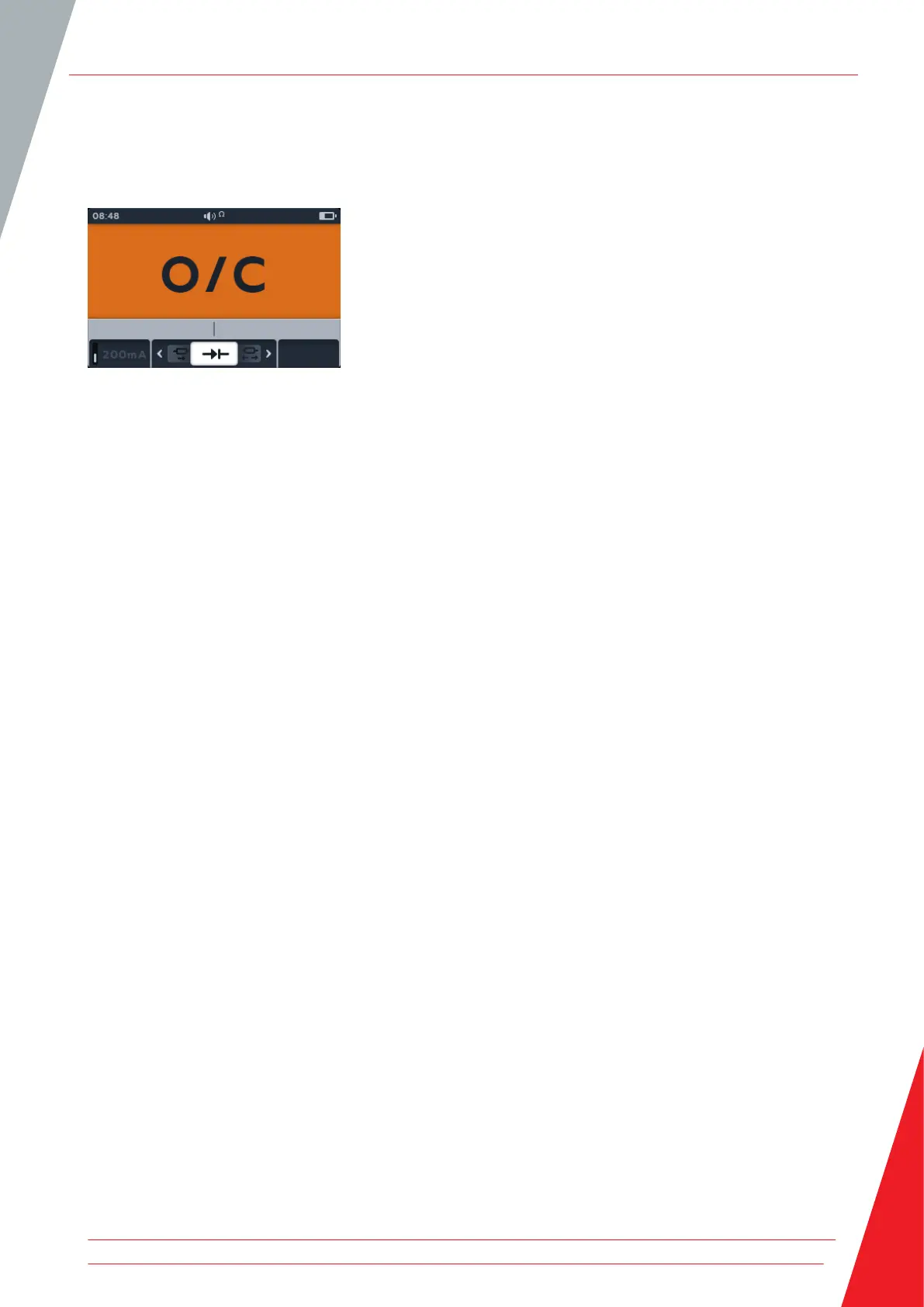

instrument senses a voltage across the device. If no current flows the main display will show “O/C”.
Continuity
