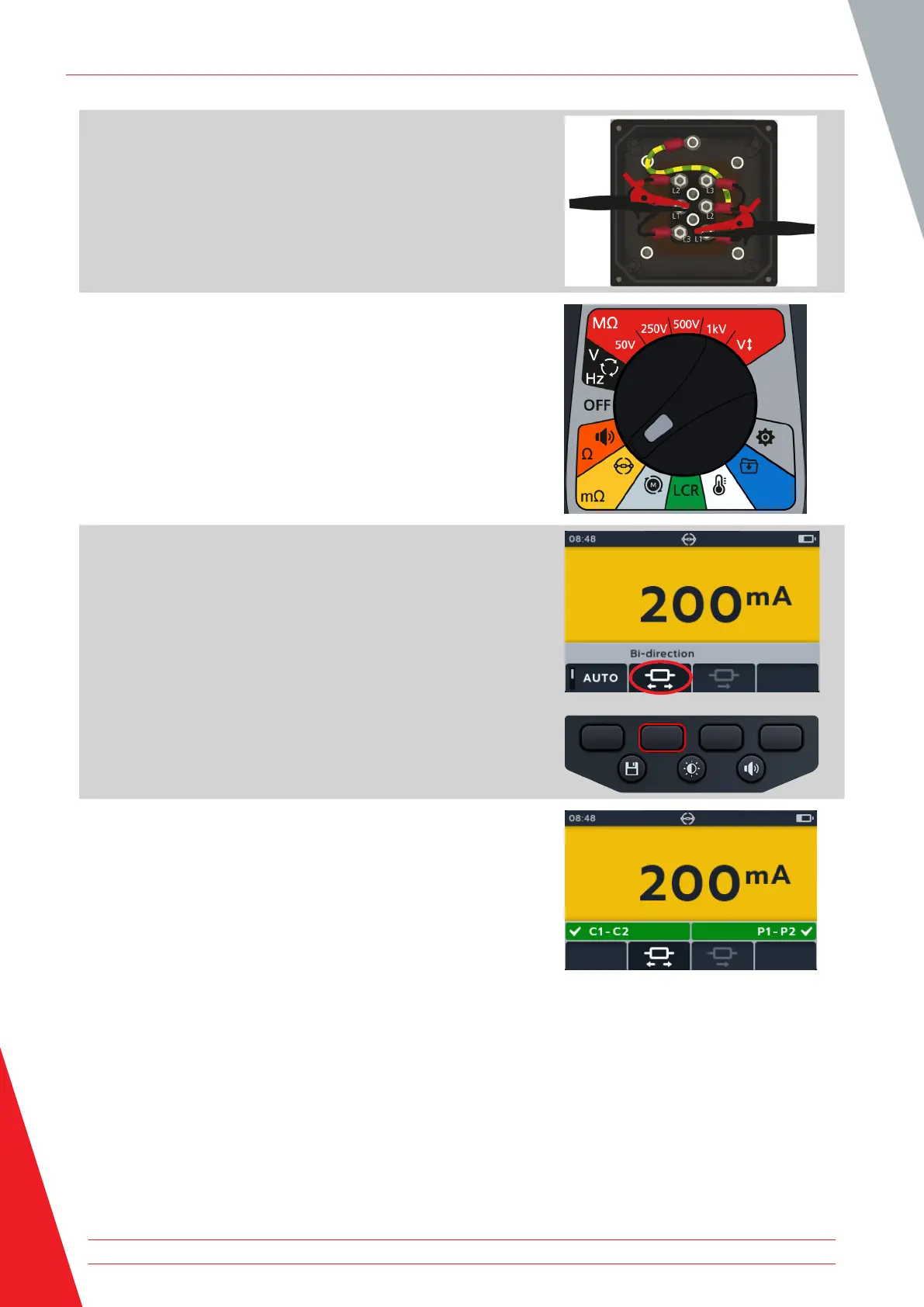

2. Connect the test leads to the unit under test.
NOTE: The connection is for illustrative purposes only showing
winding resistance across phase 1.
3. Turn rotary switch to select the DLRO (mΩ) position.
4. Press soft keys 2 to choose the sub-mode bi-directional.
NOTE: The full title text of the sub-mode will appear in the
secondary field for a few seconds.
5. If there is a continuity reading detected for C and P
connections the secondary fields will display with a tick and
background will be green.
DLRO Digital Low Resistance Ohmmeter
42 www.megger.com
