5. Press soft key 1 to enable auto mode.
6. If there is a continuity reading detected for C and P
connections the secondary fields will display with a tick and
background will be green.
7. If all the leads are connected correctly, test will start
immediately, runs for a few seconds and then automatically
stop.

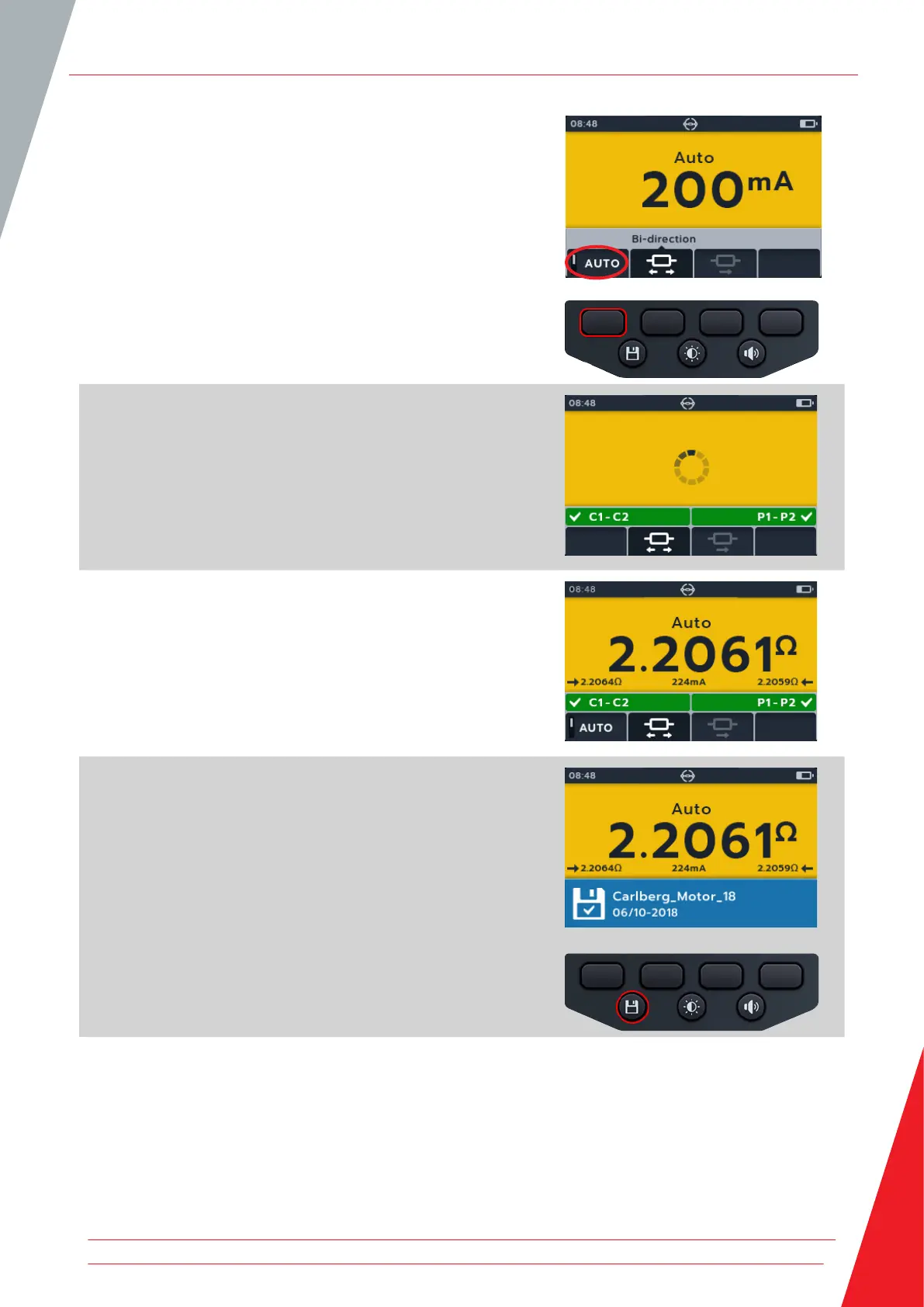

8. During the tests,
The primary field displays a rotating circle to show a test
is underway
The secondary field displays the continuity on the Current
(C1-C2) and potential (P1-P2) circuits
9. When the test has completed,
The primary field displays the result for current and
resistance in each direction and an average of the two.
The secondary field displays the continuity on the Current
(C1-C2) and potential (P1-P2) circuits.
10. The result can be saved by pressing the SAVE button. A
message will inform you the data was saved and which asset
ID it was saved to.
11. To restart the test, re-connect to a new test piece and the
test will start automatically.
