Meler B4 VS - Main Components

FOCKE MELER GLUING SOLUTIONS
2-4
INTRODUCTION

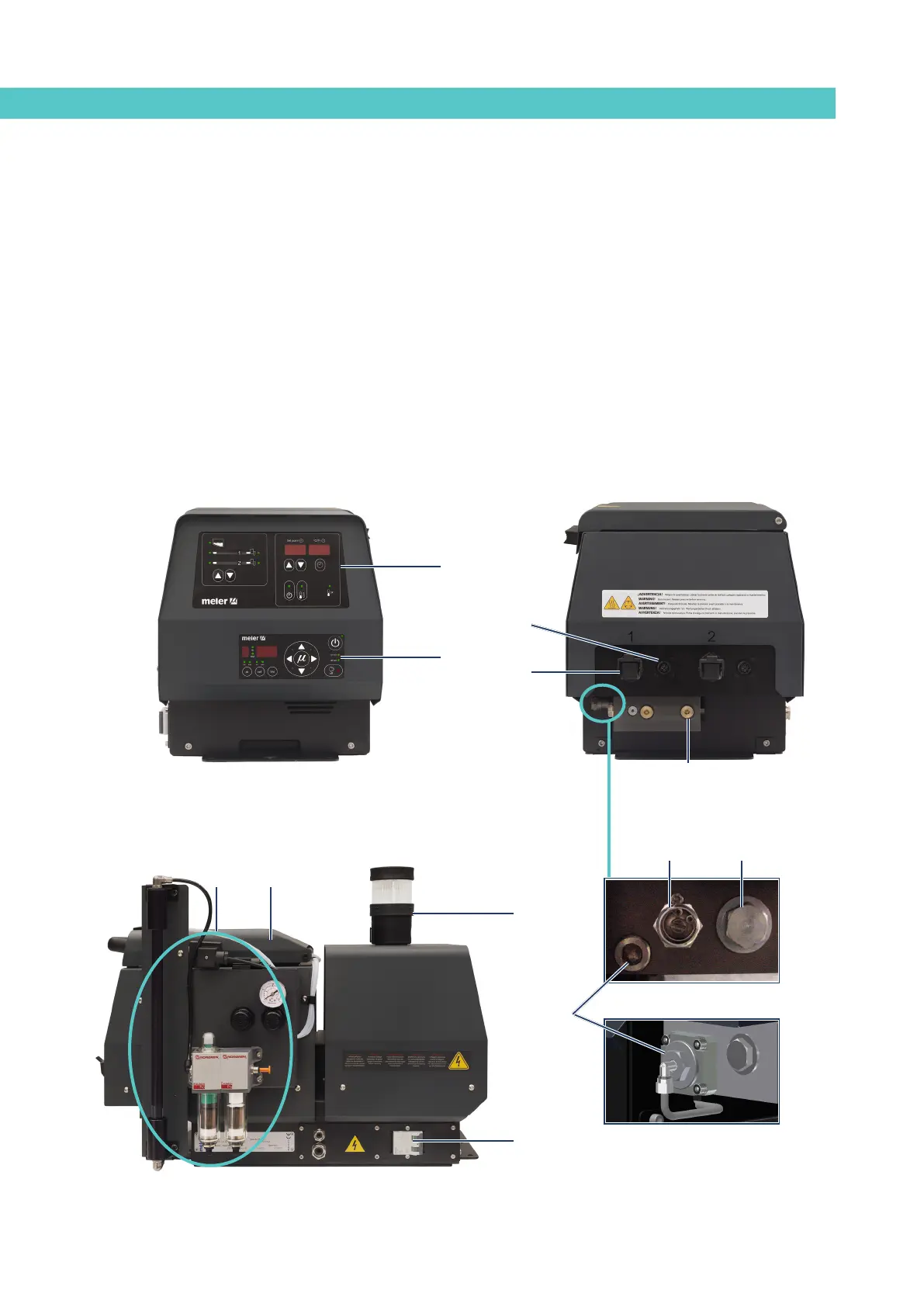

Main components
1. Front control card.
2. Pumping control card.
3. Hose- applicator electrical connection.
4.Hose- applicator hydraulic connection.
5. General power switch and power supply
6. Pressure relief valve (for non-moisture curing
adhesives).
7. Purge valve.
8. Filter pump.
9. Pump system connection switch (optional).
10. Warning light (optional).
11. Air tight lid (optional).
12. Air drying system (optional).
