Meler B4 VS - Distributor Unit

FOCKE MELER GLUING SOLUTIONS
9-4

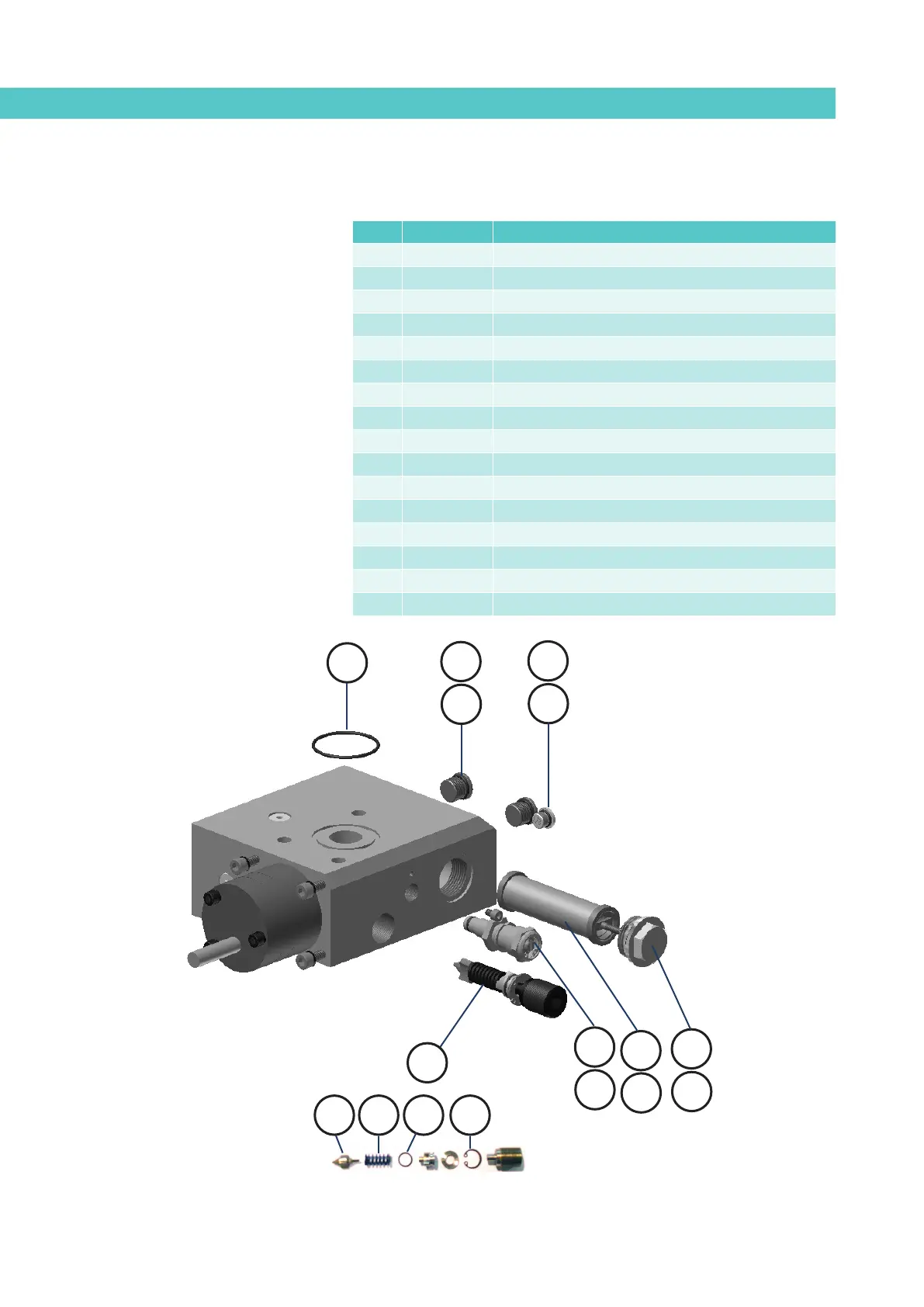

SPARE PART LIST
B. DISTRIBUTOR UNIT
Nº Ref. Descriptionn
1 150113810 Relief valve assembly
1.1 12330087 Relief valve assembly o-ring
1.2 150112820 Relief valve red spring
1.3 150026060 Relief valve closing needle
1.4 150090390 Relief valve seeger ring
2 150090360 Tank-distributor seating o-ring
3 10100082 Pump plug with o-ring
3.1 10100083 Pump plug o-ring
4 10120095 Plug with balancing valve o-ring
4.1 10120096 Balancing valve plug o-ring
5 150029000 Filter plug with o-ring
5.1 10100053 Filter plug o-ring
6 10100090 Pump filter unit
6.1 10100051 Pump filter 100 mesh
7 150026330 Complete purge valve
7.1 150026340 Purge valve o-ring
1
3
2
4
1.11.2 1.41.3
4.1
3.1
7
7.1
5
5.1
6
6.1
