Meler B4 VS - Air Dryer System

A-19
AIRTIGHT LID MA-5082-ENG B4 VS MANUAL APPENDIX

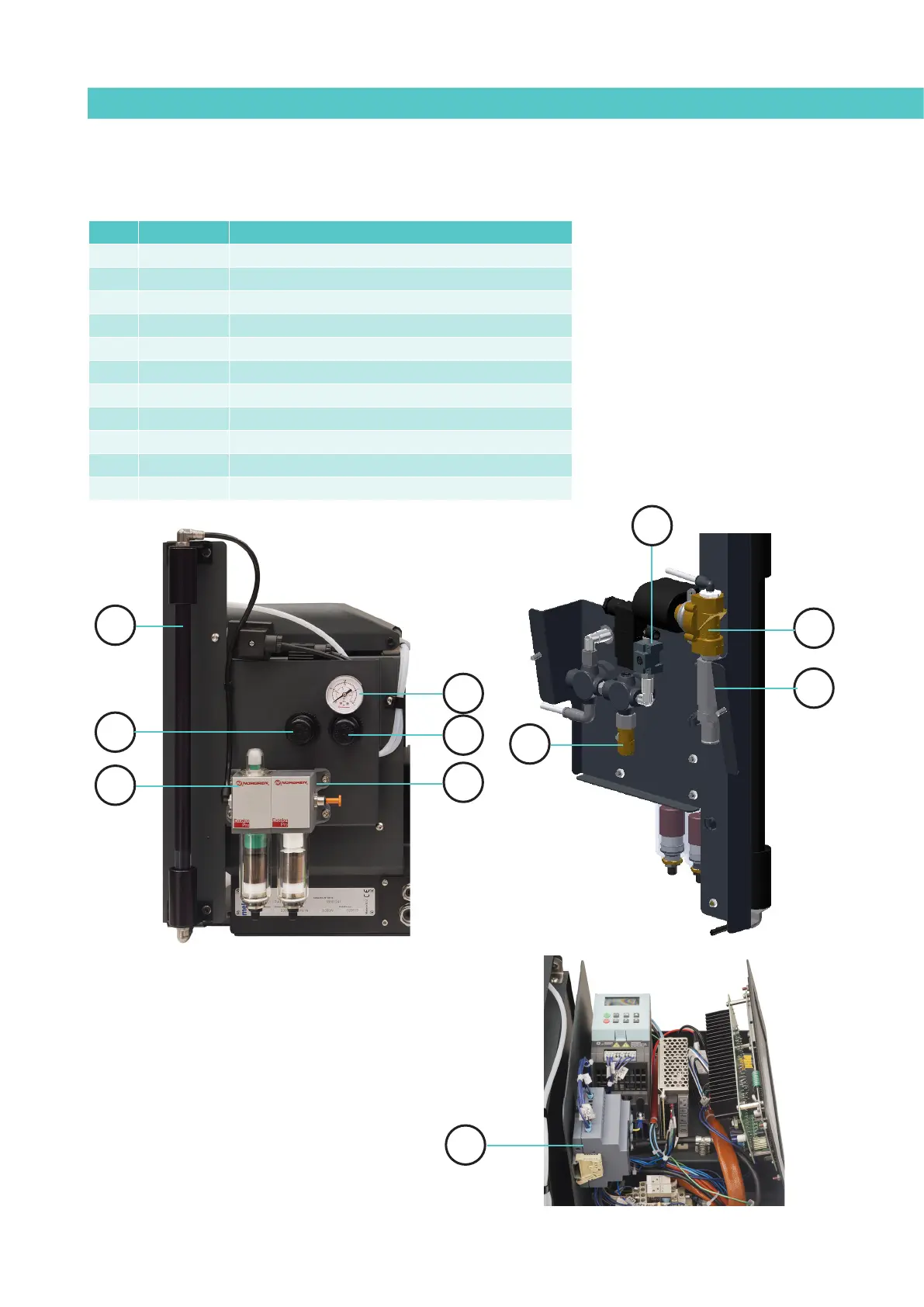

B. AIR DRYER SYSTEM
Nº Ref. Description
1 150110060 Air dryer cartridge W07M
2 150110400 Air filter Norgren F92G-NNN-AT1 (G1/4)
3 150110390 Air filter Norgren F92C-NND-AT0 (G1/4)
4 10110031 Pressure regulator
5 150029540 Pressure regulator 0,1-0,7 bar
6 150029550 Pressure gauge 0-1,6 bar
7 150028420 Solenoid valve 3/2 1/8 24V DC 5.4W
8 150028400 Solenoid valve 2/2 NA 24V DC 18W
9 150028410 Non-return valve H/H 3/8’ 0.5 bar
10 150028380 Pneumatic valve 0.5 bar 1/4’
11 150117130 Programmable relay LOGO
3
4
6
5
2
1
10
7
10
8
9
