4-22
MELTER OPERATION

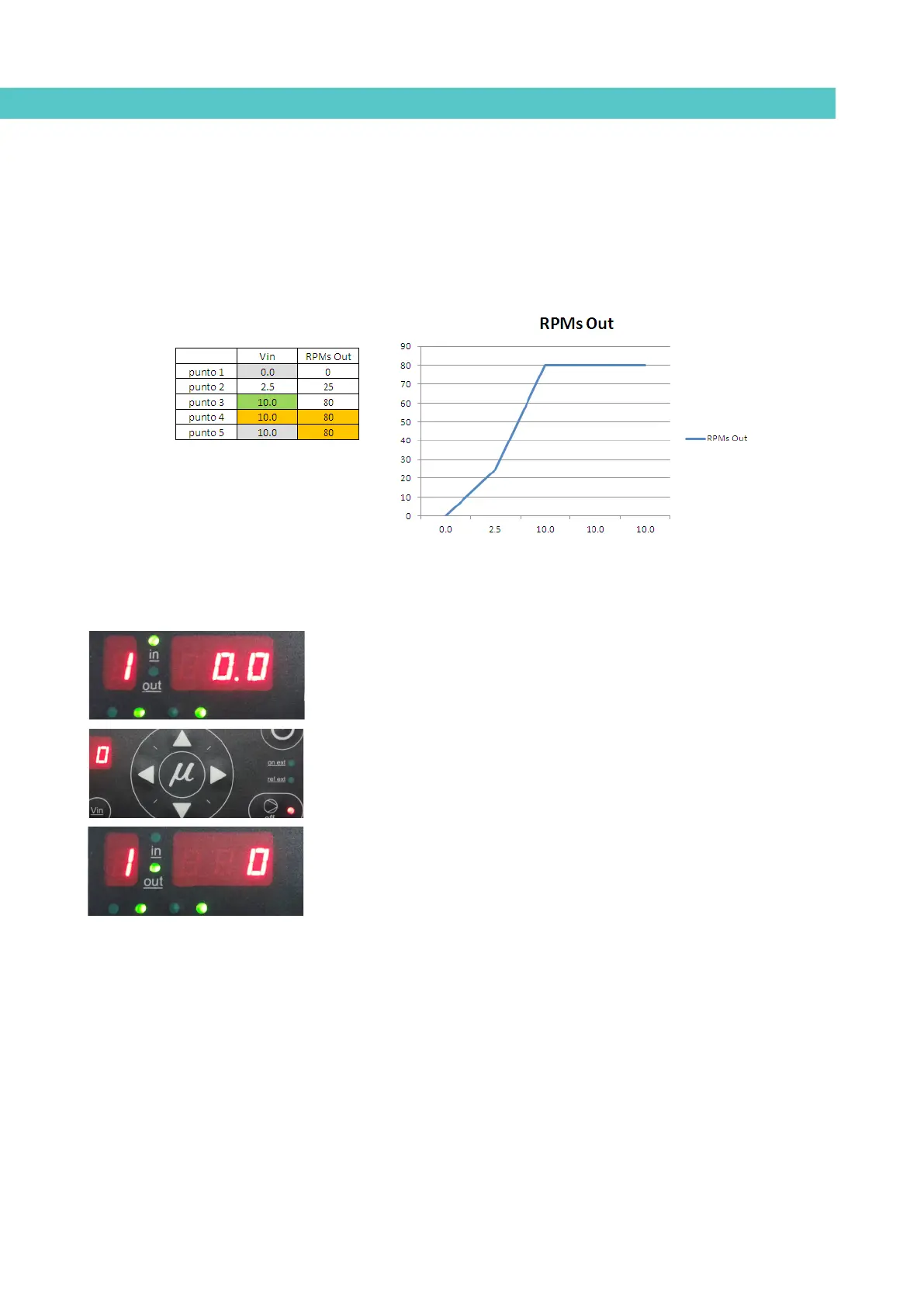

Programming speed ramp
To access this menu and program the different points corresponding to the
voltage-speed ratio, you must select external reference (‘ref ext’ LED is
illuminated) and press the right arrow key. Then the following message is
displayed:
The IN LED to the position ON and the OUT LED to the position OFF, 1 000,
NOT EDITABLE; press the right arrow to go to the next point:
The IN LED to the position OFF and the OUT LED to the position ON, 1 XXX,
which means that the output speed is being programmed for point 1 (when the
input voltage is 0 V); with the up/down arrow keys the value may be modified,
within a range from 000 to MAXIMUM RPM; press the right arrow key to go to
the next point:
The IN LED to the position ON and the OUT LED to the position OFF, 2 XXX,
which means that the input voltage value is being programmed for point 2;
with the up/down arrow keys the value may be modified, within a range from
00.0 to 10.0 (to one decimal place); press the right arrow key to go to the next
point:
The IN LED to the position OFF and the OUT LED to the position ON, 2 XXX,
which means that the output speed value is being programmed for point 2;
with the up/down arrow keys the value may be modified, within a range from
000 to MAXIMUM RPM; press the right arrow key to go to the next point:
The IN LED to the position ON and the OUT LED to the position OFF, 3 XXX,
which means that the input voltage value is being programmed for point 3;
with the up/down arrow keys the value may be modified, within a range from
00.0 to 10.0 (to one decimal place); press the right arrow key to go to the next
point:
The IN LED to the position OFF and the OUT LED to the position ON, 3 XXX,
which means that the output speed value is being programmed for point 3;
with the up/down arrow keys the value may be modified, within a range from
000 to MAXIMUM RPM; press the right arrow key to go to the next point:
The IN LED to the position ON and the OUT LED to the position OFF, 4 XXX,
• If, at any point, the maximum value for Vin = 10 V is entered, the
corresponding values for Vin and RPM at higher points will be
automatically updated according to the value for this point.
• If, at any point, the maximum value is entered, that is, RPM =
MAXIMUM RPM, the corresponding values for RPM at higher points will
be automatically updated to MAXIMUM RPM.
