Meler B4 VS - Air Drying System (Optional)

FOCKE MELER GLUING SOLUTIONS
8-2

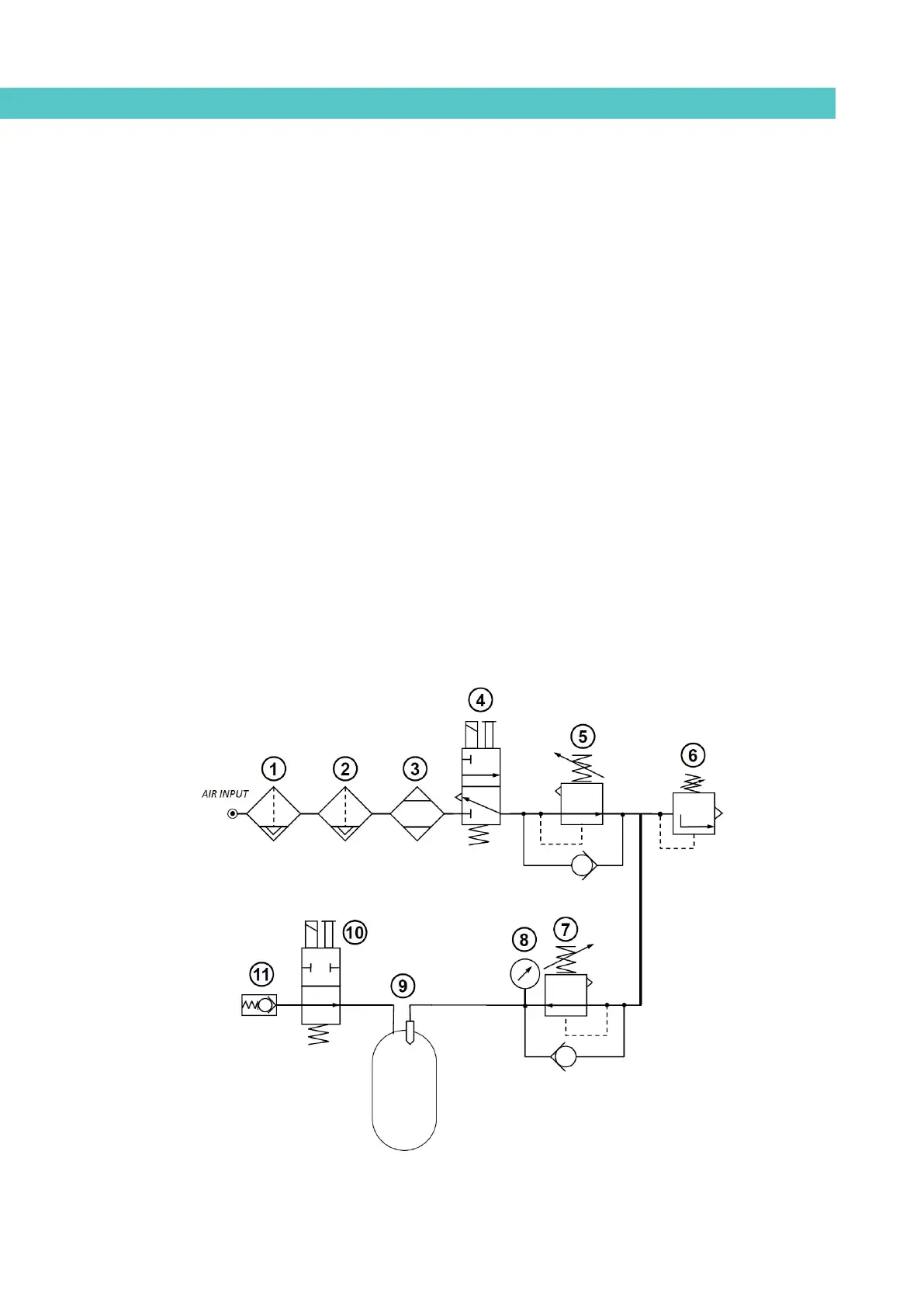

PNEUMATIC DRAWINGS
Air drying system (optional)
- 1 Filter– 1st stage
Solids/ Oil 5µ < 1ppm
- 2 Filter – 2nd stage
Solids/ Oil 0,01µ < 0,01ppm
- 3 Membrane dryer (Dry air 99,98%)
- 4 3/2 solenoid valve
- 5 Pressure regulator 1-10 bar
- 6 Pneumatic relief valve 0,5 bar
- 7 Pressure regulator 0.1- 0.7 bar
- 8 Pneumatic gauge 0-1.6 bar
- 9 Input pipe
- 10 2/2 output solenoid valve
- 11 Non-return valve 0,5 bar
