MA-5162-ENG MICRON
+
PISTON ADHESIVE MELTERINTRODUCTION
2-3

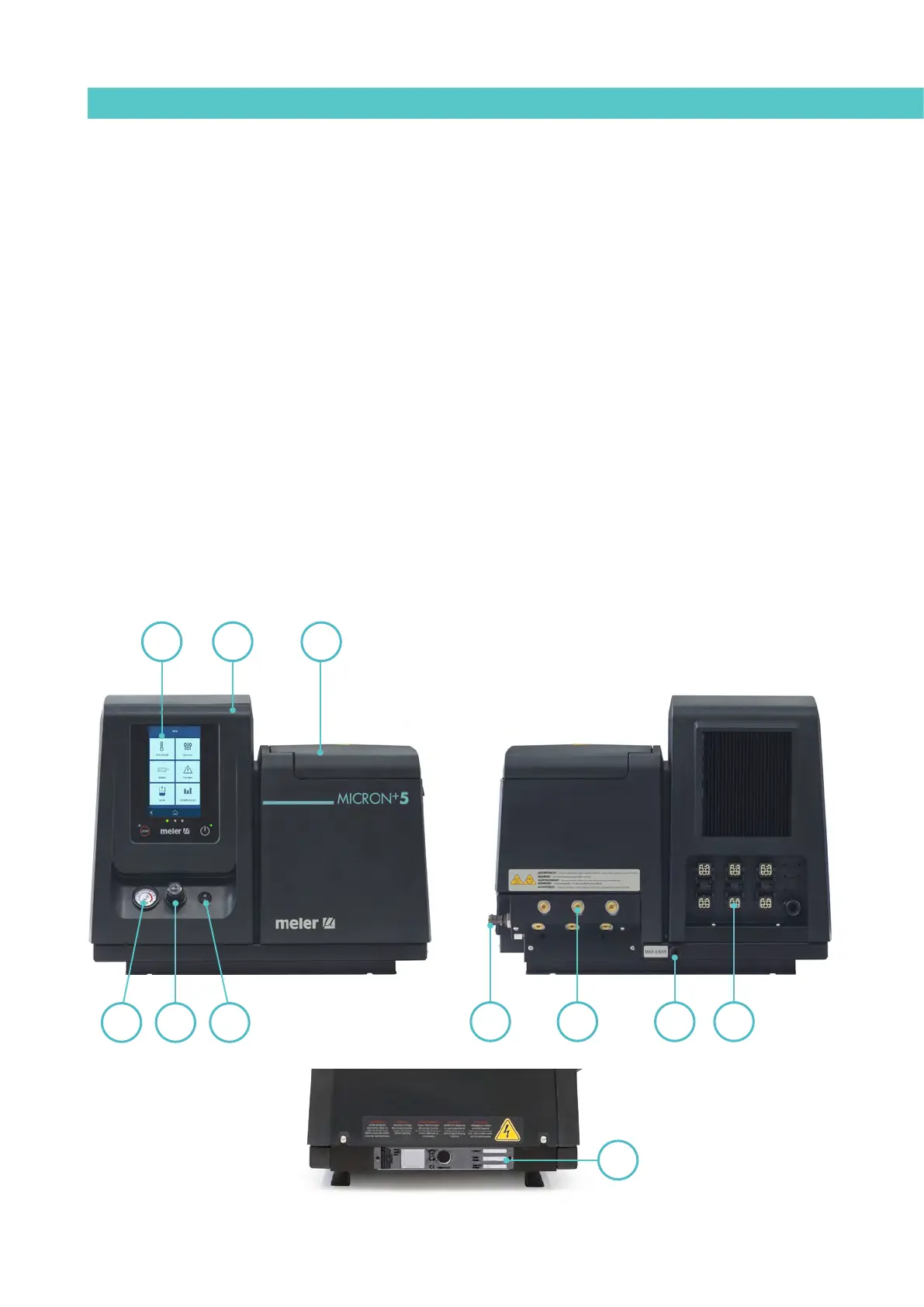

Main components
1. Front control card
2. Access door to the electric/pneumatic area
3. Tank access lid
4. Pump air pressure regulator
5. Air pressure gauge
6. Characteristics plate
7. Main switch
8. Hose output distributor (up to 6 hydraulic connections)
9. Hose-applicator electrical connections
10. Compressed air hook-up (Max. 6 bar)
11. Set of pump drain valve and filter.
11
1 2
11 8 10 9
3
6
4 75
