Meler Micron + 10 - PNEUMATIC UNIT ASSEMBLY 7 Cc

MA-5162-ENG MICRON
+
PISTON ADHESIVE MELTERSPARE PARTS LIST
9-7

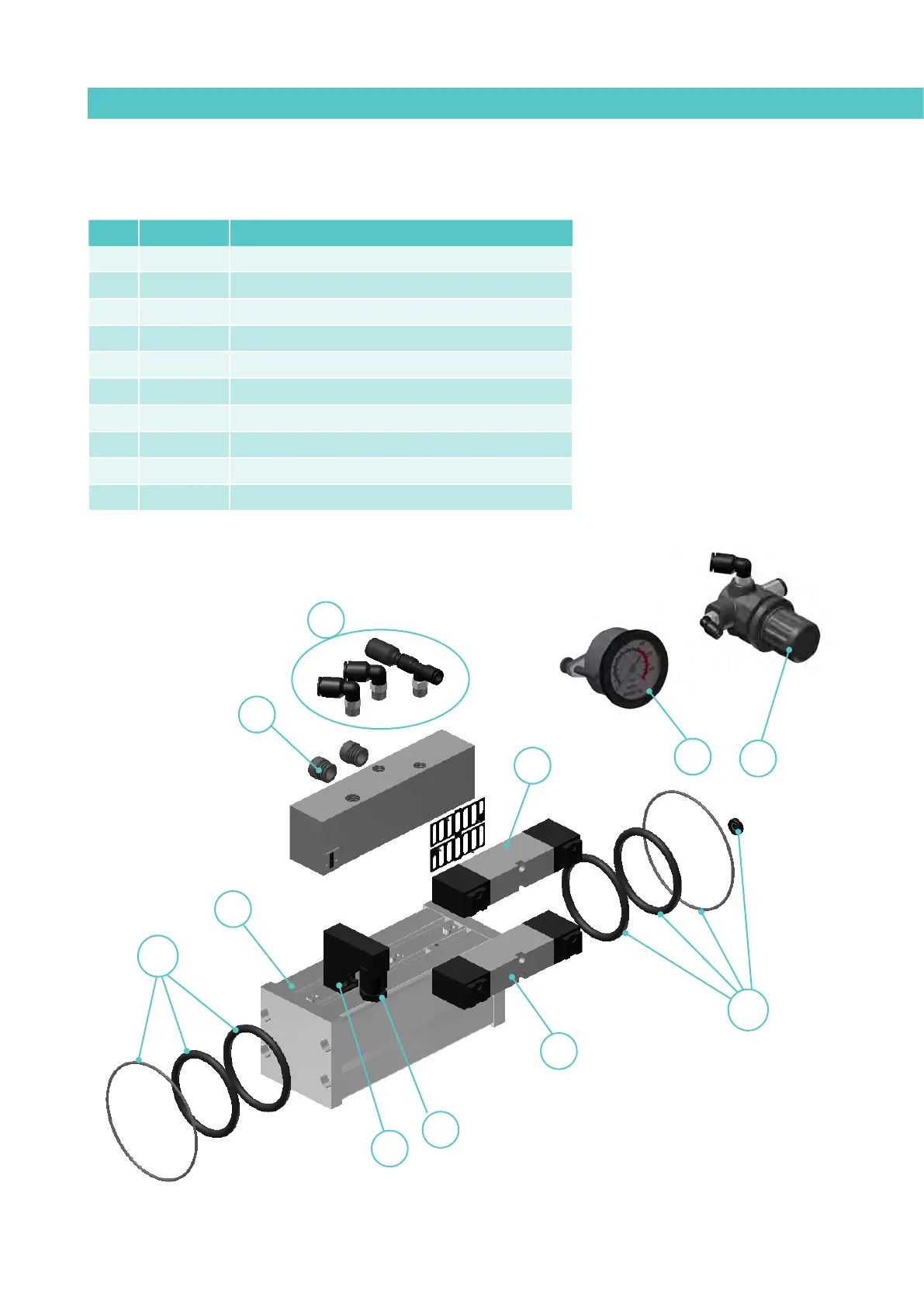

D. PNEUMATIC UNIT ASSEMBLY 7cc
Nº Ref. Description
1 150123120 Pneumatic unit assembly with filter 7cc 24VDC
2 150113650 1/4’ flat silencer
3 150114480 Pressure gauge
4 10110031 Pressure regulator
5 150113690 Connector kit for 7cc pump unit without VP
6 150020490 Differential valve with o-ring
7 150020500 Control valve with o-ring
8 150123650 Inlet solenoid valve (24V DC)
9 150020630 Connector 2P+T 15x15
10 150020580 O-ring kit of pneumatic cylinder 7cc
5
2
1
6
4
8
9
7
10
10
3
