MA-5162-ENG MICRON
+
PISTON ADHESIVE MELTERINSTALLATION
3-3
Generally speaking, we can provide as a maximum consumption value 40-50
l/min for a pressure of 6 bar at maximum pump speed.
Other factors
While installing ‘MICRON+’ series melters/applicators, other practical
considerations should be kept in mind:
• Keep the load opening accessible for comfortable melter/applicator
filling.
• Position the melter/applicator equipment in such a way that you can
easily see the front panel display where temperatures and possible
alarm signals are shown.
• As much as possible, try to avoid unnecessarily long hoses that result
in elevated electrical energy consumption levels and pressure drops.
• Do not install the melter/applicator equipment beside powerful heat or
cooling sources that may have distortional effects upon its operation.
• Avoid melter/applicator vibrations.
• Make sure that the melter/applicator maintenance areas (filter, purging
valve, tank interior, etc.) are easily accessible.
Unpacking
Before proceeding with the installation of the melter/applicator, it should be
removed from its location on a pallet and examined in order to detect any
possible breakage or deterioration. Communicate any defect, even to the outer
packing materials, to your ‘meler’ Representative or to the Main Office.
Contents
The ‘MICRON+’ series packing materials may contain accessories that form
part of the same order. If this is not the case, the following are the standard
components that accompany the melter/applicator:
• Instruction manual.
• Guarantee card.
• Hose couplings.
• Set connectors for Inputs / Outputs.
Mounting the equipment

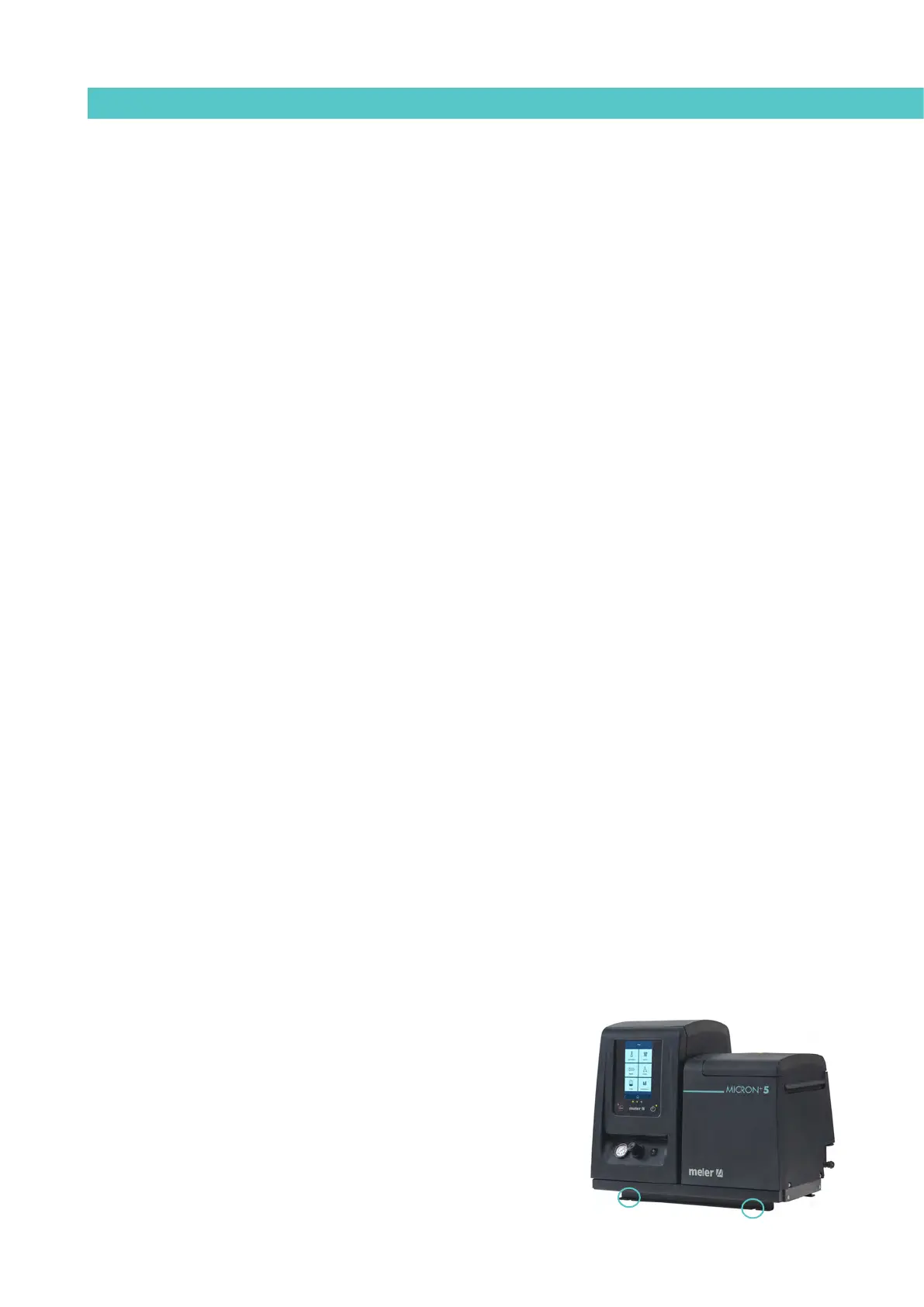

For mounting the ‘MICRON+’ series set the base in the desired location using
the indicated holes M8 screws.
The ‘MICRON+’ series equipments have an optional adaptation plate for fixing
‘MICRON+’ 5, 10, 20, 35 and previous ‘MICRON’ range 4, 8, 16, 32 and ST
machines. To mount the base plate, place it on the machine bench and adjust
its position. Mark and drill the four holes for the base plate’s M8 fastening
screws. The holes may be threaded or non-threaded, depending on the bench
to which they are being attached.
