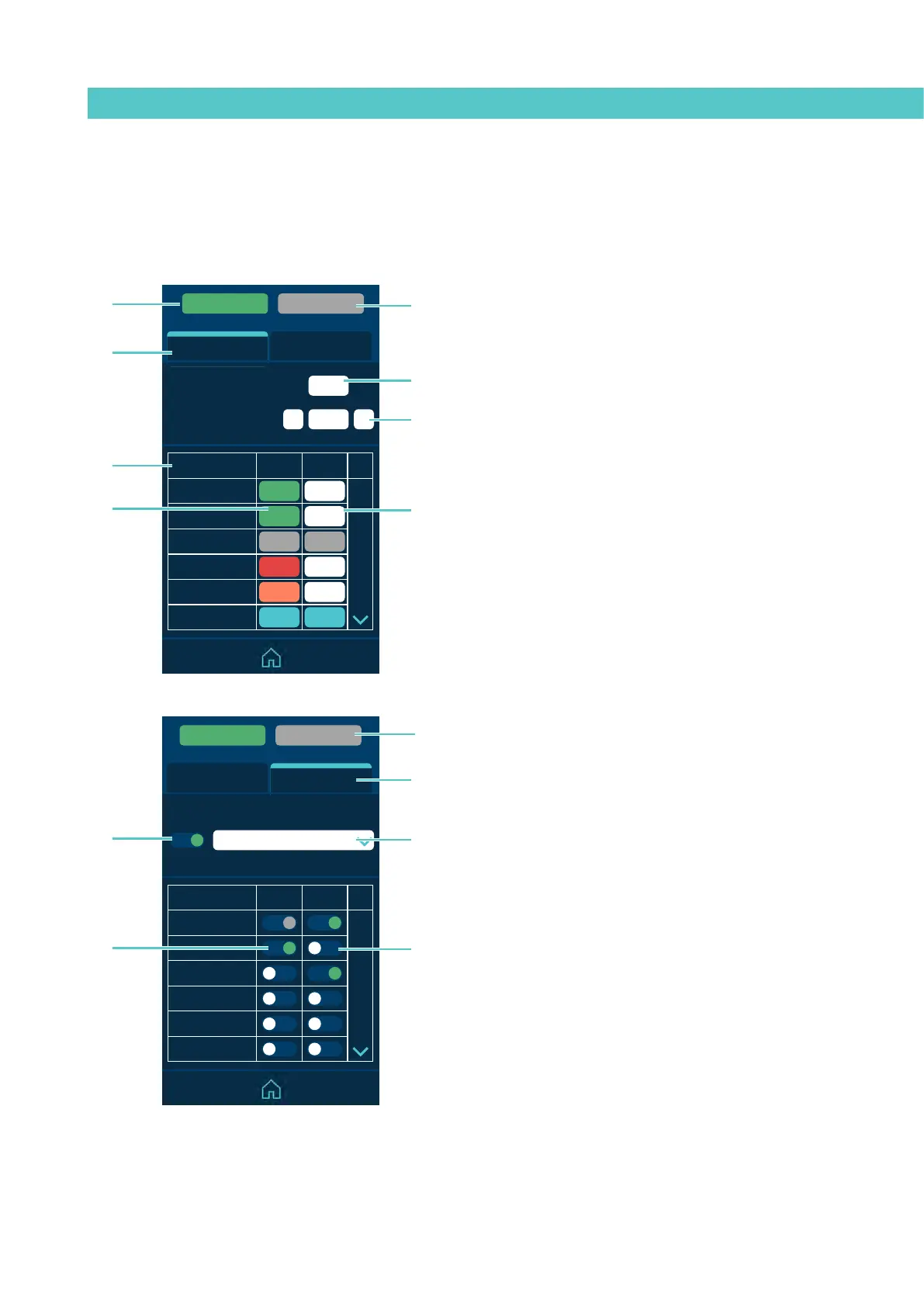

Temperature and Heating Shortcut displays
These screens give you access to the unit’s quick settings.
A - General standby of the unit (activate/deactivate).
B - General inhibition of the unit (activate/deactivate).
C - Programming of temperatures.
D - General set point temperature (all zones).
E - Temperature variation over the set point.
F - Temperature zones (14 zones).
G - Actual temperature.
H - Set point or control temperature.
• Unit ON: Setpoint temperature.
• Unit or Component on Standby: Standby
Temperature.
• Component Disabled: OFF
I - Programming of zone statuses.
J - Inhibition/activation by groups of zones.
K - Group selection.
L - Activation of Standby in each zone.
M - Activation of Inhibition in each zone.
MICRON+ PISTÓN
Group OFF
OFF Group: 1
Temperature State
Area Standby OFF
T: Tank
D: Distributor
1.1: Hose 1
1.2: Applicator 1
2.1: Hose 2
2.2: Applicator 2
General Standby General OFF
MICRON+ PISTÓN
150
5
+
-
General Variation
General Set-Point
General Standby General OFF
Temperature State
Area Real Set Point
T: Tank
152 150
D: Distributor
150 150
1.1: Hose 1
49 OFF
1.2: Applicator 1
170 155
2.1: Hose 2
130 145
2.2: Applicator 2
100 100
A
C
F
B
D
E
G
I
J
K
L
M
H
Green: activated. Grey: deactivated
