Meler Micron + 10 - Automatic Feeder. Suction Tube

MA-5162-ENG MICRON
+
PISTON ADHESIVE MELTERSPARE PARTS LIST
9-13

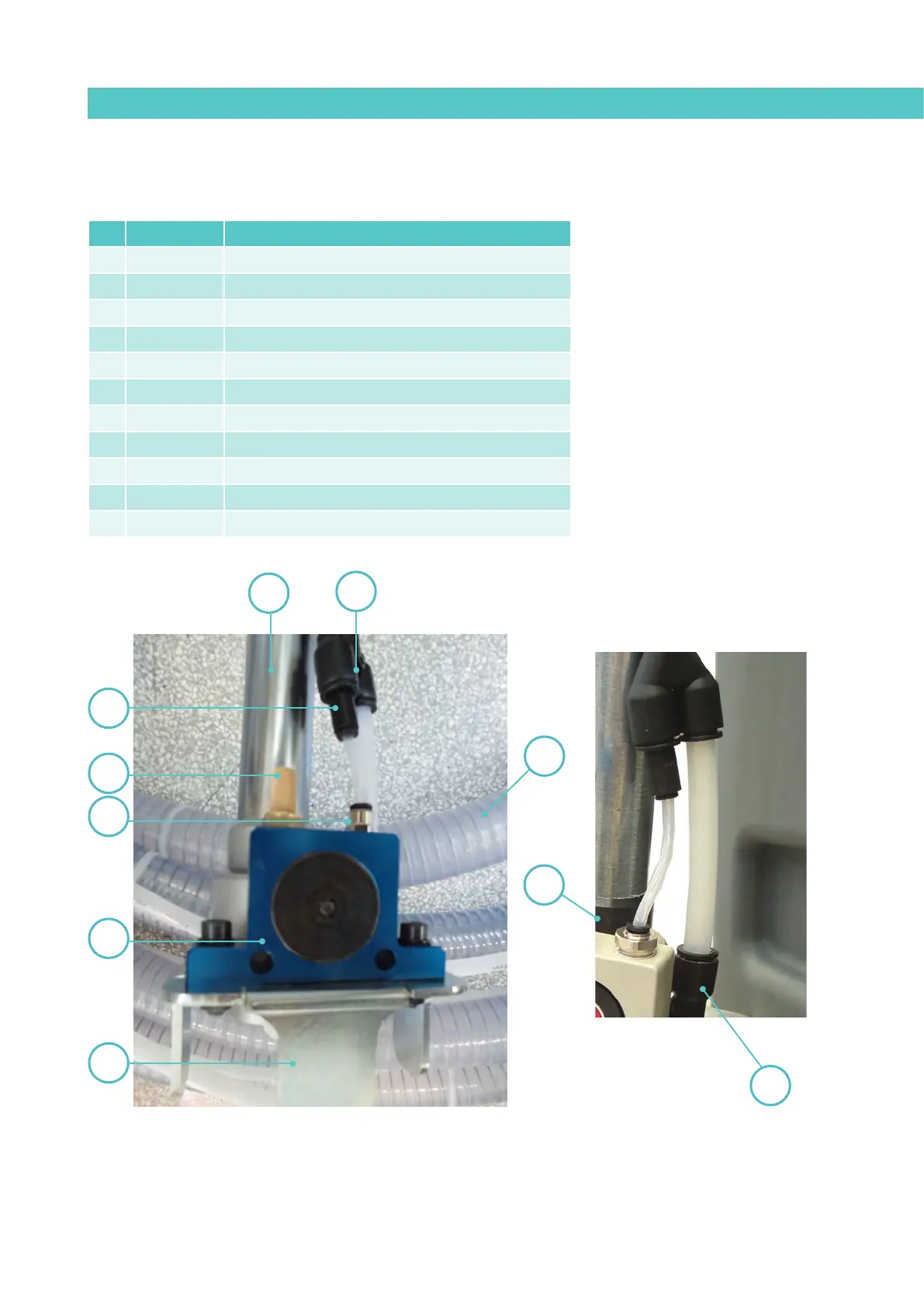

I. AUTOMATIC FEEDER. SUCTION TUBE
Nº Ref. Description
1 150025650 Fitting Y Ø10 quick plug
2 150025660 Hose vacuum feeder Ø30 (meter)
3 150025670 Metal suction tube
4 150025680 Venturi suction tube
5 150025690 Support for suction tube
6 150025700 Fitting 90° 3/8 Ø10 quick plug
7 150025710 Pneumatic vibrator vacuum feeder
8 21300000 Silencer
9 150110180 Straight fitting 1/8 Ø4 quick plug
10 150025740 Reduction Ø10-Ø4 quick plug
150025810 Complete suction tube vacuum feeder
10
6
2
7
5
9
8
1
3
4
