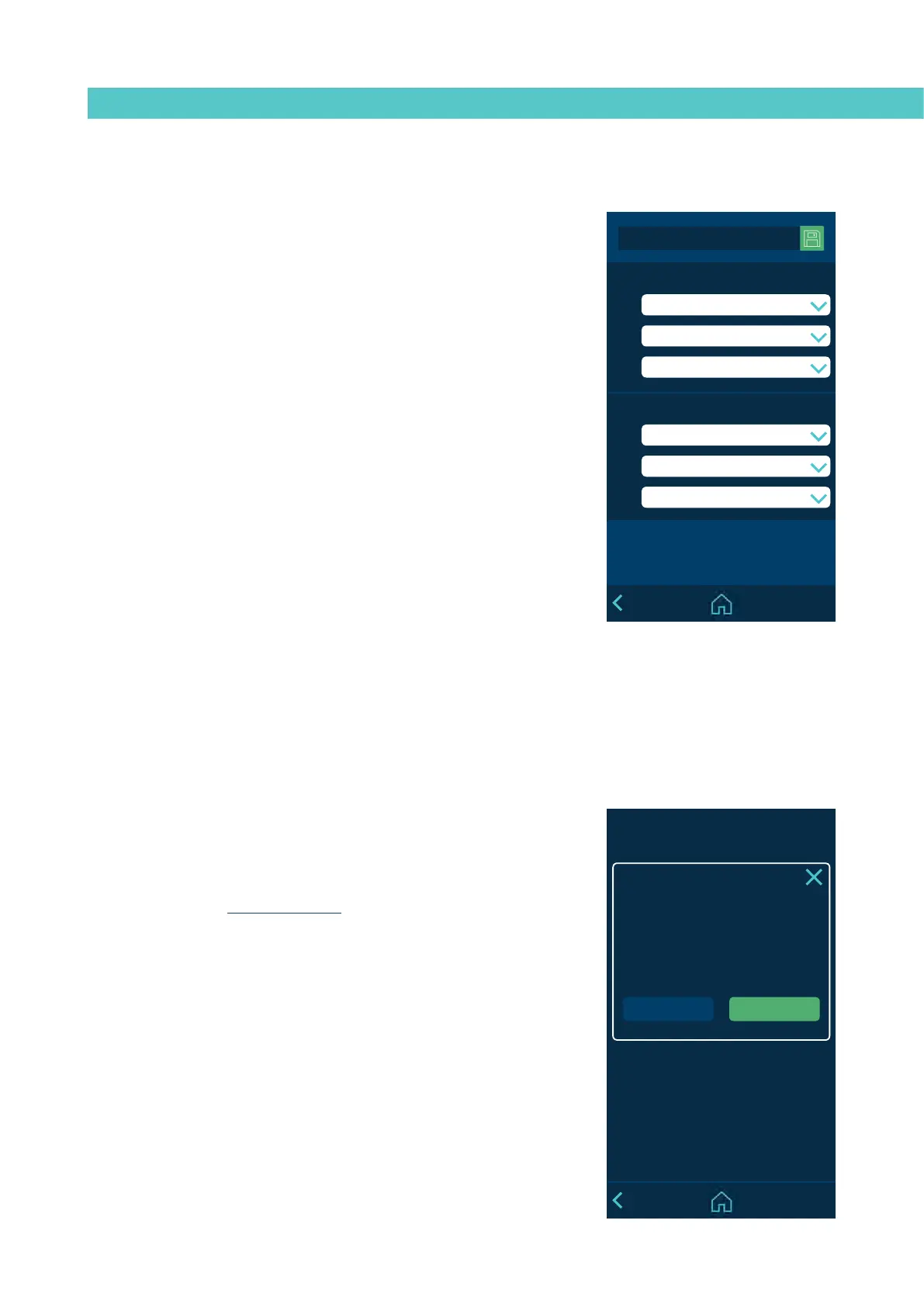

2.3 Configuration of input and output signals
This allows you to configure the unit’s digital input and output signals.
The inputs can be:
• ON/OFF: Switches the unit fully off or on.
• Standby: Activates or deactivates the Standby mode.
• Activity: Enables the activity control to measure the times for switching
automatically to Standby and OFF.
• Pumping: Activates or deactivates the pumping.
• COMM.: Activates or deactivates the communications.
The outputs can be:
• Level: Indicates a low level of adhesive in the tank.
• Pumping: Indicates that pumping is activated.
• Temperature OK: Indicates that the melter status is OK for pumping.
• Error: Indicates that there is an active Alarm.
• Level NOT OK (Warning Light): It activates the warning light of low
adhesive level in the tank.
2.4 Restore default values
Allows you to delete all the changes made to the system and leave the
unit with the factory-set default parameters. After pressing, the following
confirmation message will appear.
When you press ‘YES’, the device restarts with the default configuration.
