Meler Micron + 10 - Distributor Unit

MA-5162-ENG MICRON
+
PISTON ADHESIVE MELTERSPARE PARTS LIST
9-5

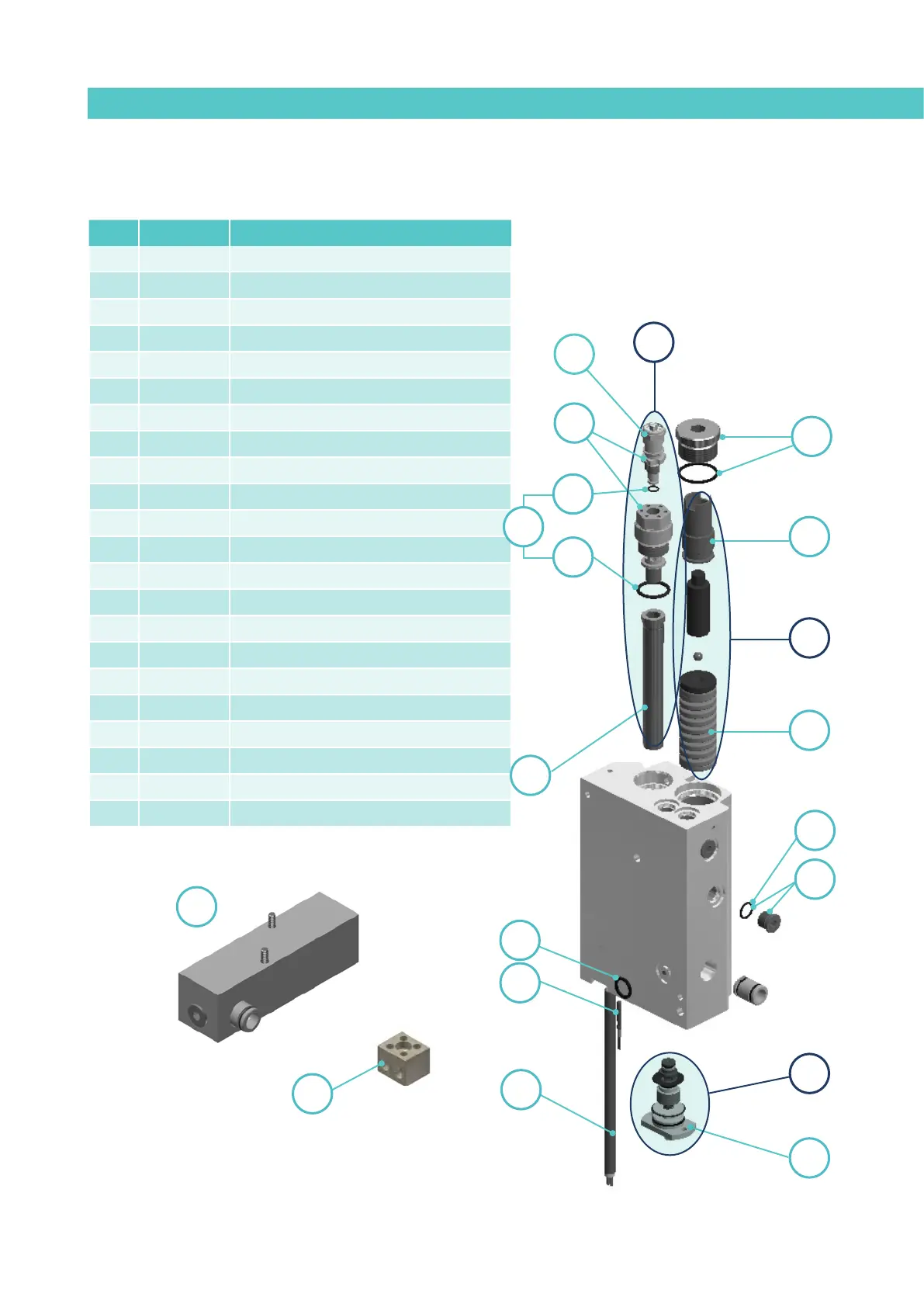

B. DISTRIBUTOR UNIT
Nº Ref. Description
1 150026350 Heating element 300 W
2 10120032 Tank-distributor seating o-ring
3 150121390 Distributor filter assembly
3.1 150121380 Filter head with purger
3.2 150029250 Filter mesh 50
3.3 150029260 O-ring 23 x 3
3.4
150026340
O-ring 7 x 1.5
3.5
150121350
O-rings filter assembly kit
3.6
150026330
Complete purger
4 150021820 Compensation valve assembly
4.1 150021830 Compensation valve piston/plunger assembly
4.2 10100096 Compensation valve spring
5 150022110 Compensation valve plug with O-ring
6 150024750 Depressurisation valve assembly
6.1 150024760 Pressure discharge valve o-rings
7 10100082 Pump plug with o-ring
7.1 10100083 Pump o-ring
8 150130370 Sensor Pt100
8 150130360 Sensor Ni120
8 150123150 Sensor NTC-R
9 150114940 Distributor- pump union micron 35
10 10030007 Current connection strip
6
5
6.1
3.3
4.2
4
4.1
3.2
1
2
3.4
8
3.1
3
3.5
3.6
7
7.1
9
10
