CHARGING AND STARTING SYSTEM
Page 2B-24 90-828631R3 MARCH 1999

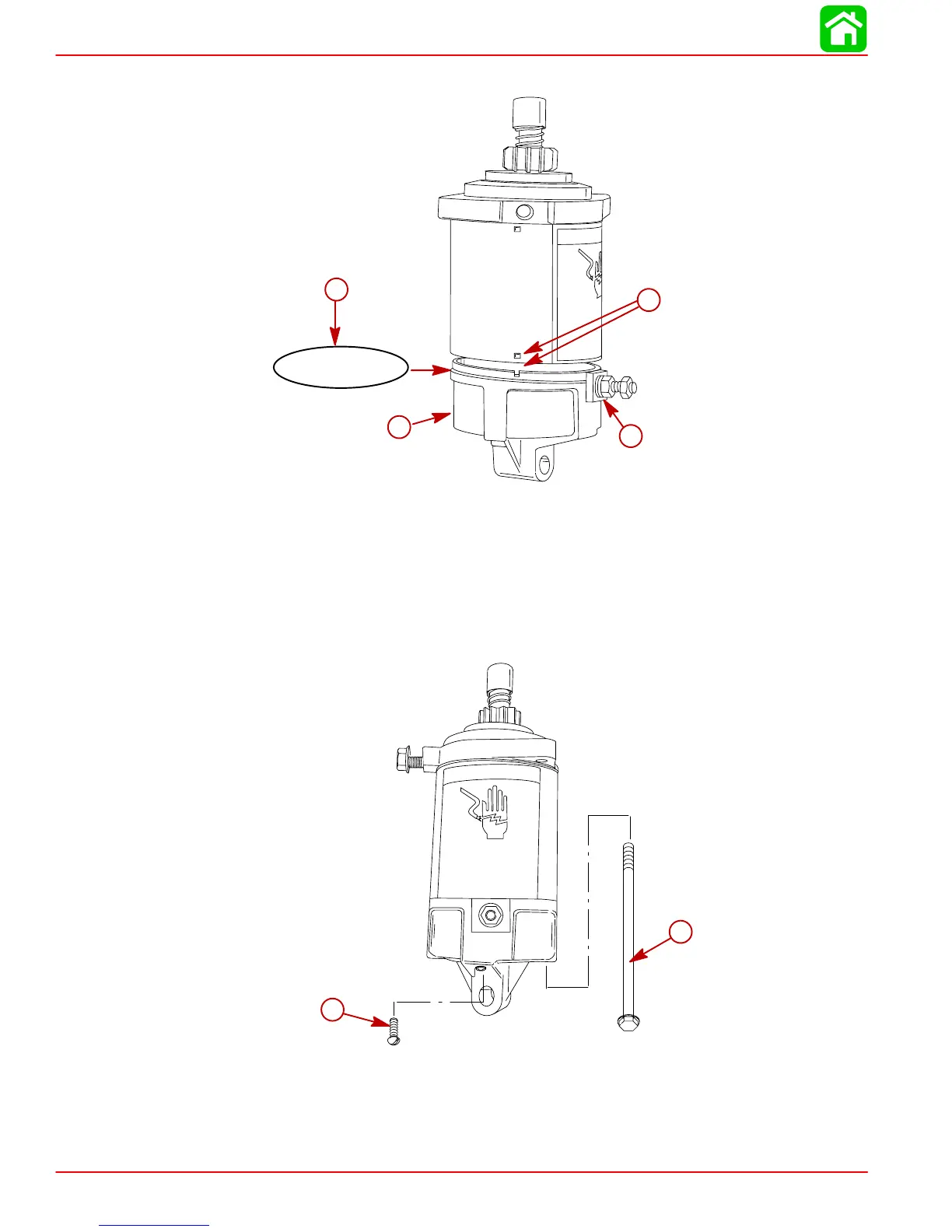

6. Install rear bracket. Insert wire insulator into slot and align projection with cut in bracket.
53832
d
c
a
b
a-O-Ring Seal
b-Wire Insulator
c-Align Projection with Cut in the Rear Bracket
d-Rear Bracket
7. Fasten brush card to rear bracket with two screws.
8. Fasten the starter motor together with two through bolts.
53834
a
b
a-Screw (2) Fasten Brush Card In-Place
b-Through Bolts (2)
