5. Construct a brush retainer tool as shown.

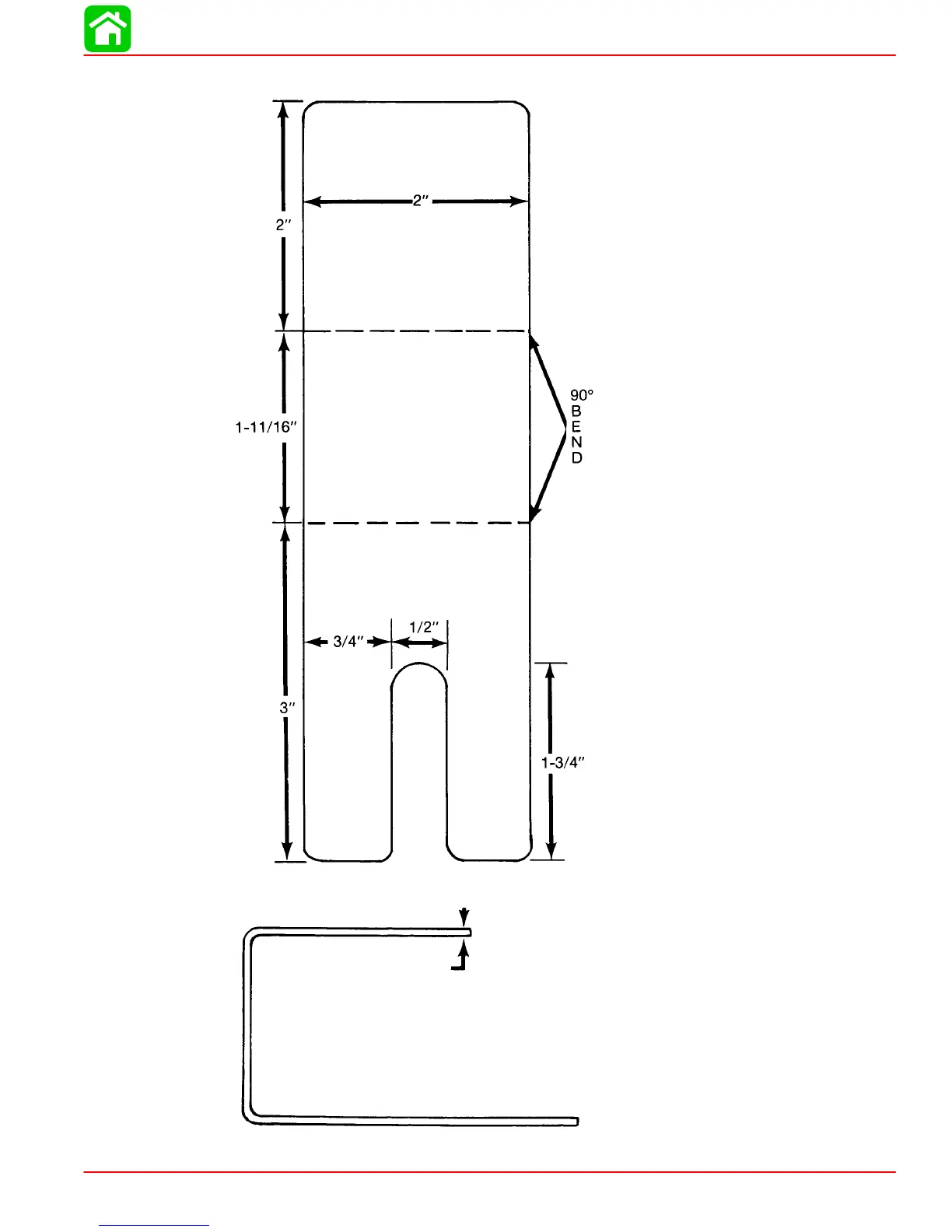

Brush Retainer Tool Layout (Full Size)
18-Gauge Sheet Metal
METRIC
SCALE
3”
2”
1-3/4”
1-11/16”
3/4”
1/2”
= 76.2mm
= 50.8mm
= 44.5mm
= 42.9mm
= 19.1mm
= 12.7mm
Brush Retainer Tool Side View (Full Size)
